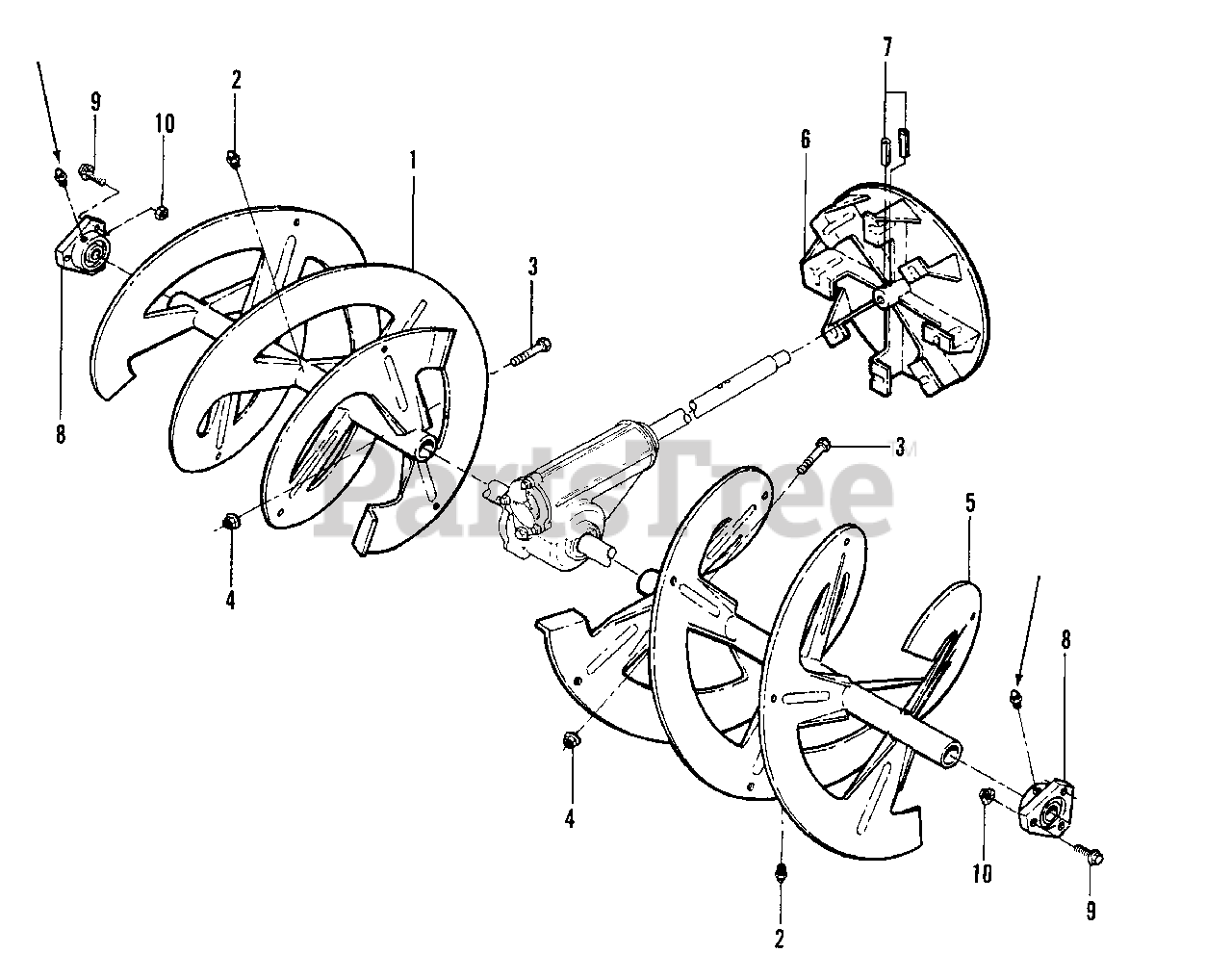

38LTST1 (7080560) - Snapper 38" Snow Thrower Attachment Impeller Augers, 38" Parts Diagram

38" Snow Thrower Attachment

Impeller Augers, 38" Parts Diagram

  • Title
1

Snapper 7049786

AUGER, Right Side
(Superseded to 7049786YP)

$569.99

$

Usually ships in 2-12 days

0

2

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

3

Snapper 7013865

BOLT, 5/16-18 x 1-7/8" Shear
(Superseded to 7091550YP)

$

$

Not available

4

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

5

Snapper 7049785

AUGER, Left Side
(Superseded to 7049785YP)

$609.99

$

Usually ships in 2-12 days

0

6

Snapper 7049770

FAN, Impeller

$

$

Currently unavailable

7

Snapper 7015395

PIN, Drive Lock
(Superseded to 7015395YP)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7051350

BEARING, Auger Shaft
(Superseded to 7051350YP)

Note: (Includes P/N 1-0817 Grease Fitting)

$35.99

$

Usually ships in 2-12 days

0

9

Snapper 7090699

BOLT, 1/4-20 x 3/4" Hex Flange Lock
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper 7091584

NUT, 1/4-20 Hex Flange
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 10

0
