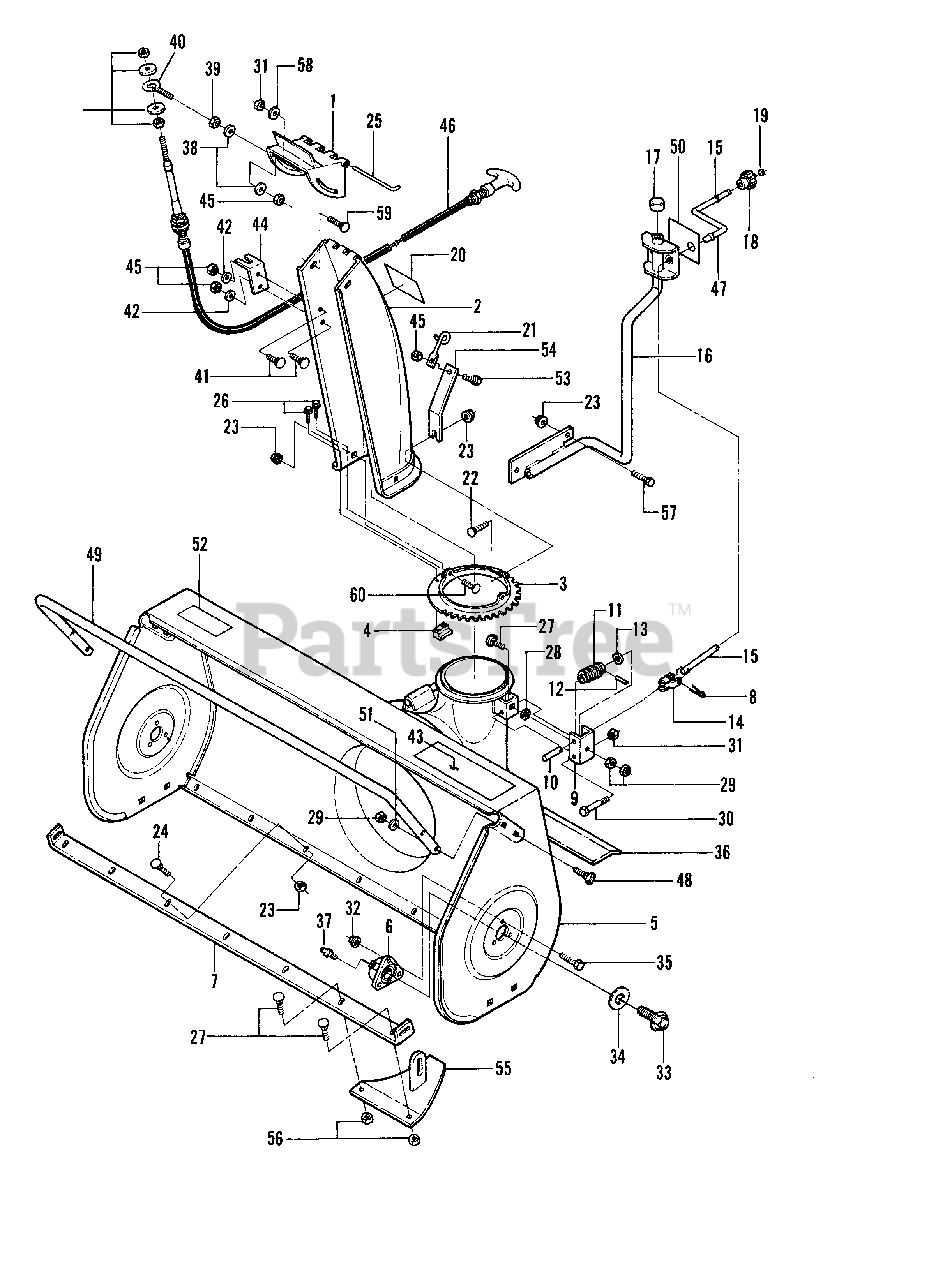

38LTST1 (7080560) - Snapper 38" Snow Thrower Attachment Blower & Discharge (Front) Parts Diagram

38" Snow Thrower Attachment

Blower & Discharge (Front) Parts Diagram

  • Title
1

Snapper 17066

DEFLECTOR, Discharge Chute

$

$

Currently unavailable

2

Snapper 7052137

ASSEMBLY, Discharge Chute
(Superseded to 7072881SM)

$

$

Not available

3

Snapper 7047855

RING, Chute
(Superseded to 7047855YP)

$77.99

$

Usually ships in 2-12 days

0

4

Snapper 7011938

RETAINER (Chute Ring to Housing)
(Superseded to 7011938SM)

$

$

Not available

5

Snapper 7052010

ASSEMBLY, Housing

Note: (Includes Decals)

$

$

Currently unavailable

6

Snapper 7051350

BEARING, Auger Shaft
(Superseded to 7051350YP)

Note: (Incls. P.N. 1-0817 Grease Fitting)

$35.99

$

Usually ships in 2-12 days

0

7

Snapper 7036260

BLADE, Scraper
(Superseded to 7036260YP)

$58.99

$

Usually ships in 2-12 days

0

8

Snapper 7091598

PIN, 1/8 x 1" Cotter
(Superseded to 703958)

Note: Was 90041

$4.49

$

In Stock, only 4 left!

0

Snapper 7051773

ASSEMBLY, Worm Bracket

Note: (Includes items 9 thru 14)

$

$

Currently unavailable

9

Snapper 7037963

BRACKET, Worm
(Superseded to 7037963YP)

$15.99

$

Usually ships in 2-12 days

0

10

Snapper 7021852

SHAFT, Worm

$

$

Not available

11

Snapper 7021828

WORM
(Superseded to 7028348SM)

$22.99

$

Usually ships in 2-12 days

0

12

Snapper 7014001

PIN, 1/8 x 3/4" Roll
(Superseded to 7014001SM)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7011079

WASHER, Spring
(Superseded to 7011079YP)

$4.99

$

In Stock, Qty 20+

0

14

Snapper 7032126

CONNECTOR

$

$

Not available

15

Snapper 7014671

CRANK, Chute
(Superseded to 7014671YP)

$39.99

$

Usually ships in 2-12 days

0

16

Snapper 7041577

BRACE, Chute Crank
(Superseded to 7041577YP)

$233.99

$

Usually ships in 2-12 days

0

17

Snapper 7010153

CAP, Crank Brace
(Superseded to 7010153YP)

$4.49

$

In Stock, only 3 left!

0

18

Snapper 7013901

KNOB, Chute Crank
(Superseded to 7013901YP)

$8.99

$

Usually ships in 2-12 days

0

19

Snapper 7091575

NUT, 5/16-18 Hex Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 20+

0

20

Snapper 7024773

DECAL, Danger
(Superseded to 7024773YP)

$13.99

$

Usually ships in 2-12 days

0

21

Snapper 7022779

BRACKET, Pull Rope
(Superseded to 7022779YP)

$7.49

$

Usually ships in 2-12 days

0

22

Snapper 7090316

BOLT, 5/16-18 x 3/4" Short Neck (Grade 5)
(Superseded to 703225)

Note: Was 91097

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

24

Snapper 7091508

BOLT, 5/16-18 x 3/4" Carriage
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 20+

0

25

Snapper 7015138

PIN, Hinge

$

$

Not available

26

Snapper 7091075

SCREW, #10-24 x 5/8" Self-Tapping
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

27

Snapper 7091303

BOLT, 5/16-18 x 1" Carriage
(Superseded to 703800)

Note: Was 90383

$3.99

$

In Stock, Qty 12

0

28

Snapper 7011791

RETAINER, 5/16 Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

30

Snapper 7090246

SCREW, 5/16-24 x 2-1/2" Hex Head Cap
(Superseded to 7090246YP)

$3.49

$

Usually ships in 2-12 days

0

31

Snapper 7091606

NUT, 5/16-24 Hex Lock
(Superseded to 703896)

Note: Was 91074

$3.49

$

In Stock, Qty 20+

0

32

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 9

0

33

Snapper 7090815

SCREW, 3/8-16 x 3/4" Self-Tapping
(Superseded to 703950)

$5.49

$

In Stock, only 1 left!

0

34

Snapper 7013866

WASHER, 3/8" Flat
(Superseded to 7013866YP)

$6.49

$

Usually ships in 2-12 days

0

35

Snapper 7090699

BOLT, 1/4-20 x 3/4" Hex Flange Lock
(Superseded to 1935450SM)

$4.49

$

Usually ships in 2-12 days

0

36

Snapper 7038408

BAR, Stiffener

$

$

Currently unavailable

37

Snapper 7010817

FITTING, Lube (Press fit for .187 hole-no ball)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

38

Snapper 7091098

WASHER, 1/4 Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

39

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 91100

$3.49

$

In Stock, Qty 20+

0

40

Snapper 7023798

BOLT, 1/4-20 Eye
(Superseded to 7023798SM)

$3.49

$

In Stock, only 2 left!

0

41

Snapper 7091064

BOLT, 1/4-20 x 1/2" Carriage
(Superseded to 7091064YP)

$3.99

$

In Stock, only 3 left!

0

42

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 7

0

43

Snapper 7028280

DECAL, SAFETY Instruction

$

$

Not available

44

Snapper 7032813

MOUNT, Cable
(Superseded to 7032813SM)

$18.99

$

Usually ships in 2-12 days

0

45

Snapper 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)

Note: Was 91099

$

$

Not available

46

Snapper 7022803

CABLE, Control
(Superseded to 7045172SM)

$

$

Not available

47

Snapper 7012117

BUSHING
(Superseded to 7012117SM)

$4.49

$

In Stock, Qty 13

0

48

Snapper 7023273

BOLT, 5/16-18 x 1-1/2" Curved Head

$

$

Currently unavailable

49

Snapper 7036262

CUTTER, Drift

$

$

Currently unavailable

50

Snapper 7023802

DECAL, Chute Control

$

$

Currently unavailable

51

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

52

Snapper 7024860

LOGO, SNAPPER

$

$

Currently unavailable

53

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap
(Superseded to 001X38MA)

Note: Was 79405

$4.49

$

In Stock, Qty 18

0

54

Snapper 7034088

BRACKET, Cable Guide Mounting

$

$

Not available

55

Snapper 7041575

SHOE, Skid
(Superseded to 7041575YP)

$102.99

$

Usually ships in 2-12 days

0

56

Snapper 7091505

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703432)

Note: Was 91062

$

$

Not available

57

Snapper 7091524

SCREW, 5/16-18 x 1-1/4" Self-Tapping
(Superseded to 703167)

Note: Was 91151

$3.99

$

In Stock, Qty 7

0

58

Snapper 7091076

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

59

Snapper 7091021

SCREW, 5/16-24 x 3/4" Hex Head Cap
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

60

Snapper 7091077

BOLT, 5/16-18 x 5/8" Carriage
(Superseded to 7091077YP)

$

$

Not available
