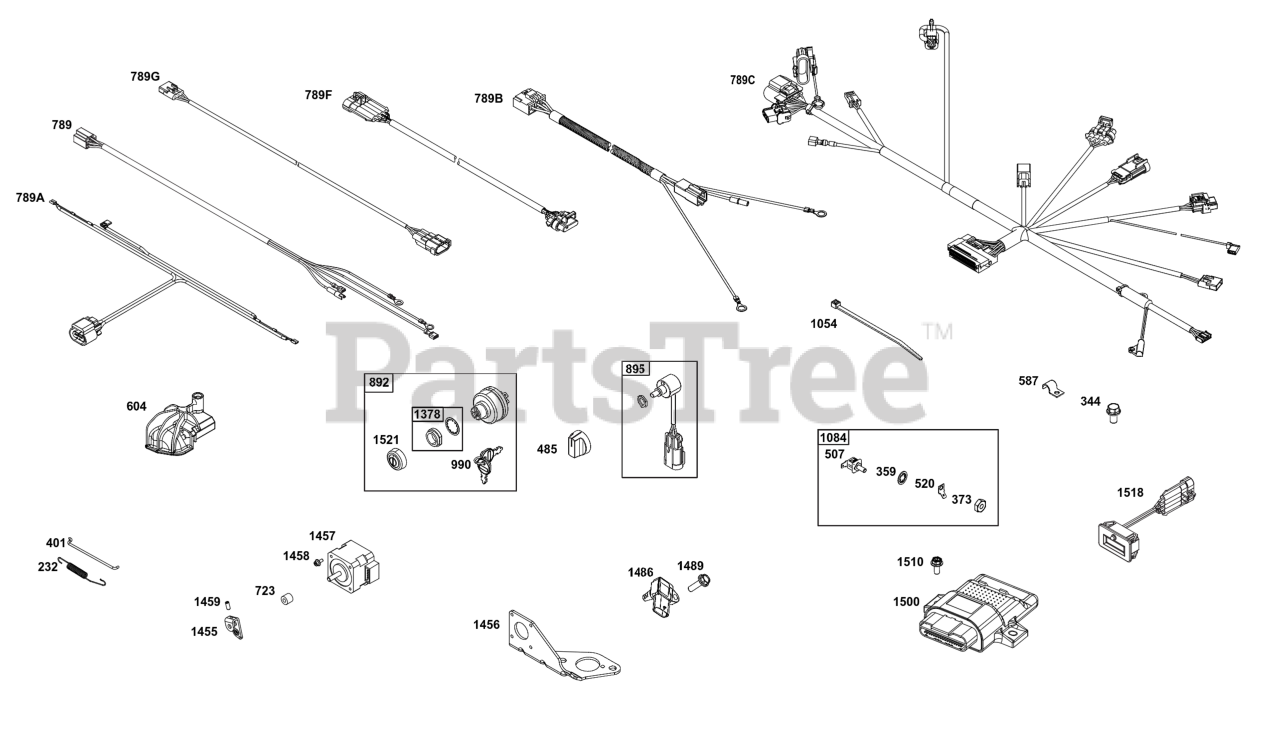

38E347-0019-G1 - Briggs & Stratton Horizontal Engine Controls Group Parts Diagram

Horizontal Engine

Controls Group Parts Diagram

  • Title

232

Briggs & Stratton 847470

SPRING-GOVERNOR

$6.49

$

Usually ships in 2-12 days

0

401

Briggs & Stratton 845814

LINK, Actuator

$10.99

$

Usually ships in 2-12 days

0

604

Briggs & Stratton 84001958

COVER, Control

Note: Stepper Motor

$31.99

$

Usually ships in 2-12 days

0

344

Briggs & Stratton 692056

SCREW

Note: (Cable Clamp)

$5.99

$

In Stock, Qty 5

0

359

Briggs & Stratton 691077

WASHER

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

Briggs & Stratton 845823

NUT

Note: (Ground Terminal)

$4.99

$

Usually ships in 2-12 days

0

485

Briggs & Stratton 84001962

KNOB, Control

$11.99

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 691972

INSULATOR

$8.49

$

In Stock, only 3 left!

0

520

Briggs & Stratton 691084

TERMINAL, Ground

$6.49

$

In Stock, only 2 left!

0

587

Briggs & Stratton 690423

CLAMP, Tube

$4.99

$

Usually ships in 2-12 days

0

723

Briggs & Stratton 845818

SEAL, Foam

$17.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 847924

HARNESS, Wiring

$27.99

$

Usually ships in 2-12 days

0

789A

Briggs & Stratton 847176

HARNESS, Wiring

$45.99

$

Usually ships in 2-12 days

0

789B

Briggs & Stratton 847023

HARNESS, Wiring

$85.99

$

Usually ships in 2-12 days

0

789C

Briggs & Stratton 848398

HARNESS, Wiring

$176.99

$

Usually ships in 2-12 days

0

789F

Briggs & Stratton 847017

WIRE ASSEMBLY

$64.99

$

Usually ships in 2-12 days

0

789G

Briggs & Stratton 848397

HARNESS, Wiring

$167.99

$

Usually ships in 2-12 days

0

892

Briggs & Stratton 847448

SWITCH, Key

$57.99

$

Usually ships in 2-12 days

0

895

Briggs & Stratton 84001961

SWITCH, Rotary

$74.99

$

Usually ships in 2-12 days

0

990

Briggs & Stratton 691959

KEY SET

$7.99

$

In Stock, Qty 8

0

1054

Briggs & Stratton 280275

TIE, Cable

$4.49

$

Usually ships in 2-12 days

0

1084

Briggs & Stratton 848341

CONNECTOR, Terminal

$9.99

$

Usually ships in 2-12 days

0

1378

Briggs & Stratton 847144

WASHER/NUT SET

$10.99

$

Usually ships in 2-12 days

0

1455

Briggs & Stratton 845813

LEVER, Actuator

$22.99

$

Usually ships in 2-12 days

0

1456

Briggs & Stratton 845815

BRACKET, Mounting

$74.99

$

Usually ships in 2-12 days

0

1457

Briggs & Stratton 847142

MOTOR, Stepper

$238.99

$

Usually ships in 2-12 days

0

1458

Briggs & Stratton 845812

SCREW

Note: (Stepper Motor)

$4.99

$

Usually ships in 2-12 days

0

1459

Briggs & Stratton 845820

SCREW

$4.99

$

Usually ships in 2-12 days

0

1486

Briggs & Stratton 593905

SENSOR, Temperature/Manifold Absolute Pressure (MAP)

$128.99

$

Usually ships in 2-12 days

0

1489

Briggs & Stratton 193626GS

SCREW

Note: (Temperature/Manifold Air Pressure Sensor)

$3.49

$

Usually ships in 2-12 days

0

1500

Briggs & Stratton 84001977

MODULE, Electronic Control

$272.99

$

Usually ships in 2-12 days

0

1510

Briggs & Stratton 807084

SCREW

Note: (Electronic Control Module)

$3.49

$

In Stock, Qty 7

0

1518

Briggs & Stratton 847016

TACHOMETER

$192.99

$

Usually ships in 2-12 days

0

1521

Briggs & Stratton 847150

CAP, Switch

$8.49

$

In Stock, Qty 16

0
