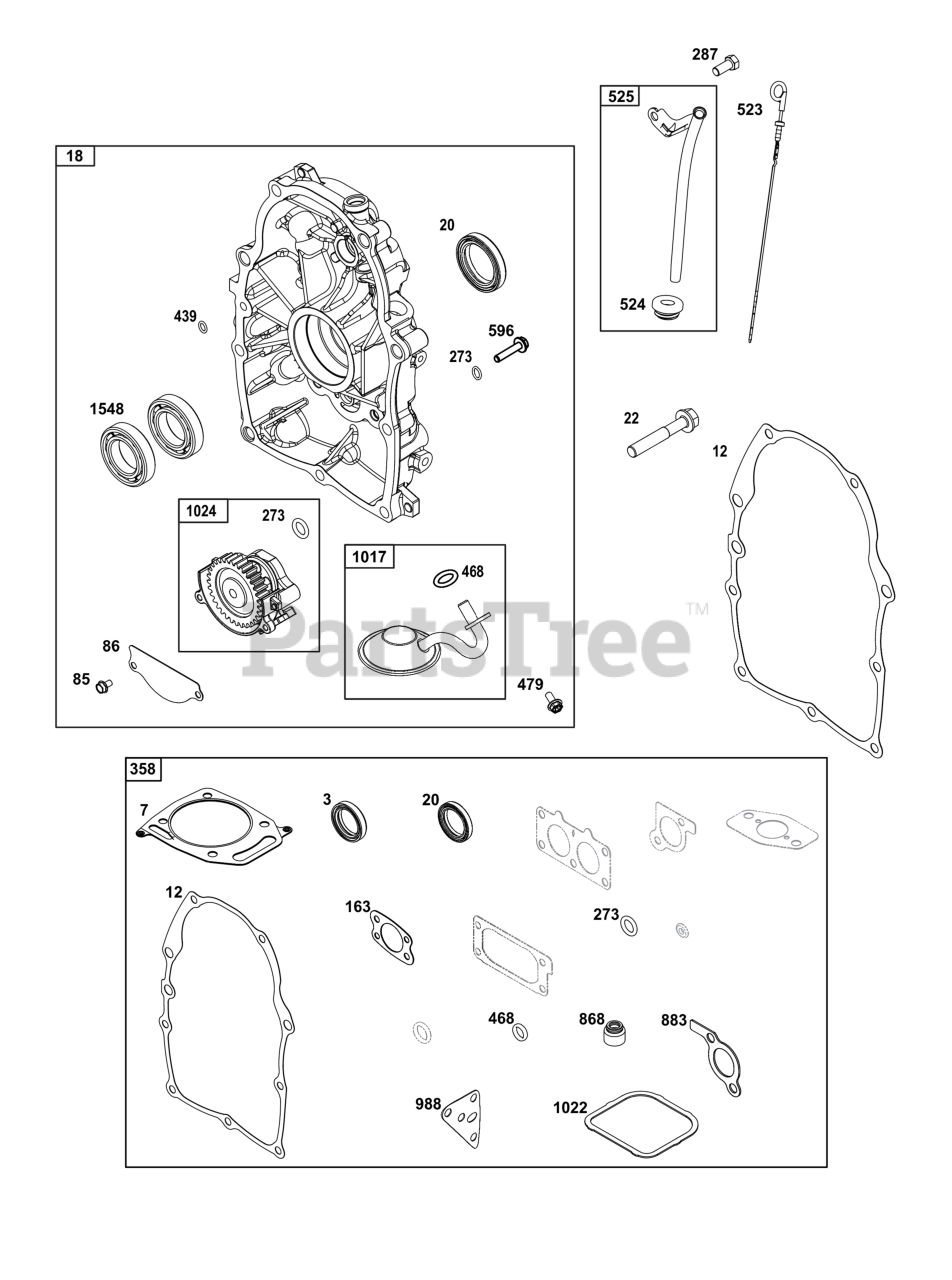

38E347-0014-B5 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump Group Parts Diagram

Horizontal Engine

Crankcase Cover/Sump Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

Briggs & Stratton 846487

GASKET, Crankcase

$41.99

$

In Stock, Qty 20+

0

18

Briggs & Stratton 84002117

COVER, Crankcase

$326.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 805049S

SEAL, Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 807362

SCREW

Note: (Crankcase Cover/Sump) (M8x50mm)

$3.49

$

In Stock, Qty 6

0

85

Briggs & Stratton 841233

SCREW

Note: (Gear Cover) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0

86

Briggs & Stratton 690745

COVER, Gear

$6.49

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

273

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

287

SCREW

Note: (Part information located in Lubrication Group.)

$

$

Not available

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

439

O-RING, Oil Gallery

Note: (Part information located in Lubrication Group.)

$

$

Not available

468

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

479

SCREW

Note: (Part information located in Lubrication Group.)

$

$

Not available

523

DIPSTICK

Note: (Part information located in Lubrication Group.)

$

$

Not available

524

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

525

TUBE, Dipstick

Note: (Part information located in Lubrication Group.)

$

$

Not available

596

SCREW

Note: (Part information located in Lubrication Group.)

$

$

Not available

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

988

GASKET, Oil Adapter

Note: (Part information located in Lubrication Group.)

$

$

Not available

1017

SCREEN, Oil Pump

Note: (Part information located in Lubrication Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1024

PUMP, Oil

Note: (Part information located in Lubrication Group.)

$

$

Not available

1548

Briggs & Stratton 843827

BEARING, Ball

Note: (Crankcase Cover/Sump)

$36.99

$

In Stock, only 3 left!

0
