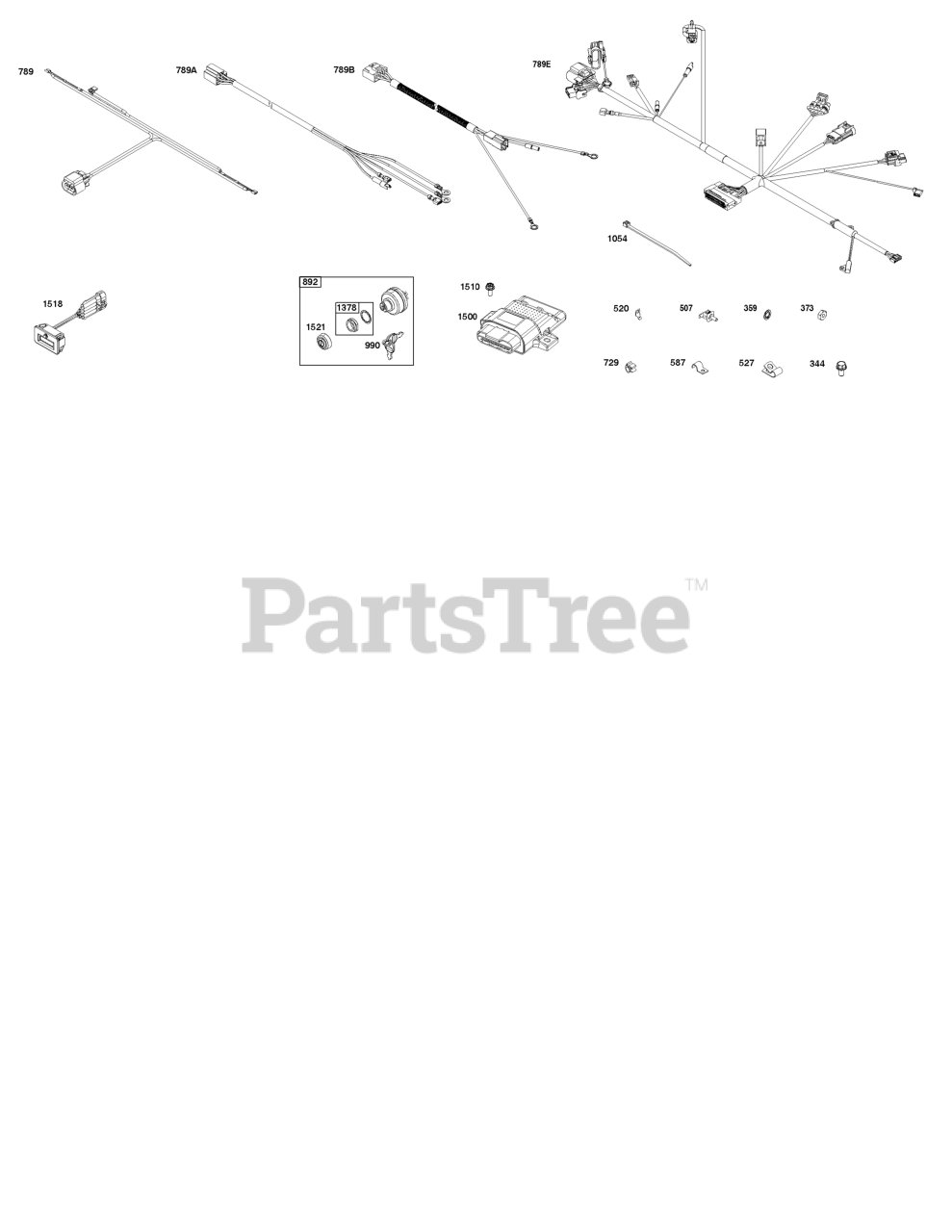

38E347-0003-G1 - Briggs & Stratton Horizontal Engine Controls Group Parts Diagram

Horizontal Engine

Controls Group Parts Diagram

  • Title

344

Briggs & Stratton 692056

SCREW

$5.99

$

In Stock, Qty 5

0

359

Briggs & Stratton 691077

WASHER

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

Briggs & Stratton 845823

NUT

Note: (Ground Terminal)

$4.99

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 691972

INSULATOR

$8.49

$

In Stock, only 3 left!

0

520

Briggs & Stratton 691084

TERMINAL, Ground

$6.49

$

In Stock, only 2 left!

0

527

Briggs & Stratton 845268

CLAMP, Hose

$4.99

$

Usually ships in 2-12 days

0

587

Briggs & Stratton 690423

CLAMP, Tube

$4.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 690586

CLIP, Wire

$3.99

$

In Stock, only 3 left!

0

789

Briggs & Stratton 847176

HARNESS, Wiring

$45.99

$

Usually ships in 2-12 days

0

789A

Briggs & Stratton 847924

HARNESS, Wiring

$27.99

$

Usually ships in 2-12 days

0

789B

Briggs & Stratton 847023

HARNESS, Wiring

$85.99

$

Usually ships in 2-12 days

0

789E

Briggs & Stratton 84001970

HARNESS, WIRING

$185.99

$

Usually ships in 2-12 days

0

892

Briggs & Stratton 847448

SWITCH, Key

$57.99

$

Usually ships in 2-12 days

0

990

Briggs & Stratton 691959

SET, Key

$7.99

$

In Stock, Qty 8

0

1054

Briggs & Stratton 280275

TIE, Cable

$4.49

$

Usually ships in 2-12 days

0

1378

Briggs & Stratton 847144

SET, Washer/Nut

$10.99

$

Usually ships in 2-12 days

0

1378

Briggs & Stratton 847144

SET, Washer/Nut

$10.99

$

Usually ships in 2-12 days

0

1500

Briggs & Stratton 84001977

MODULE, Electronic Control

Note: (Not Programmed)

$272.99

$

Usually ships in 2-12 days

0

1510

Briggs & Stratton 807084

SCREW

Note: (Electronic Control Module) (M6x14mm)

$3.49

$

In Stock, Qty 7

0

1518

Briggs & Stratton 847016

TACHOMETER

$192.99

$

Usually ships in 2-12 days

0

1521

Briggs & Stratton 847150

CAP, Switch

$8.49

$

In Stock, Qty 16

0
