38E347-0001-B5 - Briggs & Stratton Horizontal Engine Throttle Body and Fuel Supply Group Parts Diagram

Horizontal Engine

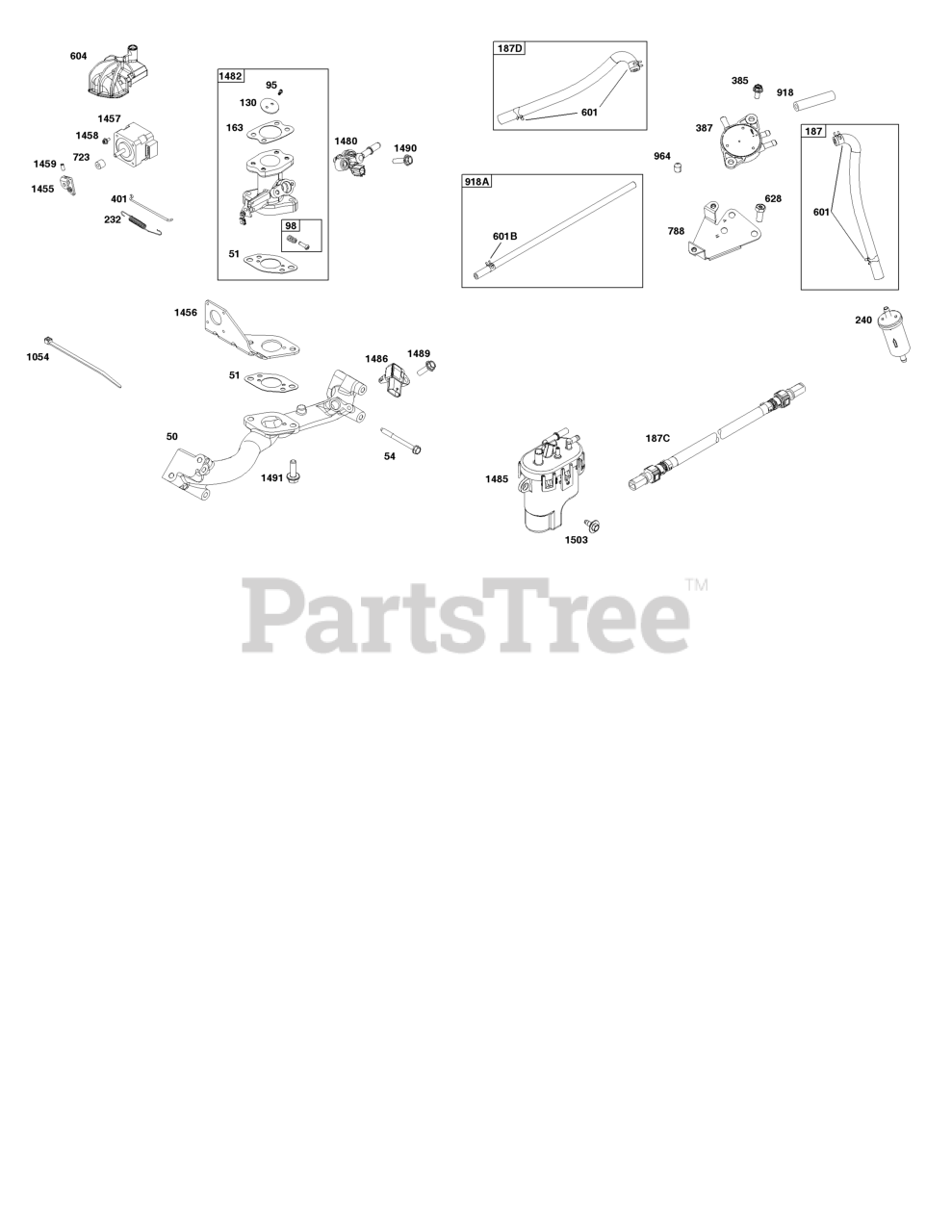

Throttle Body and Fuel Supply Group Parts Diagram

  • Title

50

Briggs & Stratton 847137

MANIFOLD, Intake

$130.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 691694

GASKET, Intake

$2.99

$

In Stock, Qty 20+

0

54

Briggs & Stratton 806444

SCREW

$4.49

$

In Stock, only 1 left!

0

95

Briggs & Stratton 846644

SCREW

Note: (Throttle Valve) (M3x5mm)

$3.49

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 847139

KIT, Idle Speed

$5.49

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 847262

VALVE, Throttle

$223.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 692081

GASKET, Air Cleaner

Note: (Air Cleaner)

$5.49

$

In Stock, Qty 5

0

187

Briggs & Stratton 846584

LINE, Fuel

$20.99

$

Usually ships in 2-12 days

0

187C

Briggs & Stratton 847136

LINE, Fuel

$95.99

$

Usually ships in 2-12 days

0

187D

Briggs & Stratton 791744

LINE, Fuel

$14.99

$

In Stock, only 2 left!

0

232

Briggs & Stratton 847470

SPRING, Governor

$6.49

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 845125

FILTER, Fuel

$7.49

$

In Stock, Qty 20+

0

385

Briggs & Stratton 807084

SCREW

Note: (Fuel Pump) (M6x14mm)

$3.49

$

In Stock, Qty 7

0

387

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

In Stock, Qty 20+

0

401

Briggs & Stratton 845814

LINK, Actuator

$10.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 691038

CLAMP, Hose

$3.99

$

In Stock, Qty 17

0

601B

Briggs & Stratton 593879

CLAMP, Hose

$3.99

$

Usually ships in 2-12 days

0

604

Briggs & Stratton 84001958

COVER, Control

$31.99

$

Usually ships in 2-12 days

0

628

Briggs & Stratton 806660

SCREW

Note: (Fuel Pump Bracket) (M8x18mm)

$3.99

$

In Stock, only 1 left!

0

723

Briggs & Stratton 845818

SEAL, Foam

$17.99

$

Usually ships in 2-12 days

0

788

Briggs & Stratton 691559

BRACKET, Fuel Pump

$24.99

$

In Stock, only 1 left!

0

918

Briggs & Stratton 791880

HOSE, Vacuum

$11.99

$

Usually ships in 2-12 days

0

918A

Briggs & Stratton 847141

HOSE, Vacuum

$10.99

$

Usually ships in 2-12 days

0

964

Briggs & Stratton 590799

CAP, Connector

$9.49

$

Usually ships in 2-12 days

0

1503

Briggs & Stratton 594618

SCREW

Note: (Fuel Module) (1/4-20x.5)

$3.99

$

In Stock, Qty 20+

0

1054

Briggs & Stratton 280275

TIE, Cable

Note: (Part information located in Controls Group.)

$4.49

$

Usually ships in 2-12 days

0

1455

Briggs & Stratton 845813

LEVER, Actuator

$22.99

$

Usually ships in 2-12 days

0

1456

Briggs & Stratton 845815

BRACKET, Mounting

$74.99

$

Usually ships in 2-12 days

0

1457

Briggs & Stratton 847142

MOTOR, Stepper

$238.99

$

Usually ships in 2-12 days

0

1458

Briggs & Stratton 845812

SCREW

Note: (Stepper Motor) (M3x8mm)

$4.99

$

Usually ships in 2-12 days

0

1459

Briggs & Stratton 845820

SCREW

$4.99

$

Usually ships in 2-12 days

0

1480

Briggs & Stratton 846618

INJECTOR, Fuel

$136.99

$

Usually ships in 2-12 days

0

1482

Briggs & Stratton 847138

BODY, Throttle

$223.99

$

Usually ships in 2-12 days

0

1485

Briggs & Stratton 593890

MODULE, Fuel

$411.99

$

In Stock, only 1 left!

0

1486

Briggs & Stratton 593905

SENSOR, Temperature/Manifold Absolute Pressure (MAP)

$128.99

$

Usually ships in 2-12 days

0

1489

Briggs & Stratton 690679

SCREW

Note: (TEMP/MAP Sensor) (M6x21mm)

$3.49

$

Usually ships in 2-12 days

0

1490

Briggs & Stratton 690679

SCREW

Note: (Fuel Injector) (M6x21mm)

$3.49

$

Usually ships in 2-12 days

0

1491

Briggs & Stratton 807382

SCREW

Note: (Throttle Body) (M8x25mm)

$3.49

$

Usually ships in 2-12 days

0
