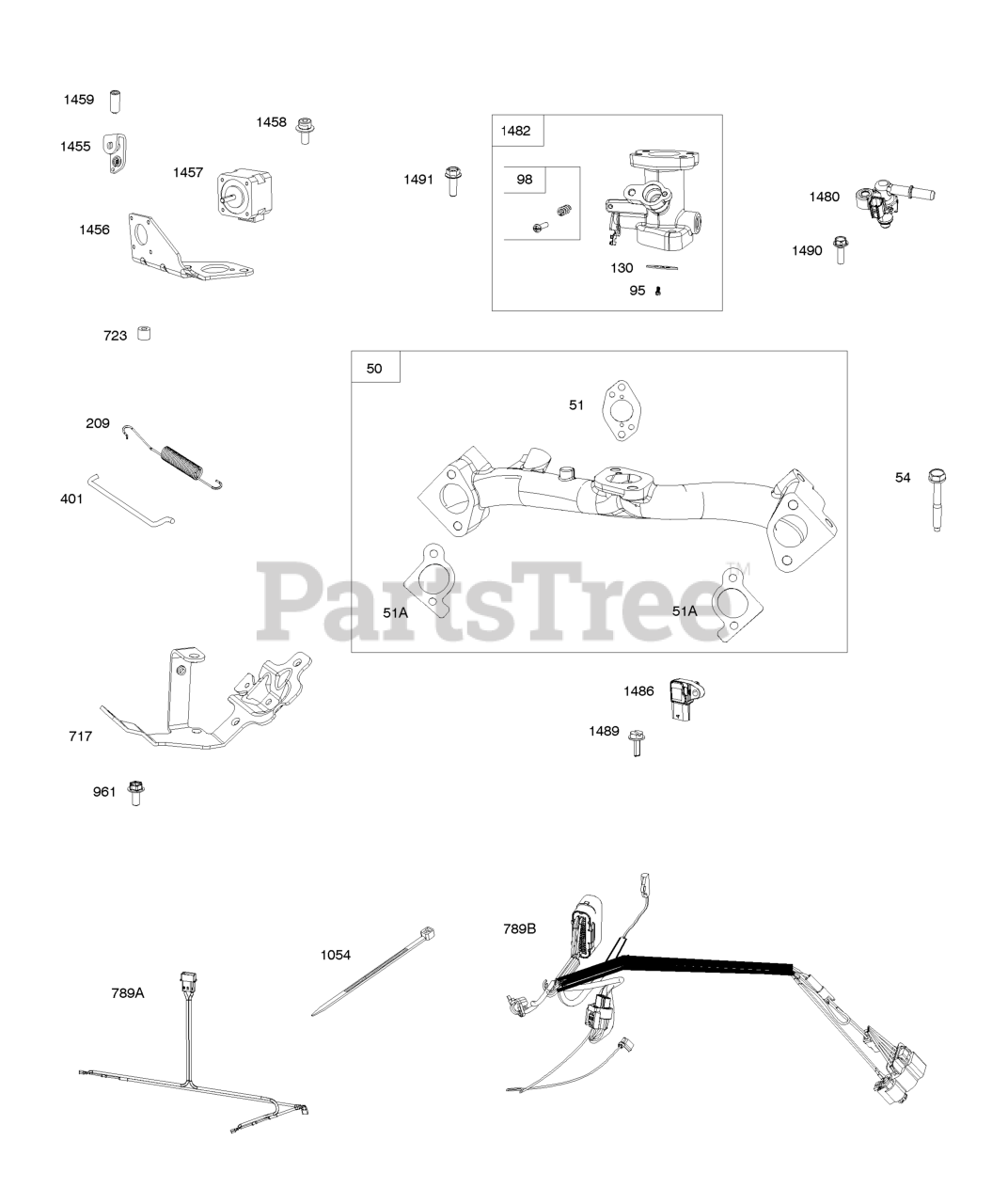

38E347-0001-B1 - Briggs & Stratton Horizontal Engine Intake Manifold, Harnesses, Throttle Body Parts Diagram

Horizontal Engine

Intake Manifold, Harnesses, Throttle Body Parts Diagram

  • Title

50

Briggs & Stratton 847137

Manifold-Intake

$130.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 691694

Gasket-Intake

Note: (Intake Manifold To Carburetor)

$2.99

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 806418

Gasket-Intake

Note: (Intake Manifold to Cylinder Head)

$3.99

$

In Stock, Qty 20+

0

54

Briggs & Stratton 806444

SCREW

Note: (Intake Manifold) (M6x68mm)

$4.49

$

In Stock, only 1 left!

0

95

Briggs & Stratton 846644

Screw

Note: (Throttle Valve)

$3.49

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 847139

KIT, Idle Speed

$5.49

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 847262

Valve-Throttle

$223.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 847470

Spring-Governor

$6.49

$

Usually ships in 2-12 days

0

401

Briggs & Stratton 845814

Link-Actuator

$10.99

$

Usually ships in 2-12 days

0

717

Briggs & Stratton 847140

Bracket-Air Cleaner

$96.99

$

Usually ships in 2-12 days

0

723

Briggs & Stratton 845818

Seal-Foam

$17.99

$

Usually ships in 2-12 days

0

789A

Briggs & Stratton 847176

Harness-Wiring

$45.99

$

Usually ships in 2-12 days

0

789B

Briggs & Stratton 847175

Harness-Wiring

$245.99

$

Usually ships in 2-12 days

0

961

Briggs & Stratton 807084

SCREW

Note: (Air Cleaner Bracket) (M6x14mm)

$3.49

$

In Stock, Qty 7

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1455

Briggs & Stratton 845813

Lever-Actuator

$22.99

$

Usually ships in 2-12 days

0

1456

Briggs & Stratton 845815

Bracket-Stepper Motor

$74.99

$

Usually ships in 2-12 days

0

1457

Briggs & Stratton 847142

Stepper Motor

$238.99

$

Usually ships in 2-12 days

0

1458

Briggs & Stratton 845812

Screw

Note: (Stepper Motor) (M3x8mm)

$4.99

$

Usually ships in 2-12 days

0

1459

Briggs & Stratton 845820

Screw-Set

Note: (Actuator Lever)

$4.99

$

Usually ships in 2-12 days

0

1480

Briggs & Stratton 846618

Injector-Fuel

$136.99

$

Usually ships in 2-12 days

0

1482

Briggs & Stratton 847138

Body-Throttle

$223.99

$

Usually ships in 2-12 days

0

1486

Briggs & Stratton 593905

SENSOR, Temperature/Manifold Absolute Pressure (MAP)

$128.99

$

Usually ships in 2-12 days

0

1489

Briggs & Stratton 193626GS

Screw

Note: (TEMP/MAP Sensor) (#6-32x.6)

$3.49

$

Usually ships in 2-12 days

0

1490

Briggs & Stratton 690679

Screw

Note: (Fuel Injector) (M6x21mm)

$3.49

$

Usually ships in 2-12 days

0

1491

Briggs & Stratton 807382

Screw

Note: (Throttle Body) (M8x25mm)

$3.49

$

Usually ships in 2-12 days

0
