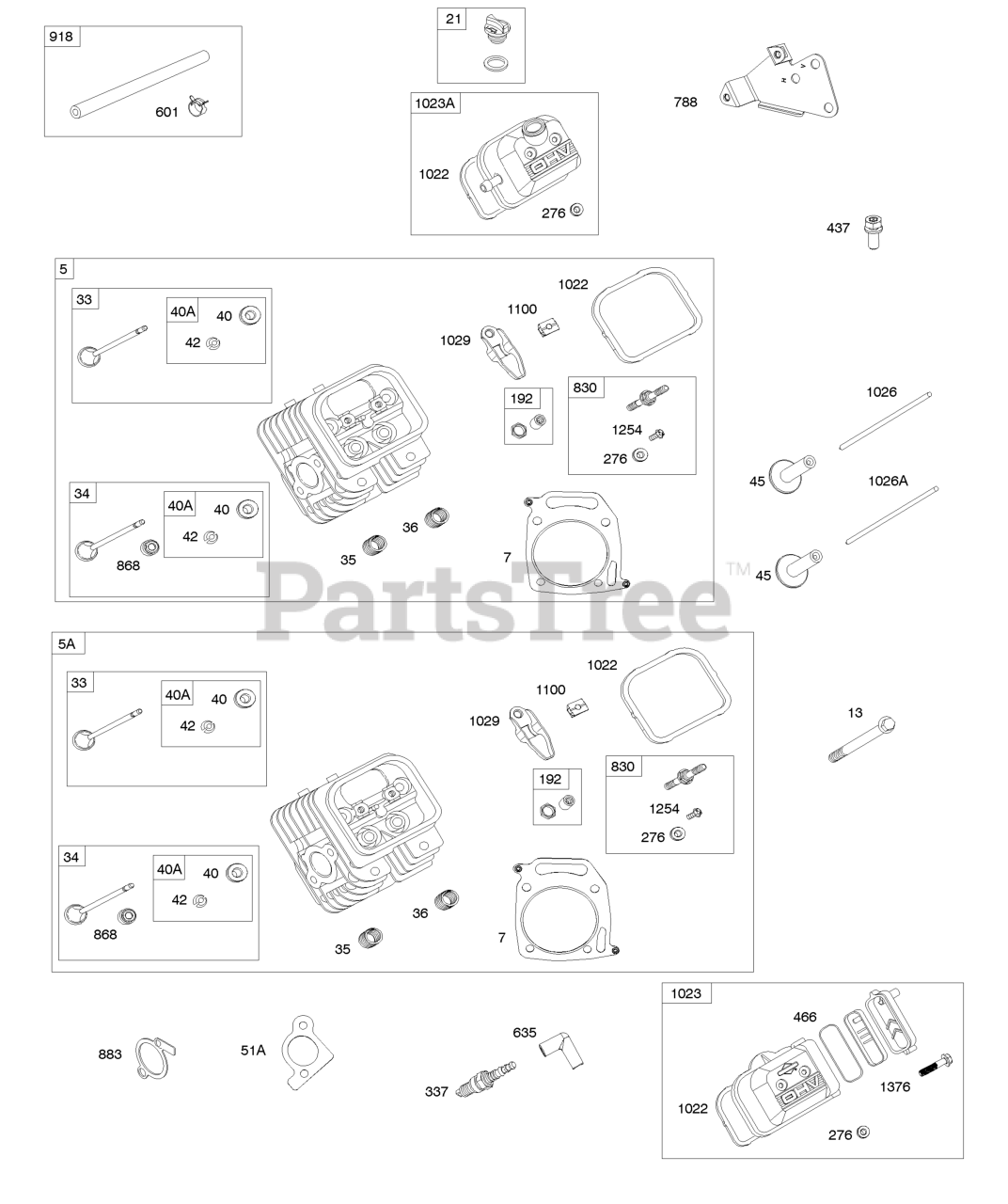

38E347-0001-B1 - Briggs & Stratton Horizontal Engine Cylinder Heads, Valve Covers Parts Diagram

Horizontal Engine

Cylinder Heads, Valve Covers Parts Diagram

  • Title

5

Briggs & Stratton 845713

Head-Cylinder

Note: (Cylinder #1)

$235.99

$

Usually ships in 2-12 days

0

5A

Briggs & Stratton 845714

Head-Cylinder
(Superseded to 84002013)

Note: (Cylinder #2)

$232.99

$

In Stock, Qty 7

0

7

Briggs & Stratton 842622

Gasket-Cylinder Head

$31.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 842618

Screw

Note: (Cylinder Head)

$4.49

$

In Stock, only 4 left!

0

21

Briggs & Stratton 809500

Cap-Oil Fill

$10.99

$

In Stock, Qty 17

0

33

Briggs & Stratton 806419

Valve-Exhaust
(Superseded to 843752)

$47.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 845712

Valve-Intake

$26.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 692084

Spring-Valve

Note: (Intake)

$6.49

$

In Stock, Qty 11

0

36

Briggs & Stratton 692084

Spring-Valve

Note: (Exhaust)

$6.49

$

In Stock, Qty 11

0

40

Briggs & Stratton 692058

Retainer-Valve

$5.49

$

Usually ships in 2-12 days

0

40A

Briggs & Stratton 844895

Retainer-Valve

$5.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 807683

RETAINER, Valve

$6.99

$

In Stock, Qty 12

0

45

Briggs & Stratton 843379

Tappet-Valve

$9.99

$

Usually ships in 2-12 days

0

51A

Briggs & Stratton 806418

Gasket-Intake

Note: (Intake Manifold to Cylinder Head)

$3.99

$

In Stock, Qty 20+

0

192

Briggs & Stratton 807623

Adjuster-Rocker Arm

$11.99

$

In Stock, only 1 left!

0

276

Briggs & Stratton 807085

Washer-Sealing

Note: (Rocker Cover)

$3.99

$

In Stock, Qty 20+

0

337

Briggs & Stratton 792015

PLUG, Spark

$6.99

$

In Stock, Qty 20+

0

437

Briggs & Stratton 691902

Screw

Note: (Exhaust Manifold) (M8x20mm)

$3.49

$

In Stock, Qty 8

0

466

Briggs & Stratton 806466

Seal-O Ring

Note: (Breather Assembly)

$10.99

$

In Stock, Qty 11

0

601

Briggs & Stratton 791850

CLAMP, Hose

Note: (Green)

$3.49

$

In Stock, Qty 20+

0

635

Briggs & Stratton 692076

BOOT, Spark Plug

$5.49

$

In Stock, Qty 20+

0

788

Briggs & Stratton 691559

Bracket-Fuel Pump

$24.99

$

In Stock, only 1 left!

0

830

Briggs & Stratton 809157

Stud-Rocker Arm

$6.99

$

In Stock, Qty 14

0

868

Briggs & Stratton 691963

SEAL, Valve

Note: (Intake Valve)

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 806425

Gasket-Exhaust

$5.49

$

In Stock, Qty 10

0

918

Briggs & Stratton 791880

Hose-Vacuum

Note: (Cut To Required Length)

$11.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 806039S

Gasket-Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 843750

Cover-Rocker

Note: (Cylinder #2)

$81.99

$

In Stock, only 1 left!

0

1023A

Briggs & Stratton 690910

Cover-Rocker

$45.99

$

In Stock, only 1 left!

0

1026

Briggs & Stratton 691836

Rod-Push

Note: (Intake)(Steel)

$12.99

$

In Stock, Qty 20+

0

1026A

Briggs & Stratton 691758

Rod-Push

Note: (Exhaust)(Aluminum)

$11.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 807323

ARM, Rocker

$12.99

$

In Stock, only 2 left!

0

1100

Briggs & Stratton 791959

PIVOT, Rocker Arm

$6.99

$

In Stock, only 3 left!

0

1254

Briggs & Stratton 807084

SCREW

Note: (Rocker Arm Stud) (M6x14mm)

$3.49

$

In Stock, Qty 7

0

1376

Briggs & Stratton 806421

SCREW

Note: (Breather Reed Cover) (M5x25mm)

$

$

Not available
