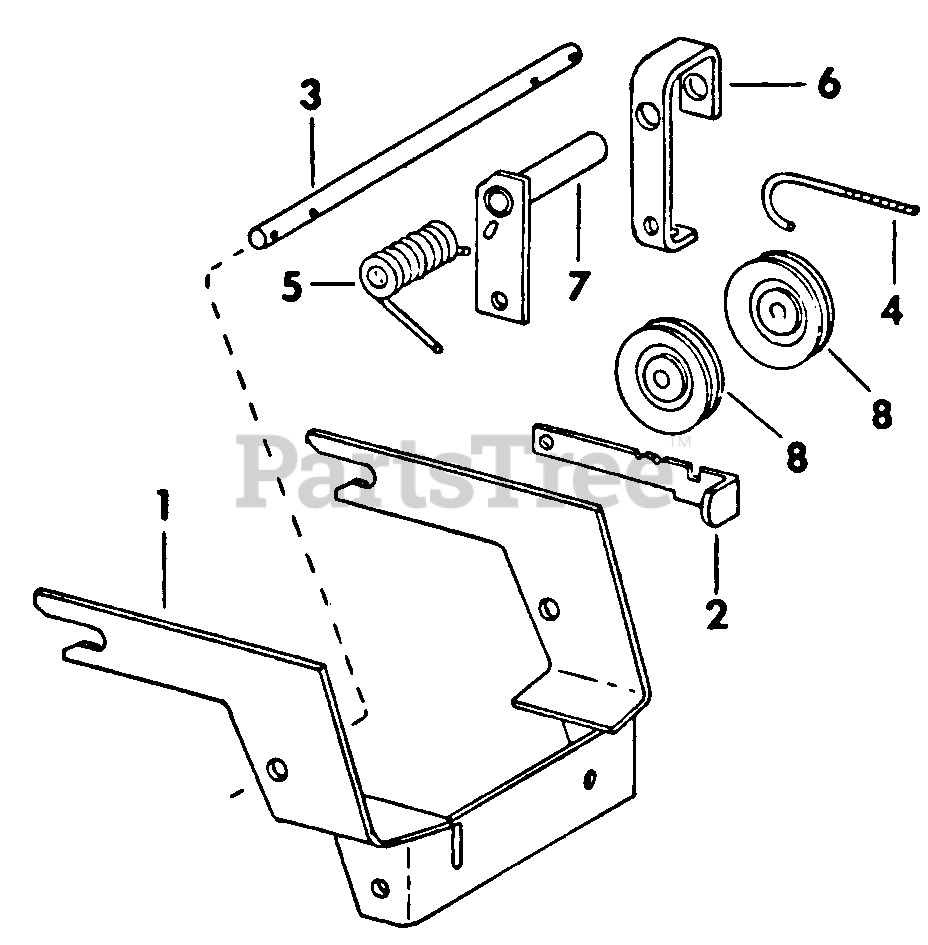

38C - Cub Cadet 38" Mower Deck Front Drive Package - S/N 400,001 To 665,000 Parts Diagram

38" Mower Deck

Front Drive Package - S/N 400,001 To 665,000 Parts Diagram

  • Title

Cub Cadet 62-383-C91

Package, Front Drive

$

$

Currently unavailable

1

Cub Cadet 59-681-C1

Hanger Assy, Front

$

$

Currently unavailable

2

Cub Cadet 107-099-C1

Ratchet, Idler

$

$

Currently unavailable

Cub Cadet IH-9413953

Nut, 3/8 Phc P/T Lock Type 5
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

3

Cub Cadet 59-683-C1

Shaft, Idler Pivot

$

$

Currently unavailable

Cub Cadet IH-137185

Pin, 1/8 X 1 Cot
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 178-373-R1

Washer, .531 X 1.000 X .056

$

$

Currently unavailable

4

Cub Cadet 132-494-C2

Bolt, Idler Adj -Replaces 59 685 C1

$

$

Currently unavailable

Cub Cadet IH-120393

Washer, .344 X .688 X .051
(Superseded to 936-0275)

$

$

Not available

Cub Cadet 411-597-R1

Nut, 5/16 P/T Lock Type 5

$

$

Currently unavailable

5

Cub Cadet 59-691-C1

Spring, Mule Drive Idler

$

$

Currently unavailable

6

Cub Cadet 106-678-C1

Arm, LH Idler

$

$

Currently unavailable

Cub Cadet IH-180126

Bolt, 3/8 X 1-1/2 Type 5
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 6

0

Cub Cadet IH-120382

Washer, 3/8 Lock
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8 Type 5
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 106-679-C1

Arm Assy, RH Idler

$

$

Currently unavailable

Cub Cadet IH-180132

Bolt, 3/8 X 2-1/4 Type 5
(Superseded to 710-3011)

$6.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120382

Washer, 3/8 Lock
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-120377

Nut, 3/8 Type 5
(Superseded to 712-0798)

$4.49

$

In Stock, only 2 left!

0

Cub Cadet 59-689-C1

Washer, Wave

$

$

Currently unavailable

Cub Cadet 25-544-R1

Washer, .406 X .812 X .134 Phc Hdn

$

$

Currently unavailable

8

Cub Cadet 61-176-C92

Pulley Assy, Drive Belt Idler

$

$

Currently unavailable
