38994 - Gravely 50" Deck for 4-Wheel Tractor MOWER DECK ASSEMBLY 50" Parts Diagram

50" Deck for 4-Wheel Tractor

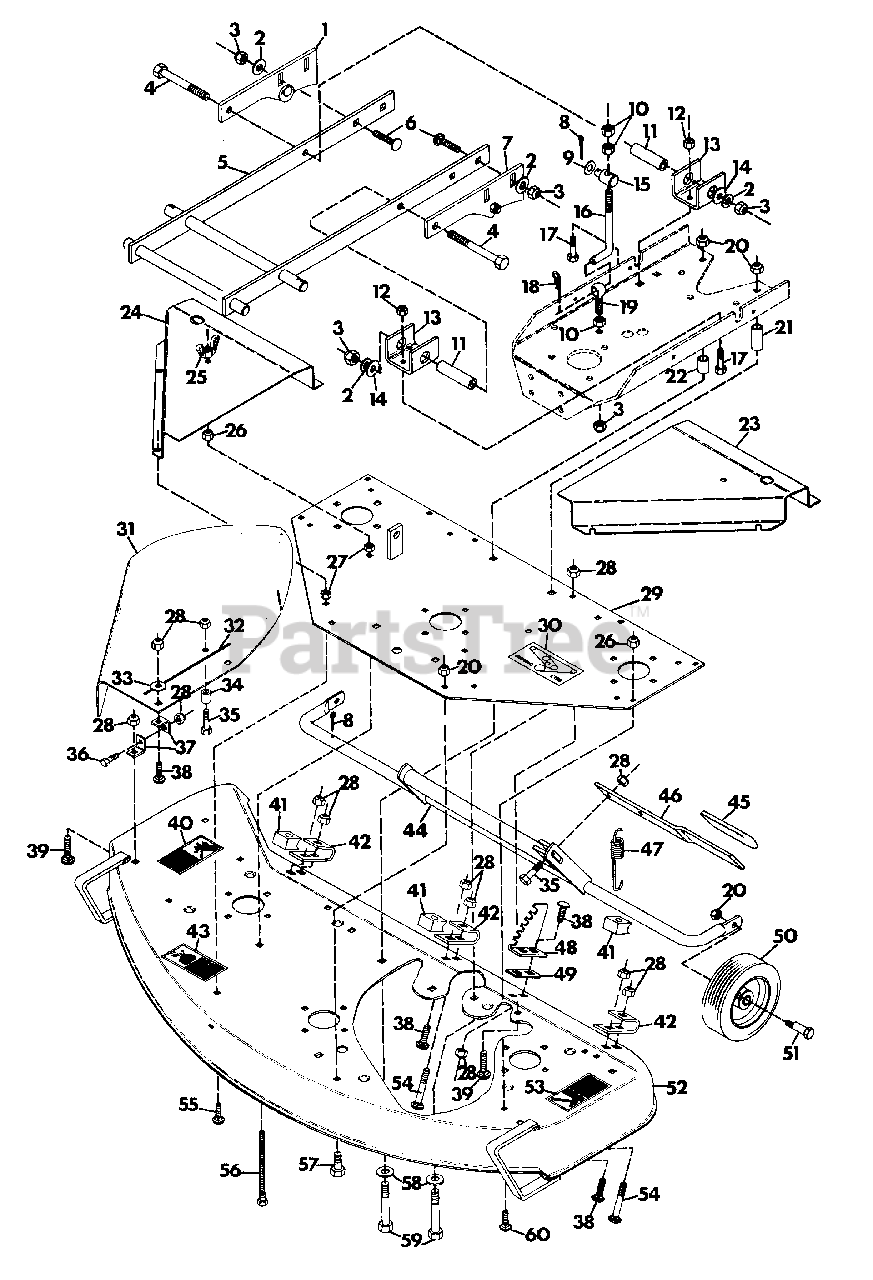

MOWER DECK ASSEMBLY 50" Parts Diagram

  • Title

1

Gravely 038986

WELDMENT, DECK LEVELING R.H.
(Superseded to 08540800)

$139.99

$

Usually ships in 4-12 days

0

2

Gravely 415543

WASHER, FLAT .531X1.250X.100
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

3

Gravely 414074

NUT, LOCK 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

4

Gravely 180191

BOLT, HEX 1/2-13X3.25
(Superseded to 05901634)

$3.99

$

In Stock, only 1 left!

0

5

Gravely 038992

WELDMENT, PIVOT ARM
(Superseded to 08541200)

$375.99

$

Usually ships in 4-12 days

0

6

Gravely 126485

BOLT, CARRIAGE 1/2-13X1.25
(Superseded to 06200325)

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 038988

WELDMENT, DECK LEVELING L.H.
(Superseded to 08541000)

$

$

Not available

8

Gravely 120123

PIN, COTTER .125X1.250
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 417098

WASHER, FLAT .531X1.000X.063
(Superseded to 06401115)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 120238

NUT, JAM 1/2-13 HEX
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 022414

BUSHING, PIVOT .510X.750X2.020
(Superseded to 08522700)

$21.99

$

Usually ships in 4-12 days

0

12

Gravely 413447

NUT, LOCK 5/16-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 022415

SUPPORT, MOWER PIVOT
(Superseded to 08522800)

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 423315

WASHER, FLAT .813X1.37X.100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 040625

PIVOT, MOWER LIFT
(Superseded to 08811600)

$45.99

$

In Stock, only 3 left!

0

16

Gravely 019201

ROD, LIFT
(Superseded to 08599900)

$67.99

$

Usually ships in 4-12 days

0

17

Gravely 180078

BOLT, HEX 5/16-18X.875
(Superseded to 05901801)

$2.49

$

In Stock, only 2 left!

0

18

Gravely 015691

PIN, COTTER HAIR
(Superseded to 06714900)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 019350

BOLT, EYE
(Superseded to 07015300)

$32.99

$

In Stock, only 1 left!

0

20

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 5

0

21

Gravely 019348

SPACER, .510X.840X2.43
(Superseded to 08510400)

$33.99

$

Usually ships in 4-12 days

0

22

Gravely 034119

SPACER
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

23

Gravely 040195

COVER, PULLEY L.H.
(Superseded to 08933400)

$

$

Not available

24

Gravely 040196

COVER, PULLEY R.H.
(Superseded to 08933500)

$

$

Not available

25

Gravely 040194

NUT, WING 5/16-18
(Superseded to 06537100)

$5.99

$

In Stock, only 1 left!

0

26

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 124824

NUT, JAM 5/16-18 HEX
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

29

Gravely 040200

WELDMENT, SUPPORT PLATE
(Superseded to 21252200)

$225.99

$

Usually ships in 4-12 days

0

30

Gravely 011715

DECAL, BELT INSTALLATION
(Superseded to 05216600)

$22.99

$

Usually ships in 4-12 days

0

31

Gravely 038675

SHIELD, SAFETY EXTENSION

$

$

Not available

32

Gravely 038769

STRIPE
(Superseded to 07852100)

$9.99

$

Usually ships in 4-12 days

0

33

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

34

Gravely 038696

STOP, CHUTE
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

35

Gravely 180126

BOLT, HEX 3/8-16X1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

36

Gravely 180121

BOLT, HEX 3/8-16X.875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

37

Gravely 034894

TAB, SPRING
(Superseded to 08804200)

$

$

Not available

38

Gravely 120915

BOLT, 3/8-16X1 RD HD SQ NK

$

$

Not available

39

Gravely 126227

BOLT, CARRIAGE 3/8-16X.75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

40

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

41

Gravely 011260

STOP, NYLON
(Superseded to 07519500)

$10.99

$

In Stock, only 2 left!

0

42

Gravely 011264

BRACKET, AXLE SUPPORT
(Superseded to 03349000)

$16.99

$

Usually ships in 4-12 days

0

43

Gravely 033928

DECAL, WARNING EYE
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

44

Gravely 038993

WELDMENT, AXLE PIVOT
(Superseded to 21248200)

$407.99

$

Usually ships in 4-12 days

0

45

Gravely 041191

GRIP, HANDLE
(Superseded to 07523000)

$5.99

$

Usually ships in 4-12 days

0

46

Gravely 038990

LEVER, HEIGHT OF CUT
(Superseded to 03499300)

$

$

Not available

47

Gravely 021471

SPRING, 40 AND 50 INCH MOWER
(Superseded to 08329500)

$14.99

$

In Stock, only 2 left!

0

48

Gravely 011265

BRACKET, HEIGHT ADJUST
(Superseded to 08598000)

$41.99

$

In Stock, only 1 left!

0

49

Gravely 021462

SHIM, MOWER HT. ADJ. BRKT.
(Superseded to 08517400)

$

$

Not available

50

Gravely 034426

WHEEL, GAUGE
(Superseded to 07128800)

$102.99

$

In Stock, only 2 left!

0

51

Gravely 038985

BOLT, ECCENTRIC
(Superseded to 03499200)

$

$

Not available

52

Gravely 040528

WELDMENT, 50 INCH DECK
(Superseded to 58810100)

$775.99

$

Usually ships in 4-12 days

0

53

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$

$

Not available

54

Gravely 126419

BOLT, 3/8-16X2 RD HD SQ NK
(Superseded to 06200314)

$3.99

$

In Stock, only 4 left!

0

55

Gravely 126358

BOLT, CARRIAGE 5/16-18X1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

56

Gravely 040193

BOLT, HEX 5/16-18X3.50
(Superseded to 06200411)

$5.99

$

Usually ships in 4-12 days

0

57

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

58

Gravely 120396

WASHER, FLAT .531X1.062X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

59

Gravely 180193

BOLT, HEX 1/2-13X3.75
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

60

Gravely 126216

BOLT, CARRIAGE 5/16-18X.75

$

$

Not available

NS

Gravely 010967

BAFFLE
(Superseded to 21335100)

$

$

Not available
