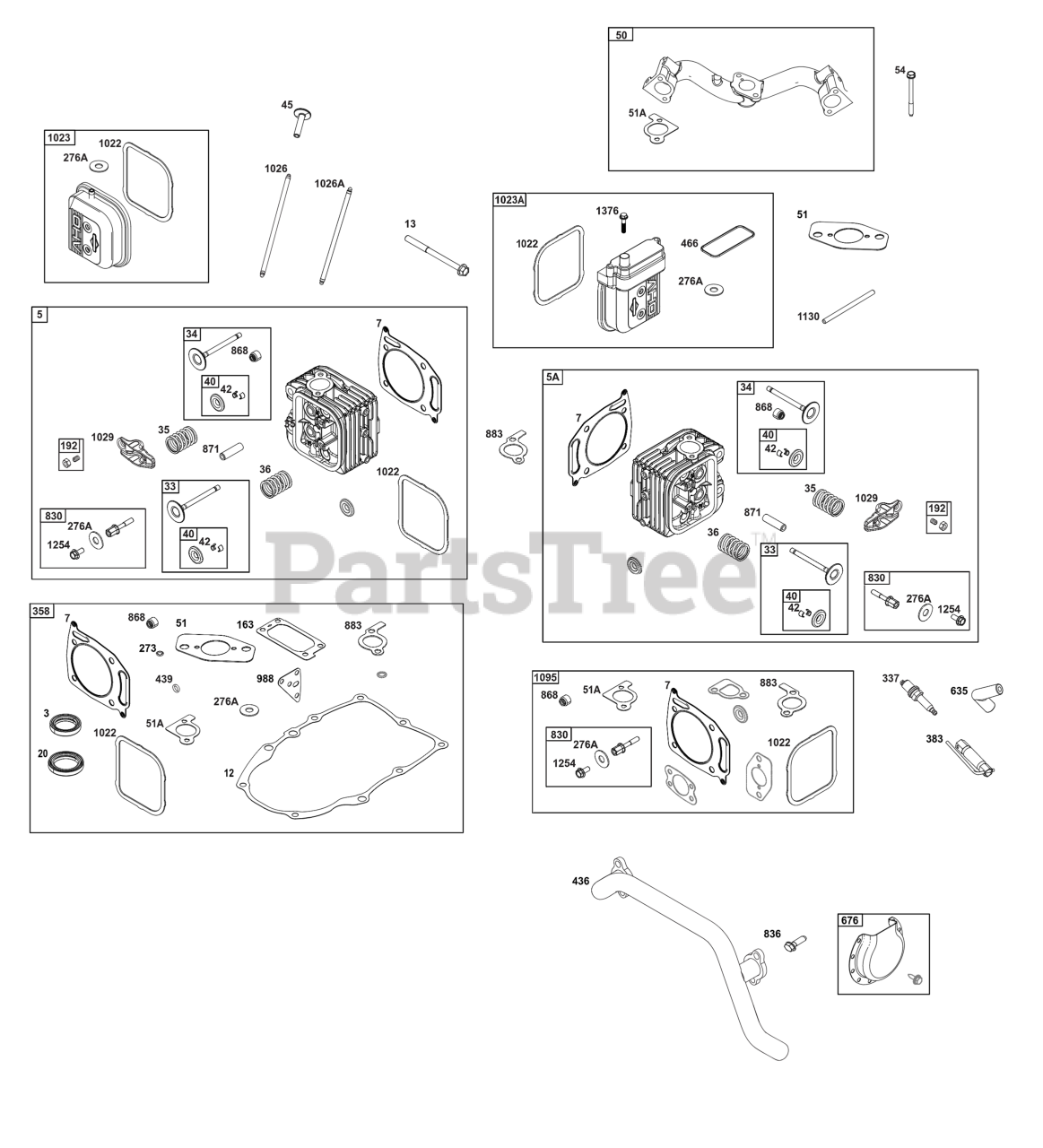

389575-0003-E1 - Briggs & Stratton Vertical Engine Cylinder Head Group Parts Diagram

Vertical Engine

Cylinder Head Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

5

Briggs & Stratton 842661

HEAD, Cylinder

$272.99

$

Usually ships in 2-12 days

0

5A

Briggs & Stratton 842660

HEAD, Cylinder

$272.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 842622

GASKET, Cylinder Head

$31.99

$

Usually ships in 2-12 days

0

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

13

Briggs & Stratton 842618

SCREW

Note: (Cylinder Head)

$4.49

$

Usually ships in 2-12 days

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

33

Briggs & Stratton 843752

VALVE, Exhaust

$47.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 843751

VALVE, Intake

$29.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 692084

SPRING, Valve

Note: (Intake)

$6.49

$

In Stock, Qty 11

0

36

Briggs & Stratton 809374

SPRING, Valve

Note: (Exhaust)

$8.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 692058

RETAINER, Valve

$5.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 807683

KEEPER, Valve

$6.99

$

In Stock, Qty 8

0

45

Briggs & Stratton 843379

TAPPET, Valve

$9.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 809067

MANIFOLD, Intake

$130.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 806457

GASKET, Intake

$4.49

$

In Stock, only 1 left!

0

51A

Briggs & Stratton 806418

GASKET, Intake

$3.99

$

In Stock, Qty 20+

0

54

Briggs & Stratton 806444

SCREW

Note: (Intake Manifold)

$4.49

$

In Stock, only 1 left!

0

163

GASKET, Air Cleaner

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

192

Briggs & Stratton 807623

ADJUSTER. Rocker Arm

$11.99

$

Usually ships in 2-12 days

0

273

SEAL, O-Ring

Note: (Part information located in Lubrication Group.)

$

$

Not available

276A

Briggs & Stratton 807085

WASHER, Sealing

$3.99

$

In Stock, Qty 17

0

337

Briggs & Stratton 797434

PLUG, Spark

$9.49

$

Usually ships in 2-12 days

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

383

Briggs & Stratton 19576S

WRENCH, Spark Plug

$5.99

$

In Stock, only 1 left!

0

436

Briggs & Stratton 808909

MANIFOLD, Exhaust

$139.99

$

In Stock, only 2 left!

0

439

O-RING, Oil Gallery

Note: (Part information located in Crankcase Cover/Sump Group.)

$

$

Not available

466

Briggs & Stratton 806466

SEAL, O-Ring

Note: (Breather Assembly)

$10.99

$

In Stock, Qty 10

0

635

BOOT, Spark Plug

Note: (Part information located in Flywheel/Ignition/Starter Group.)

$

$

Not available

676

Briggs & Stratton 795036

DEFLECTOR, Muffler

$8.49

$

In Stock, only 1 left!

0

830

Briggs & Stratton 809157

STUD, Rocker Arm

$6.99

$

In Stock, Qty 14

0

836

Briggs & Stratton 690661

SCREW

$3.49

$

In Stock, Qty 8

0

868

Briggs & Stratton 691963

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

871

Briggs & Stratton 692057

BUSHING, Valve Guide
(Superseded to 84002672)

$12.99

$

In Stock, only 2 left!

0

883

Briggs & Stratton 806425

GASKET, Exhaust

$5.49

$

In Stock, Qty 9

0

988

GASKET, Oil Adapter

Note: (Part information located in Lubrication Group.)

$

$

Not available

1022

Briggs & Stratton 806039S

GASKET, Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 691558

COVER, Rocker

$20.99

$

In Stock, only 1 left!

0

1023A

Briggs & Stratton 843750

COVER, Rocker

$81.99

$

In Stock, only 1 left!

0

1026

Briggs & Stratton 691836

ROD, Push

$12.99

$

In Stock, Qty 20+

0

1026A

Briggs & Stratton 691758

ROD, Push

$11.99

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 807323

ARM, Rocker

$12.99

$

In Stock, only 2 left!

0

1095

Briggs & Stratton 842662

GASKET SET, Valve

Note: (Service Kits may include extra parts not specific to this engine.)

$77.99

$

Usually ships in 2-12 days

0

1130

Briggs & Stratton 690869

STUD

$8.49

$

Usually ships in 2-12 days

0

1254

Briggs & Stratton 807084

SCREW

Note: (Rocker Arm Stud)

$3.49

$

In Stock, Qty 7

0

1376

Briggs & Stratton 806421

SCREW

Note: (Breather Reed Cover)

$

$

Not available
