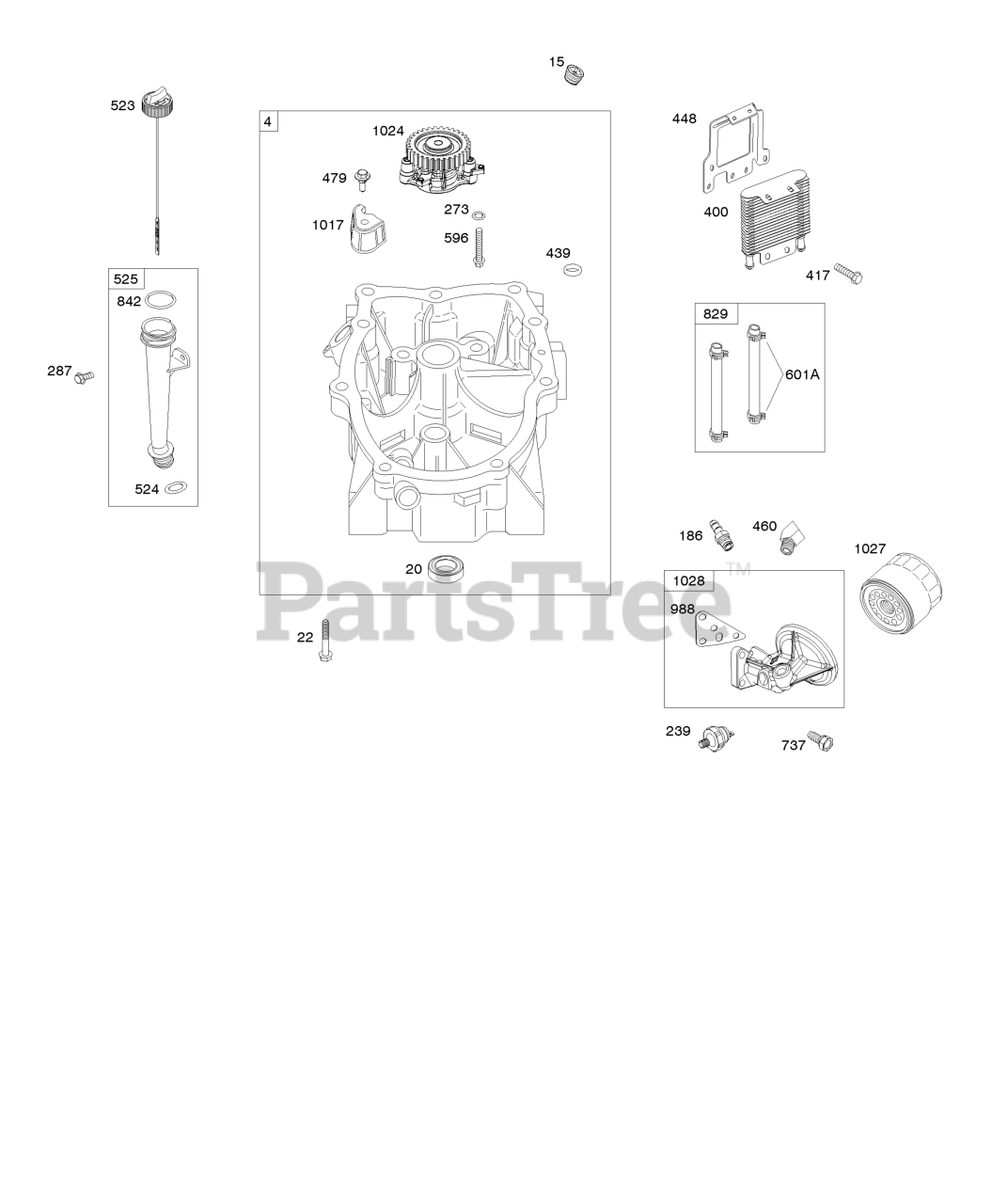

389575-0001-E1 - Briggs & Stratton Vertical Engine Sump. Oil Fill, Lubrication Parts Diagram

Vertical Engine

Sump. Oil Fill, Lubrication Parts Diagram

  • Title

4

Briggs & Stratton 846636

Sump-Engine

$232.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 691680

PLUG, Oil Drain

$5.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 805049S

Seal-Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 807362

SCREW

Note: (Crankcase Cover/Sump)

$3.49

$

In Stock, Qty 6

0

186

Briggs & Stratton 693184

Connector-Hose

$9.49

$

Usually ships in 2-12 days

0

239

Briggs & Stratton 841281

Switch-Oil Pressure

$32.99

$

In Stock, only 3 left!

0

273

Briggs & Stratton 690681

Seal-O Ring

Note: (Oil Pump)

$5.99

$

In Stock, only 2 left!

0

287

Briggs & Stratton 807084

SCREW

Note: (Dipstick Tube)

$3.49

$

In Stock, Qty 7

0

400

Briggs & Stratton 846489

Cooler-Oil

$154.99

$

Usually ships in 2-12 days

0

417

Briggs & Stratton 843345

Screw

Note: (Oil Cooler) (M6x8mm)

$5.99

$

Usually ships in 2-12 days

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

In Stock, Qty 20+

0

448

Briggs & Stratton 841488

Bracket-Oil Cooler

$41.99

$

Usually ships in 2-12 days

0

460

Briggs & Stratton 806667

Connector-Filter Adapter

$11.99

$

Usually ships in 2-12 days

0

479

Briggs & Stratton 843961

Screw

Note: (Oil Pump Screen)

$4.49

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 692101

Dipstick

$23.99

$

In Stock, Qty 6

0

524

Briggs & Stratton 692053

Seal-Dipstick Tube

$6.99

$

In Stock, Qty 9

0

525

Briggs & Stratton 692093

Tube-Dipstick

$20.99

$

In Stock, Qty 8

0

596

Briggs & Stratton 807389

Screw

Note: (Oil Pump)

$3.99

$

Usually ships in 2-12 days

0

601A

Briggs & Stratton 841597

CLAMP, Hose

Note: (Oil Cooler Hose)

$4.49

$

In Stock, only 3 left!

0

737

Briggs & Stratton 690679

Screw

Note: (Oil Filter Adapter) (M6x21mm)

$3.49

$

Usually ships in 2-12 days

0

829

Briggs & Stratton 841999

Hose-Oil Cooler

$46.99

$

In Stock, only 1 left!

0

842

Briggs & Stratton 691870

Seal-O Ring

Note: (Dipstick Tube)

$4.49

$

Usually ships in 2-12 days

0

988

Briggs & Stratton 692063

Gasket-Oil Adapter

$4.49

$

In Stock, only 4 left!

0

1017

Briggs & Stratton 843960

Screen-Oil Pump

$14.99

$

Usually ships in 2-12 days

0

1024

Briggs & Stratton 843959

Pump-Oil

$96.99

$

Usually ships in 2-12 days

0

1027

Briggs & Stratton 842921

Filter-Oil

$14.99

$

In Stock, Qty 20+

0

1028

Briggs & Stratton 843898

Adapter-Oil Filter

$97.99

$

Usually ships in 2-12 days

0
