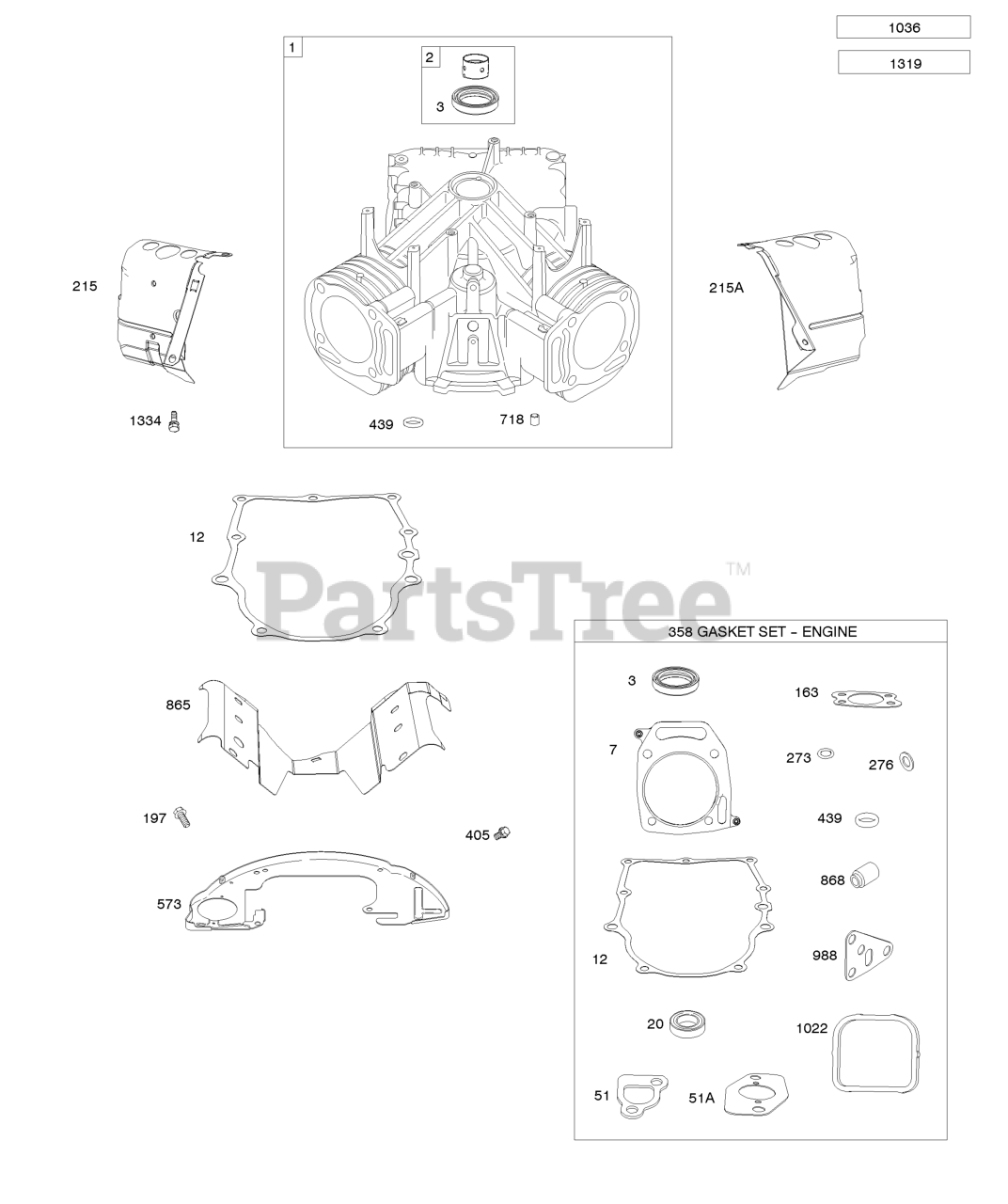

389575-0001-E1 - Briggs & Stratton Vertical Engine Cylinder, Cylinder Shields, Engine Gasket Set Parts Diagram

Vertical Engine

Cylinder, Cylinder Shields, Engine Gasket Set Parts Diagram

  • Title

1

Briggs & Stratton 842648

Cylinder Assembly

$604.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 808534

Kit-Bushing/Seal

Note: (Magneto Side)

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 805101S

Seal-Oil

Note: (Magneto Side)

$13.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 842622

Gasket-Cylinder Head

$31.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 846487

Gasket-Crankcase

$41.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 805049S

Seal-Oil

Note: (PTO Side)

$12.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 806418

Gasket-Intake

$3.99

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 806457

Gasket-Intake

$4.49

$

In Stock, only 1 left!

0

163

Briggs & Stratton 692081

Gasket-Air Cleaner

$5.49

$

In Stock, only 2 left!

0

197

Briggs & Stratton 807163

Screw

Note: (Back Plate) (M6x10mm)

$3.99

$

In Stock, only 1 left!

0

215

Briggs & Stratton 841317

Guide-Air

Note: (Cylinder #1)

$40.99

$

Usually ships in 2-12 days

0

215A

Briggs & Stratton 841316

Guide-Air

Note: (Cylinder #2)

$43.99

$

Usually ships in 2-12 days

0

273

Briggs & Stratton 690681

Seal-O Ring

Note: (Oil Pump)

$5.99

$

In Stock, only 2 left!

0

276

Briggs & Stratton 807085

Washer-Sealing

Note: (Rocker Cover)

$3.99

$

In Stock, Qty 17

0

358

Briggs & Stratton 841188

Gasket Set-Engine

$122.99

$

Usually ships in 2-12 days

0

405

Briggs & Stratton 807163

Screw

Note: (Back Plate)

$3.99

$

In Stock, only 1 left!

0

439

Briggs & Stratton 692154

O-RING, Oil Gallery

Note: (Crankcase Cover/Sump or Cylinder Assembly)

$5.99

$

In Stock, Qty 20+

0

573

Briggs & Stratton 841310

Plate-Back

$24.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 806469

Pin-Locating

$5.99

$

In Stock, only 2 left!

0

865

Briggs & Stratton 843768

Cover-Air Guide

Note: (Valley)

$39.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 691963

SEAL, Valve

$10.99

$

In Stock, Qty 20+

0

988

Briggs & Stratton 692063

Gasket-Oil Adapter

$4.49

$

In Stock, only 4 left!

0

1022

Briggs & Stratton 806039S

Gasket-Rocker Cover

$7.49

$

In Stock, Qty 20+

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1334

Briggs & Stratton 841233

SCREW

Note: (Air Guide) (M6x10mm)

$3.49

$

In Stock, Qty 20+

0
