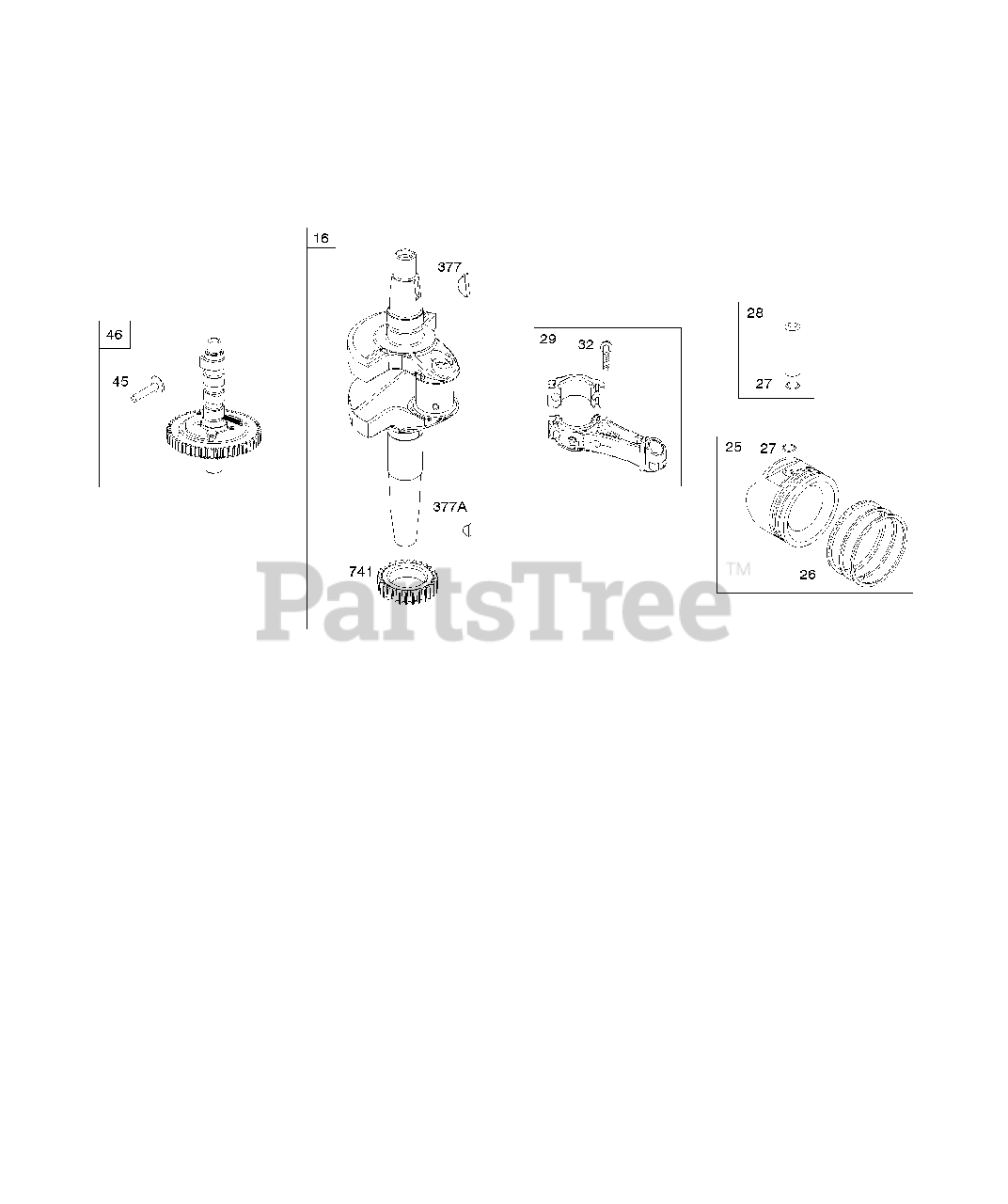

389575-0001-E1 - Briggs & Stratton Vertical Engine Crankshaft, Cam Gear, Piston, Piston Rings, Conn Rod Parts Diagram

Vertical Engine

Crankshaft, Cam Gear, Piston, Piston Rings, Conn Rod Parts Diagram

  • Title

16

Briggs & Stratton 846652

Crankshaft

$397.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 843805

Piston Assembly

Note: (Standard)

$139.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 844877

Piston Assembly

Note: (.020" Oversize)

$130.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 843806

Ring Set

Note: (Standard)

$53.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 843824

Ring Set

Note: (.020" Oversize)

$55.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 690683

Lock-Piston Pin

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 844023

Pin-Piston

$15.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 807900S

Rod-Connecting

$

$

Not available

32

Briggs & Stratton 690698

Screw

Note: (Connecting Rod)

$7.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 843379

Tappet-Valve

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 845650

Camshaft

$192.99

$

Usually ships in 2-12 days

0

377

Briggs & Stratton 808095

Key-Woodruff

$13.99

$

Usually ships in 2-12 days

0

377A

Briggs & Stratton 691639

KEY, Woodruff

$4.49

$

In Stock, Qty 5

0

741

Briggs & Stratton 846085

Gear-Timing

$19.99

$

Usually ships in 2-12 days

0
