389445-0115-E1 - Briggs & Stratton Horizontal Engine Alternator, Electric Starter, Ignition, Wires Parts Diagram

Horizontal Engine

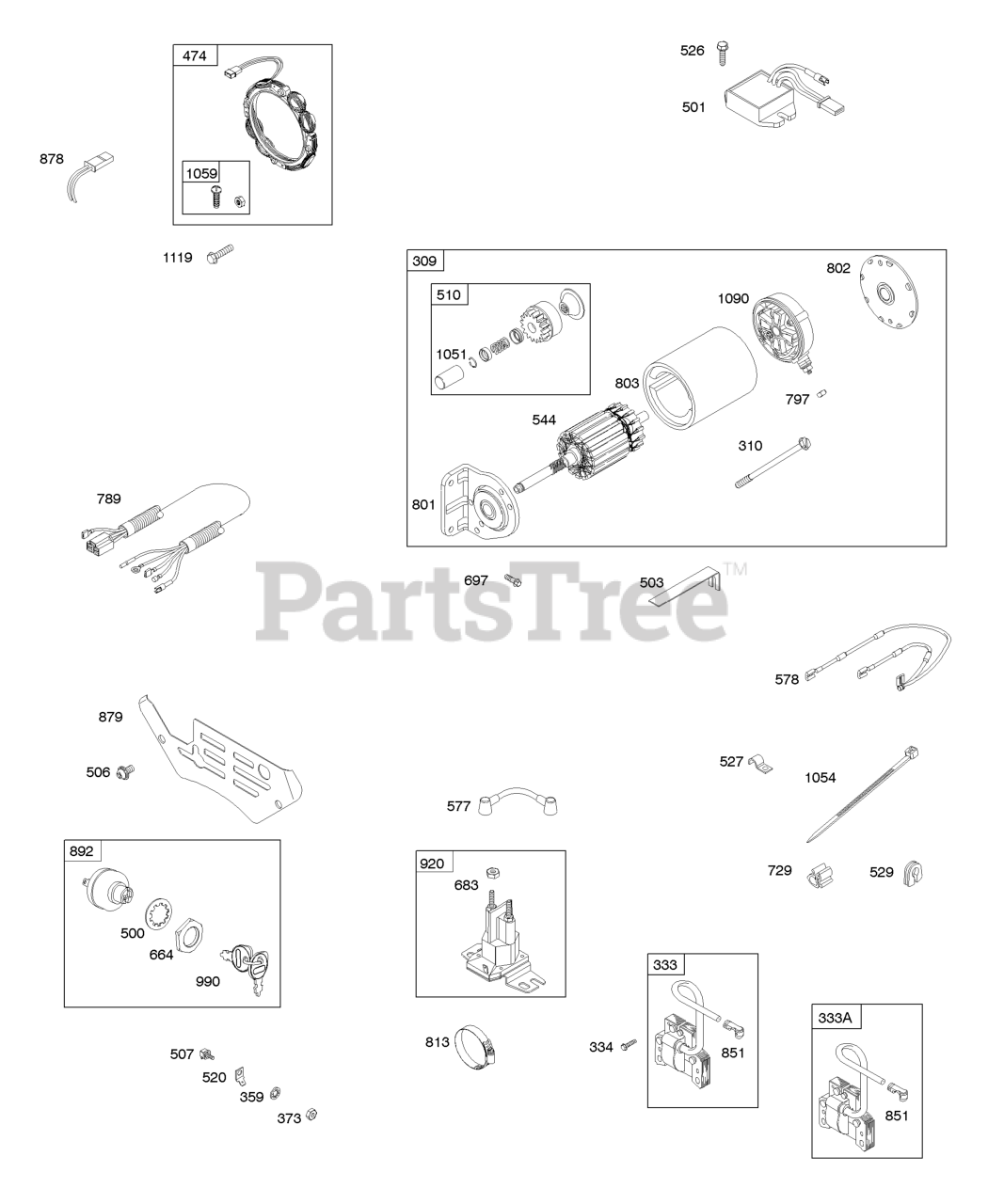

Alternator, Electric Starter, Ignition, Wires Parts Diagram

  • Title

309

Briggs & Stratton 691564

Motor-Starter

$184.99

$

In Stock, Qty 7

0

310

Briggs & Stratton 690323

BOLT

Note: (Starter Motor)

$4.49

$

In Stock, Qty 7

0

333

Briggs & Stratton 844548

Armature-Magneto
(Superseded to 845606)

Note: Used After Code Date 07100600

$71.99

$

In Stock, Qty 20+

0

333A

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

Note: Used Before Code Date 07100700

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 692066

Screw

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 7

0

359

Briggs & Stratton 691077

Washer

Note: (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

Briggs & Stratton 691612

NUT

Note: (Ground Terminal)

$3.49

$

In Stock, only 1 left!

0

474

Briggs & Stratton 696458

Alternator
(Superseded to 592830)

$101.99

$

In Stock, Qty 20+

0

500

Briggs & Stratton 691086

WASHER

Note: (Key Switch)

$4.49

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 797375

Regulator
(Superseded to 845907)

$61.99

$

In Stock, Qty 20+

0

503

Briggs & Stratton 691532

STRAP, Starter

$6.49

$

Usually ships in 2-12 days

0

506

Briggs & Stratton 807120

Screw

Note: (Carburetor Cover)

$3.99

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 691972

Insulator

$8.49

$

In Stock, only 3 left!

0

510

Briggs & Stratton 496881

Drive-Starter

$61.99

$

Usually ships in 2-12 days

0

520

Briggs & Stratton 691084

Terminal-Ground

$6.49

$

In Stock, only 2 left!

0

526

Briggs & Stratton 692067

SCREW

Note: (Regulator)

$3.99

$

In Stock, Qty 9

0

527

Briggs & Stratton 690423

CLAMP, Tube

$4.99

$

Usually ships in 2-12 days

0

529

Briggs & Stratton 690744

Grommet

$7.49

$

Usually ships in 2-12 days

0

544

Briggs & Stratton 693548

Armature-Starter

$116.99

$

Usually ships in 2-12 days

0

577

Briggs & Stratton 690795

CABLE, Starter

$18.99

$

In Stock, only 2 left!

0

578

Briggs & Stratton 692319

Wire Assembly

Note: Used Before Code Date 09100800

$17.99

$

In Stock, Qty 20+

0

578

Briggs & Stratton 844547

Wire Assembly

Note: Used After Code Date 09100700

$17.99

$

In Stock, Qty 20+

0

664

Briggs & Stratton 691087

NUT

Note: (Key Switch)

$4.49

$

Usually ships in 2-12 days

0

683

Briggs & Stratton 691029

NUT

Note: (Starter Solenoid)

$5.49

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 691902

Screw

Note: (Drive Cap)

$3.49

$

In Stock, Qty 8

0

729

Briggs & Stratton 690586

Clip-Wire

$3.99

$

In Stock, only 3 left!

0

789

Briggs & Stratton 691996

Harness-Wiring

$44.99

$

Usually ships in 2-12 days

0

797

Briggs & Stratton 691029

NUT

Note: (Brush Retainer) (Terminal)

$5.49

$

Usually ships in 2-12 days

0

801

Cap-Drive

Note: (For Replacement, Order Starter Motor 691564, Reference 309)

$

$

Not available

802

Briggs & Stratton 691286

CAP, End

$26.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 693547

Housing-Starter

$55.99

$

Usually ships in 2-12 days

0

813

Briggs & Stratton 690635

CLAMP

$24.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

878

Briggs & Stratton 398661

Harness-Alternator

$34.99

$

Usually ships in 2-12 days

0

879

Briggs & Stratton 841607

Cover-Carburetor

$23.99

$

Usually ships in 2-12 days

0

892

Briggs & Stratton 692318

Switch-Key

$29.99

$

In Stock, Qty 19

0

920

Briggs & Stratton 691656

SOLENOID, Starter

$31.99

$

In Stock, Qty 20+

0

990

Briggs & Stratton 691959

SET, Key

$7.99

$

In Stock, Qty 8

0

1051

Briggs & Stratton 691124

Ring-Retaining

$7.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.49

$

Usually ships in 2-12 days

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$29.99

$

In Stock, Qty 6

0

1119

Briggs & Stratton 691552

SCREW

Note: (Alternator)

$3.99

$

Usually ships in 2-12 days

0
