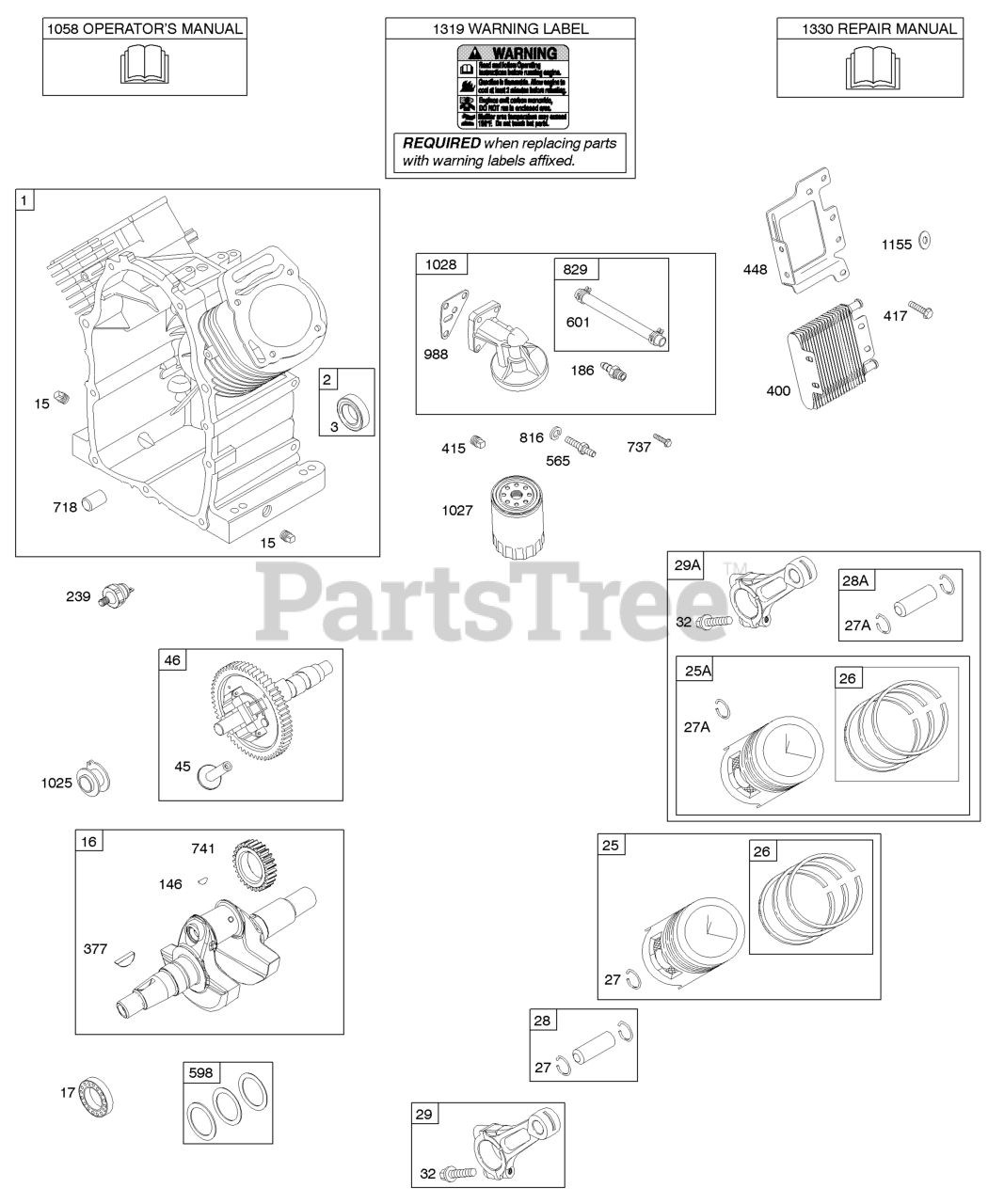

389445-0114-G2 - Briggs & Stratton Horizontal Engine Connecting Rod, Piston/Rings, Cylinder, Crankshaft, Camshaft, Lubrication Parts Diagram

Horizontal Engine

Connecting Rod, Piston/Rings, Cylinder, Crankshaft, Camshaft, Lubrication Parts Diagram

  • Title

1

Briggs & Stratton 842684

Cylinder Assembly

$633.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 808534

Kit-Bushing/Seal

Note: (Magneto Side)

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 805101S

Seal-Oil

Note: (Magneto Side)

$13.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 690946

PLUG, Oil Drain

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 843810

Crankshaft

Note: Used After Code Date 07062900

$453.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 843827

Bearing-Ball

$36.99

$

In Stock, only 3 left!

0

25

Briggs & Stratton 844877

Piston Assembly

Note: (.020 Oversize) Used After Code Date 07062900

$130.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 843805

Piston Assembly

Note: (Standard) Used After Code Date 07062900

$139.99

$

Usually ships in 2-12 days

0

25A

Briggs & Stratton 843823

Piston Assembly

Note: (.020" Oversize) (Includes Connecting Rod, Piston, Rings, Piston Pin andPiston Pin Locks) Used Before Code Date 07063000

$

$

Not available

25A

Briggs & Stratton 844009

Piston Assembly

Note: (Standard) (Includes Connecting Rod, Piston, Rings, Piston Pin andPiston Pin Locks) Used Before Code Date 07063000

$136.99

$

In Stock, only 3 left!

0

26

Briggs & Stratton 843806

Ring Set

Note: (Standard)

$53.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 843824

Ring Set

Note: (.020 Oversize)

$55.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 690683

Lock-Piston Pin

Note: Used After Code Date 07062900

$4.99

$

Usually ships in 2-12 days

0

27A

Briggs & Stratton 806378

Lock-Piston Pin

Note: Used Before Code Date 07063000

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 844023

Pin-Piston

Note: Used After Code Date 07062900

$15.99

$

In Stock, only 1 left!

0

28A

Briggs & Stratton 808526

Pin-Piston

Note: Used Before Code Date 07063000

$16.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 807900S

Rod-Connecting

Note: Used After Code Date 07062900

$

$

Not available

29A

Briggs & Stratton 844009

Rod-Connecting

Note: (Includes Connecting Rod, Piston, Rings, Piston Pin and Piston PinClips) Used Before Code Date 07063000

$136.99

$

In Stock, only 3 left!

0

32

Briggs & Stratton 690698

Screw

Note: (Connecting Rod)

$7.49

$

In Stock, only 1 left!

0

45

Briggs & Stratton 843379

Tappet-Valve

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 690927

Camshaft

$184.99

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 691639

KEY, Woodruff

$4.49

$

In Stock, Qty 5

0

186

Briggs & Stratton 693184

Connector-Hose

$9.49

$

Usually ships in 2-12 days

0

239

Briggs & Stratton 841281

Switch-Oil Pressure

$32.99

$

In Stock, only 3 left!

0

377

Briggs & Stratton 808095

Key-Woodruff

$13.99

$

Usually ships in 2-12 days

0

400

Briggs & Stratton 808657

Cooler-Oil
(Superseded to 846489)

$154.99

$

Usually ships in 2-12 days

0

415

Briggs & Stratton 794903

PLUG

Note: (Intake Manifold)

$5.49

$

Usually ships in 2-12 days

0

417

Briggs & Stratton 843345

Screw

Note: (Oil Cooler)

$5.99

$

Usually ships in 2-12 days

0

448

Briggs & Stratton 841488

Bracket-Oil Cooler

$41.99

$

Usually ships in 2-12 days

0

565

Briggs & Stratton 690682

Stud

Note: (Oil Filter Adapter)

$4.49

$

Usually ships in 2-12 days

0

598

Briggs & Stratton 807625

Shim-End Play

Note: (Crankshaft or Camshaft Bearing)

$19.99

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 841597

CLAMP, Hose

Note: (Oil Hose)

$4.49

$

In Stock, only 3 left!

0

718

Briggs & Stratton 806469

Pin-Locating

$5.99

$

In Stock, only 2 left!

0

737

Briggs & Stratton 690679

Screw

Note: (Oil Filter Adapter)

$3.49

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 691530

Gear-Timing
(Superseded to 846085)

$19.99

$

Usually ships in 2-12 days

0

816

Briggs & Stratton 690706

Washer

Note: (Oil Filter Adapter)

$3.99

$

In Stock, only 2 left!

0

829

Briggs & Stratton 841999

Hose-Oil

Note: (Cut To Required Length)

$46.99

$

In Stock, only 1 left!

0

988

Briggs & Stratton 692063

Gasket-Oil Adapter

$4.49

$

In Stock, only 4 left!

0

1025

Briggs & Stratton 690689

Spool-Governor

$22.99

$

In Stock, only 2 left!

0

1027

Briggs & Stratton 842921

Filter-Oil

$14.99

$

In Stock, Qty 20+

0

1028

Briggs & Stratton 808537

Adapter-Oil Filter
(Superseded to 843898)

$97.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 278389WST

Operator's Manual

$

$

Not available

1155

Briggs & Stratton 806647

Washer

Note: (Oil Cooler)

$4.49

$

Usually ships in 2-12 days

0

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 272144

Repair Manual

$48.99

$

In Stock, only 3 left!

0
