38923 (1138-G) - Gravely 38" Lawn Tractor, 11hp Briggs & Stratton, Gear Drive MOWER 38" Parts Diagram

38" Lawn Tractor, 11hp Briggs & Stratton, Gear Drive

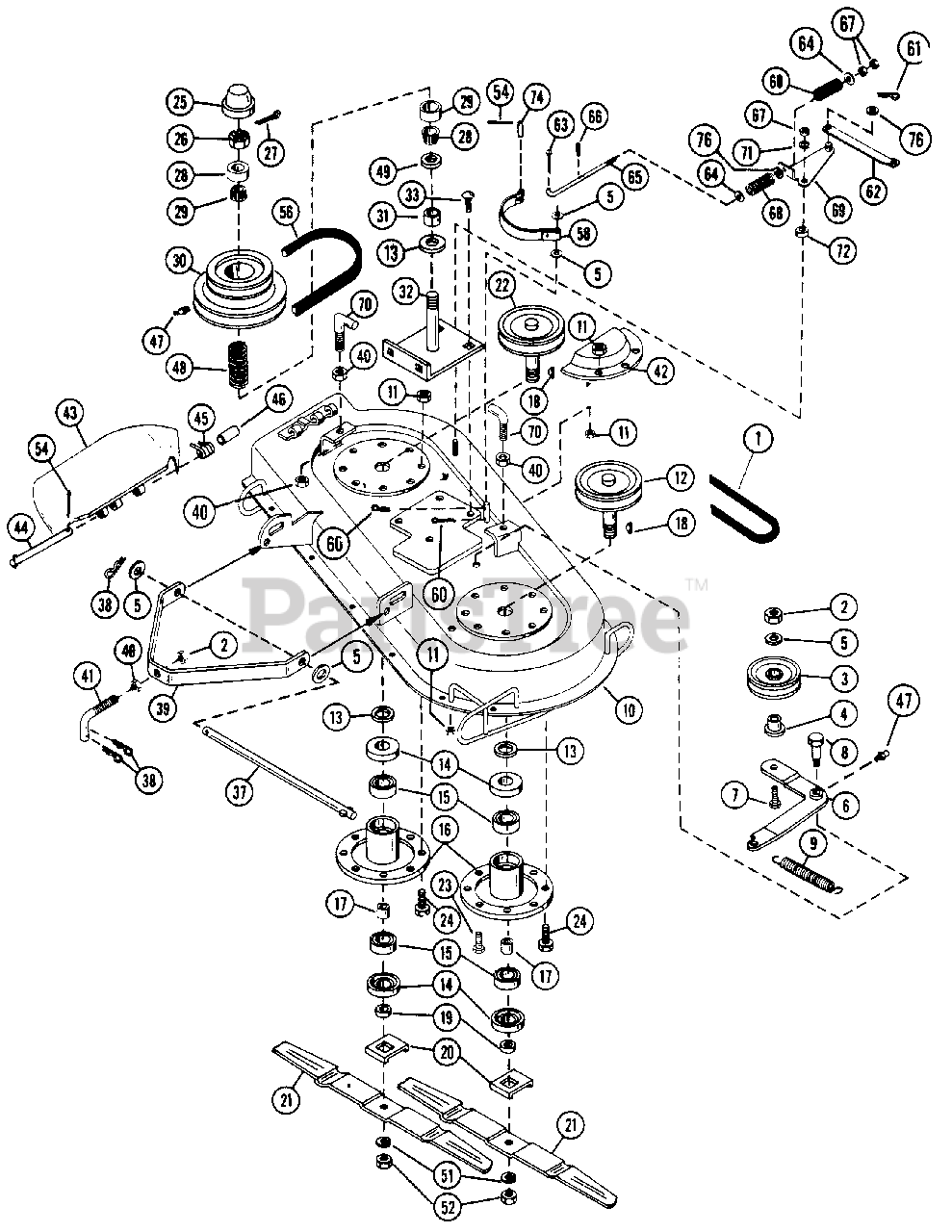

MOWER 38" Parts Diagram

  • Title
1

Gravely 035955

BELT
(Superseded to 07203800)

$37.99

$

In Stock, only 1 left!

0

2

Gravely 414074

NUT, LOCK 1/2-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

3

Gravely 035957

IDLER PULLEY
(Superseded to 53508300)

$

$

Not available

4

Gravely 035958

FLANGE BUSHING
(Superseded to 05502100)

$3.99

$

In Stock, Qty 20+

0

5

Gravely 446494

WASHER, .505IDX.880ODX.072
(Superseded to 06431000)

$

$

Not available

6

Gravely 035960

IDLER ARM
(Superseded to 02527200)

$62.99

$

Usually ships in 4-12 days

0

7

Gravely 180175

CAP SCREW, 1/2-13X1.250
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

8

Gravely 035962

SHOULDER BOLT
(Superseded to 03535600)

$22.99

$

Usually ships in 4-12 days

0

9

Gravely 035888

SPRING
(Superseded to 08322100)

$45.99

$

Usually ships in 4-12 days

0

10

Gravely 035964

DECK(PAN)

Note: (PAN)

$

$

Not available

11

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 035966

SHEAVE, 4"
(Superseded to 02526600)

$90.99

$

Usually ships in 4-12 days

0

13

Gravely 131018

WASHER, FLAT .938X1.750X.134
(Superseded to 21053300)

$

$

Not available

14

Gravely 035968

BEARING SLINGER
(Superseded to 00341900)

$22.99

$

In Stock, only 2 left!

0

15

Gravely 035925

RADIAL BEARING
(Superseded to 05412000)

$13.99

$

In Stock, Qty 7

0

16

Gravely 035970

SPINDLE HOUSING
(Superseded to 01336451)

$

$

Not available

17

Gravely 035971

SPACER
(Superseded to 02526400)

$26.99

$

Usually ships in 4-12 days

0

18

Gravely 106751

KEY, NO. 9 WOODRUFF 3/16X3/4
(Superseded to 06600300)

$1.49

$

In Stock, Qty 12

0

19

Gravely 035973

RETAINER HUB
(Superseded to 00316900)

$

$

Not available

20

Gravely 035974

BLADE TRAY
(Superseded to 00317000)

$30.99

$

Usually ships in 4-12 days

0

21

Gravely 035975

MOWER BLADE
(Superseded to 03535500)

$

$

Not available

22

Gravely 035976

SHEAVE, 3-3/4"

$

$

Not available

23

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 180120

BOLT, HEX 3/8-16X.75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 035979

CAP
(Superseded to 01336600)

$

$

Not available

26

Gravely 035980

SLOTTED JAM NUT
(Superseded to 06528300)

$

$

Not available

27

Gravely 120123

COTTER PIN, 1/8"X1.25"
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 018445

BEARING CUP
(Superseded to 05404400)

$10.99

$

In Stock, Qty 20+

0

29

Gravely 018446

BEARING CONE
(Superseded to 05404500)

$23.99

$

In Stock, Qty 9

0

30

Gravely 035984

SHEAVE
(Superseded to 03510200)

$

$

Not available

31

Gravely 035985

SPACER
(Superseded to 02528100)

$5.99

$

Usually ships in 4-12 days

0

32

Gravely 035986

DRIVE PLATE
(Superseded to 02526700)

$

$

Not available

33

Gravely 126227

BOLT, CARRIAGE 3/8-16X.75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

37

Gravely 035988

TOW PIN
(Superseded to 03526200)

$

$

Not available

38

Gravely 036566

HAIR PIN, 3/32X1-7/8 PL
(Superseded to 06702900)

$2.49

$

Usually ships in 4-12 days

0

39

Gravely 035990

MOWER STRAP
(Superseded to 03523600)

$32.99

$

In Stock, only 1 left!

0

40

Gravely 120238

JAM NUT
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 035992

TOW HOOK
(Superseded to 03523700)

$

$

Not available

42

Gravely 035993

COVER
(Superseded to 02527400)

$

$

Not available

43

Gravely 035994

CHUTE DEFLECTOR
(Superseded to 02539800)

$

$

Not available

44

Gravely 035995

HINGE PIN
(Superseded to 03624200)

$51.99

$

In Stock, only 1 left!

0

45

Gravely 035996

SPRING TORSION
(Superseded to 08307200)

$20.99

$

Usually ships in 4-12 days

0

46

Gravely 035997

BUSHING
(Superseded to 02202900)

$5.99

$

In Stock, only 4 left!

0

47

Gravely 036160

LUBE FITTING
(Superseded to 07012600)

$

$

Not available

48

Gravely 035999

SPRING, COMPRESSION
(Superseded to 08305400)

$

$

Not available

49

Gravely 036000

SEAL
(Superseded to 05606000)

$63.99

$

In Stock, only 1 left!

0

51

Gravely 131046

LOCKWASHER, 3/4
(Superseded to 06310300)

$1.49

$

In Stock, Qty 20+

0

52

Gravely 426897

JAM NUT, 3/4-10
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

54

Gravely 121222

COTTER PIN, 3/32X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

56

Gravely 036004

MOWER BELT
(Superseded to 07211800)

$29.99

$

In Stock, only 1 left!

0

58

Gravely 036005

BAND BRAKE
(Superseded to 03524500)

$

$

Not available

60

Gravely 121224

COTTER PIN 3/32X1

$0.99

$

Usually ships in 4-12 days

0

61

Gravely 036075

HAIR PIN, INTERNAL 3/32X1.27/64
(Superseded to 06701000)

$2.49

$

Usually ships in 4-12 days

0

62

Gravely 036009

LINK
(Superseded to 03581953)

$

$

Not available

63

Gravely 112726

COTTER PIN 1/16X.500
(Superseded to 21049300)

$

$

Not available

64

Gravely 120386

WASHER, FLAT .312X.734X.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

65

Gravely 036012

BRAKE ROD
(Superseded to 03524600)

$

$

Not available

66

Gravely 273753

ROLL PIN, 1/8X.75
(Superseded to 21064300)

$

$

Not available

67

Gravely 120376

NUT 5/16-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

68

Gravely 036015

SPRING
(Superseded to 08300900)

$20.99

$

Usually ships in 4-12 days

0

69

Gravely 036016

BRAKE LEVER
(Superseded to 03581800)

$

$

Not available

70

Gravely 036017

HANGER HOOK
(Superseded to 03510000)

$

$

Not available

71

Gravely 131099

LOCKWASHER
(Superseded to 06300120)

$3.49

$

In Stock, only 1 left!

0

72

Gravely 036019

SPACER
(Superseded to 03502700)

$3.99

$

Usually ships in 4-12 days

0

74

Gravely 036021

PIN
(Superseded to 00281300)

$

$

Not available

76

Gravely 120394

WASHER
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

Gravely 033927

DECAL, DANGER FOOT
(Superseded to 05350100)

$

$

Not available

Gravely 035331

DECAL, CAUTION

$

$

Not available

Gravely 033928

DECAL, WARNING EYE
(Superseded to 05350200)

$31.99

$

Usually ships in 4-12 days

0

Gravely 033926

DECAL, DANGER HAND
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

Gravely 032872

DECAL, NO STEP
(Superseded to 03542500)

$

$

Not available
