38890 (1428 OHXE) - Toro 28" Power TRX Commercial Snow Thrower (SN: 416000000 - 417199999) Fuel Systems and Carburetor Assembly Parts Diagram

28" Power TRX Commercial Snow Thrower

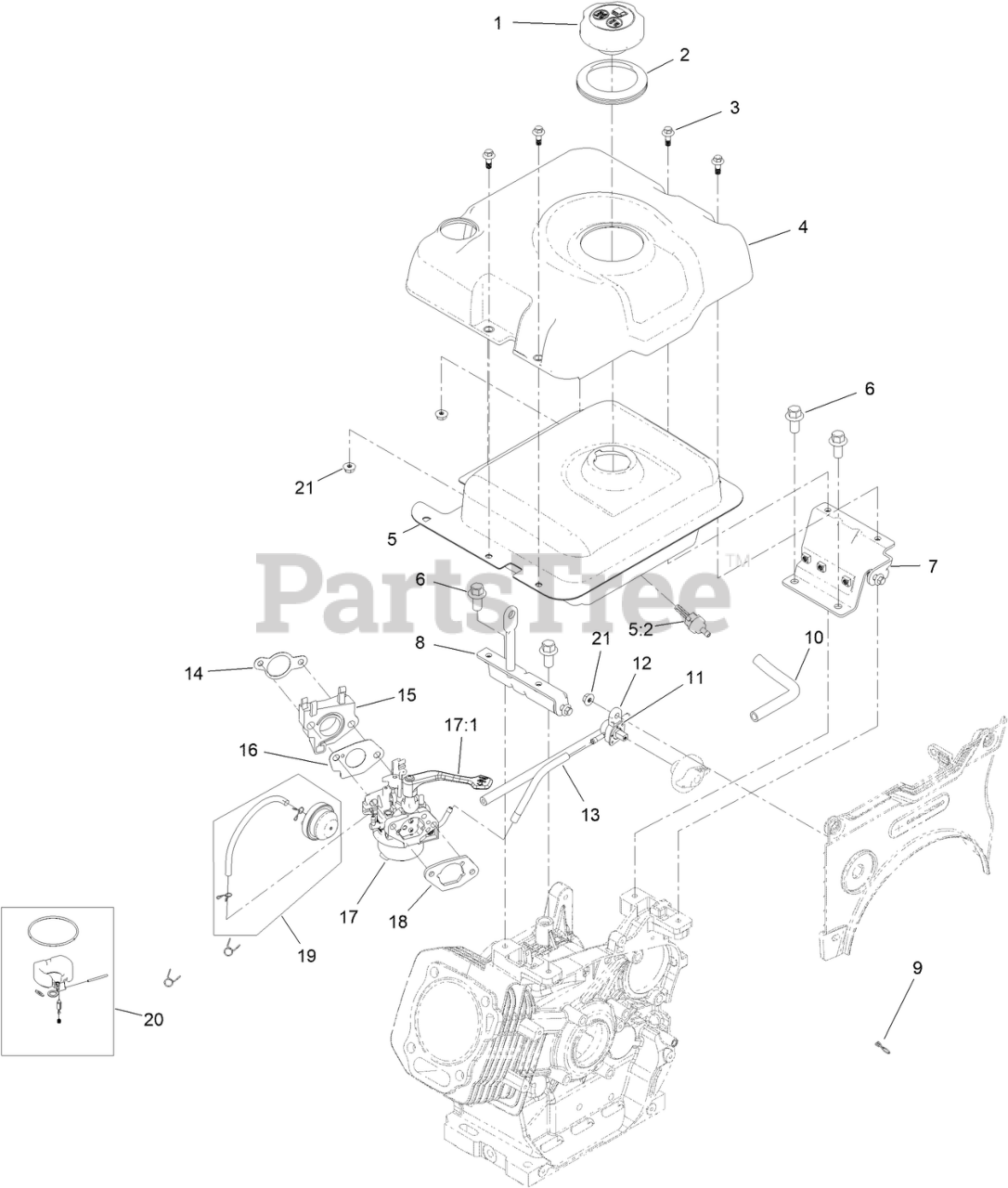

Fuel Systems and Carburetor Assembly Parts Diagram

  • Title

1

Toro 133-9823

CAP-FUEL

$20.99

$

In Stock, only 2 left!

0

2

Toro 121-0324

INSERT-COVER, TANK

$3.99

$

Usually ships in 3-6 days

0

3

Toro 121-0296

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

4

Toro 139-0574

COVER-TANK, FUEL

$74.99

$

Usually ships in 3-6 days

0

5

Toro 139-0567

FUEL TANK AND FILTER ASM

$106.99

$

Usually ships in 3-6 days

0

5:2

Toro 127-9065

FILTER-FUEL

$6.49

$

In Stock, only 2 left!

0

6

Toro 139-0569

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

7

Toro 139-0571

BRACKET-TANK, RIGHT

$21.99

$

Usually ships in 3-6 days

0

8

Toro 139-0570

BRACKET-TANK, LEFT

$21.99

$

Usually ships in 3-6 days

0

9

Toro 147-7077

CLIP-HOSE

$

$

Currently unavailable

10

Toro 147-7078

SLEEVE-ABRASION

$

$

Currently unavailable

11

Toro 147-7076

HOSE-FUEL

$

$

Currently unavailable

12

Toro 121-0258

VALVE-FUEL

$11.99

$

Usually ships in 3-6 days

0

13

Toro 147-7094

HOSE-FUEL

$6.49

$

Usually ships in 0 days

0

14

Toro 139-0579

GASKET-CARBURETOR

$1.49

$

Usually ships in 3-6 days

0

15

Toro 139-0580

INSULATOR-CARBURETOR

$5.99

$

Usually ships in 3-6 days

0

16

Toro 139-0581

GASKET-CARBURETOR

$1.49

$

Usually ships in 3-6 days

0

17

Toro 139-0594

CARBURETOR ASM

$115.99

$

Usually ships in 3-6 days

0

17:1

Toro 139-0638

LEVER-CHOKE

$2.99

$

Usually ships in 3-6 days

0

18

Toro 121-0254

GASKET-COATED, RUBBER

$8.99

$

Usually ships in 3-6 days

0

19

Toro 127-9372

PRIMER KIT

$34.99

$

Usually ships in 3-6 days

0

20

Toro 139-0625

INTERNAL CARB SERVICE KIT

$20.99

$

Usually ships in 3-6 days

0

21

Toro 121-0010

NUT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

99

Toro 139-0610

HIGH ALTITUDE KIT

Note: Not illustrated

$13.99

$

Usually ships in 3-6 days

0
