38890 (1428 OHXE) - Toro 28" Power TRX Commercial Snow Thrower (SN: 409000000 - 413999999) Main Frame Assembly Parts Diagram
28" Power TRX Commercial Snow Thrower

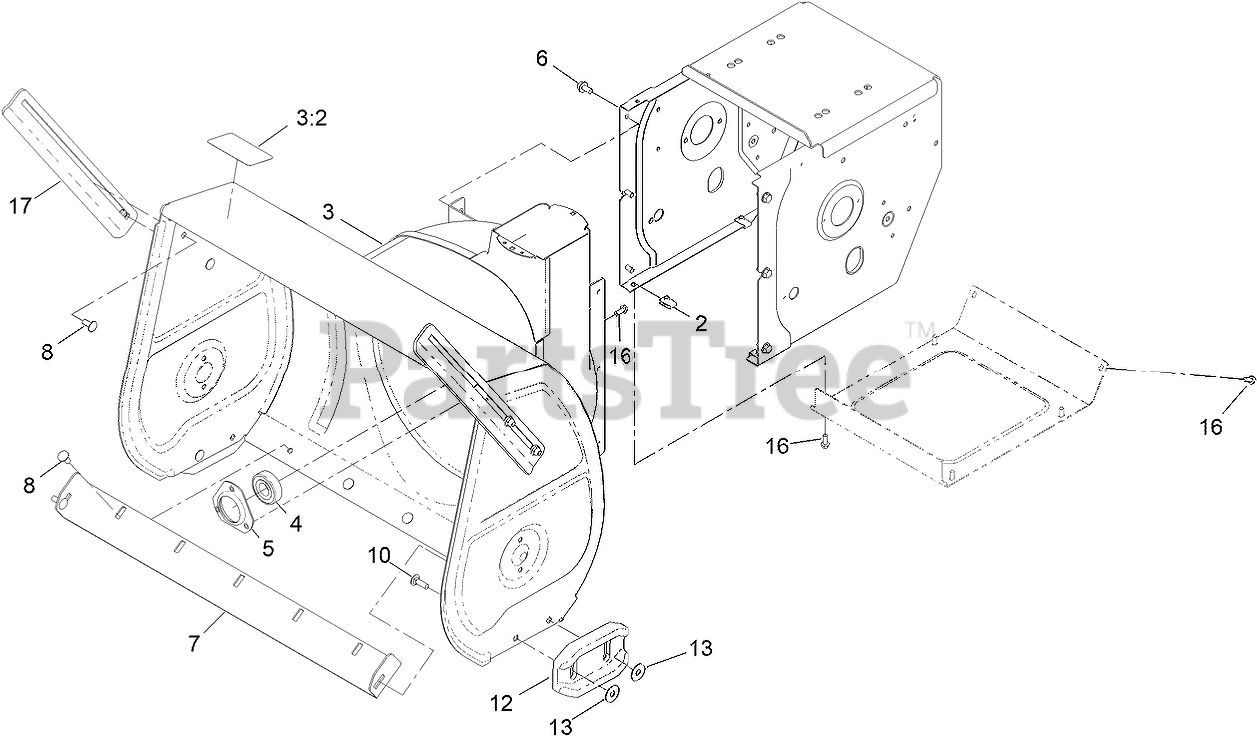

Main Frame Assembly Parts Diagram
Toro 107069
CLIP
$2.99
$
In Stock, Qty 20+
Toro 139-1562
AUGER HOUSING ASM
$618.99
$
Usually ships in 3-6 days
Toro 121-6817
DECAL-DANGER, AUGER
$3.49
$
Usually ships in 3-6 days
Toro 136-6571
BEARING-BALL
$12.99
$
Usually ships in 3-6 days
Toro 136-6573
RETAINER-BEARING
$5.99
$
Usually ships in 3-6 days
Toro 32144-14
SCREW-HWHTF
$4.99
$
In Stock, only 3 left!
Toro 136-6588-01
BLADE-SCRAPER
$35.99
$
In Stock, only 1 left!
Toro 137-3061
BOLT-CARR
$0.99
$
In Stock, Qty 20+
Toro 110-3144
BOLT-CARR
$1.49
$
Usually ships in 3-6 days
Toro 120-3098-03
SKID-CAST
$61.99
$
Usually ships in 3-6 days
Toro 119-4150
WASHER-FLAT
$0.99
$
In Stock, Qty 20+
Toro 32144-85
SCREW-HWH
$1.99
$
In Stock, Qty 20+
Toro 121-1228-03
BREAKER-DRIFT, SIDE
$65.99
$
Usually ships in 3-6 days
