38875 (1432 OHXE) - Toro 32" Power TRX Commercial Snow Thrower (SN: 413000000 - 999999999) Traction Control Assembly Parts Diagram

32" Power TRX Commercial Snow Thrower

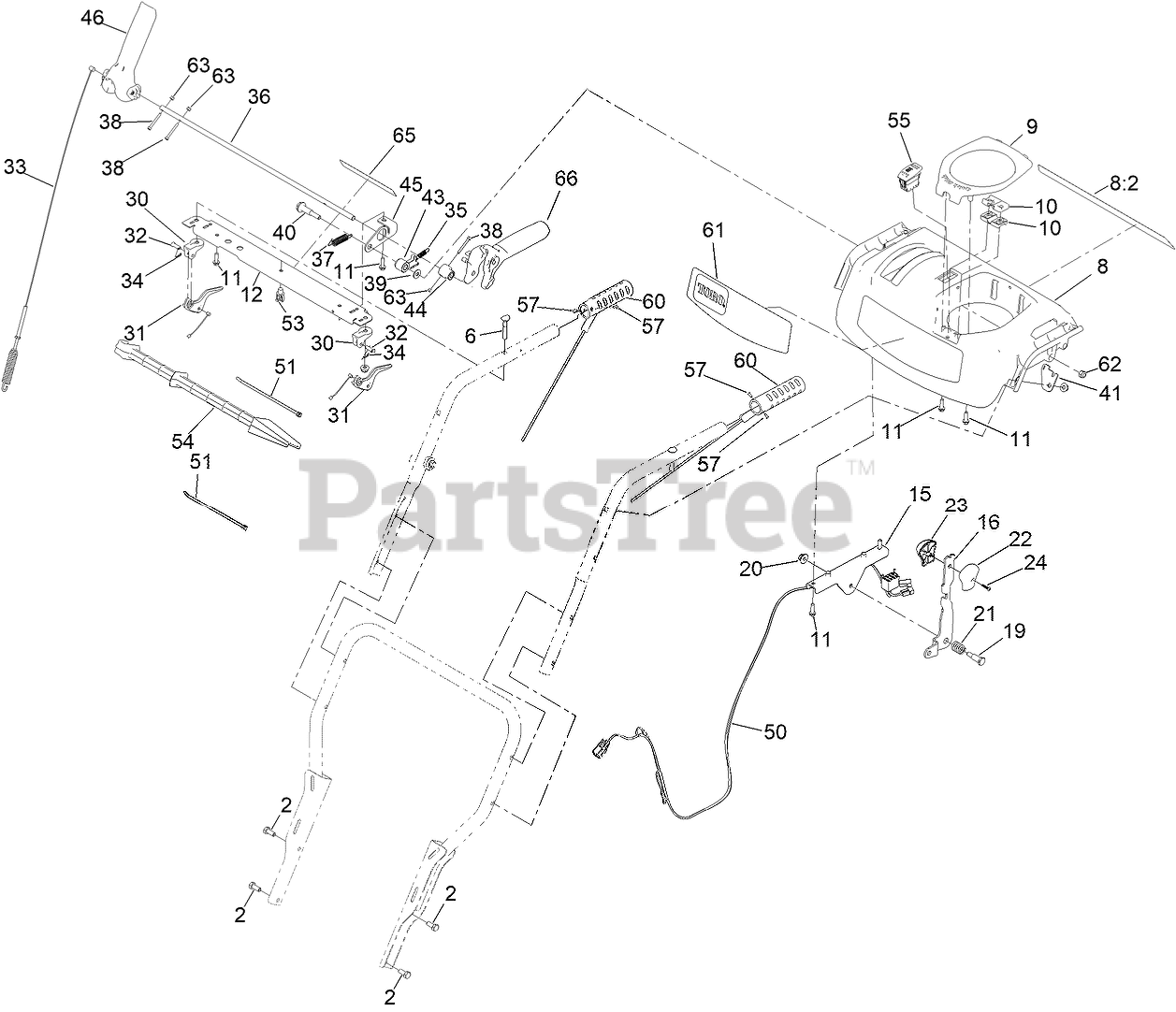

Traction Control Assembly Parts Diagram

  • Title

2

Toro 137-3052

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

6

Toro 137-3107

SCREW-HANDLE

$1.99

$

In Stock, Qty 13

0

8

Toro 145-0666

PANEL-CONTROL, ASSEMBLY

$52.99

$

Usually ships in 3-6 days

0

8:2

Toro 138-0650

DECAL-SAFETY

$3.99

$

Usually ships in 3-6 days

0

9

Toro 137-6178

COVER-QUICKSTICK

$7.99

$

In Stock, Qty 9

0

10

Toro 105-9987

SUPPORT-ROD

$8.49

$

In Stock, Qty 7

0

11

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

12

Toro 145-4075-01

BRACE-CONSOLE

$22.99

$

Usually ships in 3-6 days

0

15

Toro 137-6188-03

BRACKET-SHIFT

$6.99

$

Usually ships in 3-6 days

0

16

Toro 137-6231-03

SELECTOR-SPEED

$9.49

$

Usually ships in 3-6 days

0

19

Toro 137-3103

SCREW-SHOULDER, HH

$1.49

$

Usually ships in 3-6 days

0

20

Toro 137-3038

NUT-HF

$5.49

$

Usually ships in 3-6 days

0

21

Toro 136-7121

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

22

Toro 105-9999

KNOB-SHIFT, LH

$7.99

$

In Stock, only 4 left!

0

23

Toro 106-4423

KNOB-SHIFT, RH

$7.99

$

In Stock, only 4 left!

0

24

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

30

Toro 105-9980

MOUNT-LEVER, CLUTCH

$8.49

$

Usually ships in 3-6 days

0

31

Toro 106-4505

LEVER-CLUTCH

$8.99

$

In Stock, Qty 6

0

32

Toro 1-808265

PIN-CLEVIS

$3.49

$

In Stock, only 2 left!

0

33

Toro 138-3661

CABLE-AUGER
(Superseded to 161-0973)

$27.99

$

Usually ships in 3-6 days

0

34

Toro 108-2992

PIN-HAIR

$1.49

$

In Stock, only 4 left!

0

35

Toro 136-7161

SPRING-LOCKOUT, HANDLE

$4.99

$

Usually ships in 3-6 days

0

36

Toro 144-1343

ROD-LOCKOUT

$21.99

$

Usually ships in 3-6 days

0

37

Toro 136-7162

SPRING-RETURN, LEVER

$4.99

$

Usually ships in 3-6 days

0

38

Toro 145-0660

SCREW-HSH,SPL

$0.99

$

Usually ships in 3-6 days

0

39

Toro 98-3499

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

40

Toro 145-0687

SCREW-SHOULDER

$2.49

$

Usually ships in 0 days

0

41

Toro 144-1345

PLATE-SPRING

$

$

Currently unavailable

43

Toro 144-1342

LATCH, LOCKOUT

$6.99

$

Usually ships in 3-6 days

0

44

Toro 144-1341

CAM-LOCKOUT

$7.49

$

Usually ships in 0 days

0

45

Toro 145-0677

BRACKET-INTERLOCK

$

$

Currently unavailable

46

Toro 137-6171

LEVER-CONTROL

$12.99

$

In Stock, Qty 6

0

50

Toro 138-3644

HARNESS-WIRE, LED AND HAND WARMERS

$62.99

$

Usually ships in 3-6 days

0

51

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

53

Toro 32180-030

CLIP-TIE

$5.49

$

In Stock, Qty 7

0

54

Toro 110-3408

STICK-CLEANOUT

$17.99

$

In Stock, only 4 left!

0

55

Toro 122-1124

SWITCH-ROCKER, ON-NONE-OFF (HEATER)

$22.99

$

Usually ships in 3-6 days

0

57

Toro 3290-271

RIVET-POP

$0.99

$

Usually ships in 3-6 days

0

60

Toro 144-1602

RED HEATED GRIP

$50.99

$

Usually ships in 3-6 days

0

61

Toro 144-0329

DECAL-CONSOLE, POWERMAX TRX HD 1432

$24.99

$

Usually ships in 3-6 days

0

62

Toro 137-3093

NUT-HEX

$1.49

$

In Stock, Qty 13

0

63

Toro 140-3749

NUT-LOCK ROHS

$0.99

$

Usually ships in 3-6 days

0

65

Toro 144-1619

DECAL-HYDRO

$4.99

$

Usually ships in 3-6 days

0

66

Toro 144-1347

LEVER-CONTROL

$12.99

$

Usually ships in 3-6 days

0
