38855 (1028 OHXE) - Toro 28" Power Max Heavy-Duty Snow Thrower (SN: 414000000 - 999999999) Engine Assembly No. 3 Parts Diagram

28" Power Max Heavy-Duty Snow Thrower

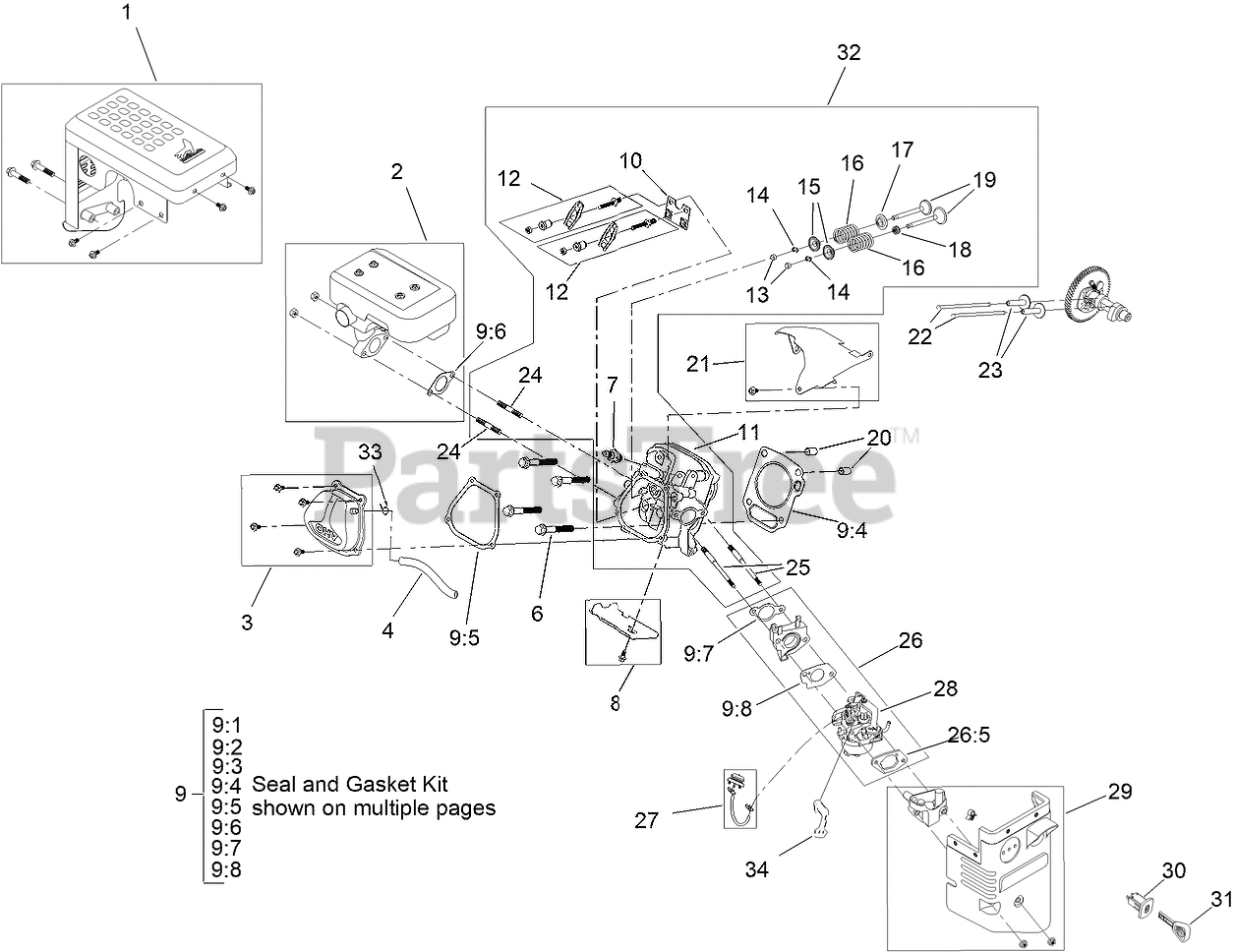

Engine Assembly No. 3 Parts Diagram

  • Title

1

Toro 121-4101

MUFFLER SHIELD KIT

$67.99

$

Usually ships in 3-6 days

0

2

Toro 127-9373

MUFFLER KIT

$107.99

$

Usually ships in 3-6 days

0

3

Toro 121-0343

VALVE COVER KIT

$26.99

$

Usually ships in 3-6 days

0

4

Toro 144-1008

TUBE-BREATHER

$3.99

$

Usually ships in 3-6 days

0

6

Toro 121-0302

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

7

Toro 119-1901

See Supercession: 81-3250
(Superseded to 81-3250)

$3.49

$

In Stock, Qty 20+

0

8

Toro 121-0348

LOWER HEAT SHROUD KIT

$10.99

$

Usually ships in 3-6 days

0

9

Toro 121-0358

SEAL AND GASKET KIT

$78.99

$

Usually ships in 3-6 days

0

9:1

Toro 121-0316

SEAL-OIL

$12.99

$

Usually ships in 3-6 days

0

9:2

Toro 121-0317

SEAL-OIL

$12.99

$

Usually ships in 3-6 days

0

9:3

Toro 121-0228

GASKET-COVER, CRANKCASE

$14.99

$

Usually ships in 3-6 days

0

9:4

Toro 121-0231

GASKET-HEAD, CYLINDER

$13.99

$

Usually ships in 3-6 days

0

9:5

Toro 121-0234

GASKET-COVER, VALVE

$10.99

$

Usually ships in 3-6 days

0

9:6

Toro 121-0272

GASKET-EXHAUST

$1.99

$

Usually ships in 3-6 days

0

9:7

Toro 121-0252

GASKET-CARBURETOR

$1.99

$

Usually ships in 3-6 days

0

9:8

Toro 121-0253

GASKET-CARBURETOR

$1.99

$

Usually ships in 3-6 days

0

10

Toro 121-0247

PLATE-GUIDE, PUSH ROD

$5.49

$

Usually ships in 3-6 days

0

11

Toro 121-0230

HEAD-CYLINDER

$143.99

$

Usually ships in 3-6 days

0

12

Toro 121-0245

ROCKER ARM ASM

$10.99

$

Usually ships in 3-6 days

0

13

Toro 121-0244

ROTATOR-VALVE

$7.49

$

Usually ships in 3-6 days

0

14

Toro 120-4307

KEEPER-VALVE

$8.49

$

In Stock, only 3 left!

0

15

Toro 120-4306

RETAINER-SPRING, VALVE

$11.99

$

In Stock, only 1 left!

0

16

Toro 120-4305

SPRING-VALVE

$6.49

$

In Stock, only 4 left!

0

17

Toro 120-4303

SEAT-SPRING, VALVE

$7.99

$

In Stock, Qty 8

0

18

Toro 120-4304

SEAL-STEM, VALVE

$18.99

$

Usually ships in 3-6 days

0

19

Toro 121-0328

VALVE KIT

$34.99

$

Usually ships in 3-6 days

0

20

Toro 120-4200

PIN-DOWEL

$2.99

$

Usually ships in 3-6 days

0

21

Toro 121-4102

UPPER HEAT SHROUD KIT

$19.99

$

Usually ships in 3-6 days

0

22

Toro 121-0246

ROD-PUSH

$15.99

$

Usually ships in 3-6 days

0

23

Toro 120-4298

LIFTER-VALVE

$14.99

$

Usually ships in 3-6 days

0

24

Toro 121-0304

STUD-MOUNT, MUFFLER

$3.99

$

Usually ships in 3-6 days

0

25

Toro 121-0303

STUD-MOUNT, CARBURETOR

$7.99

$

Usually ships in 3-6 days

0

26

Toro 144-0959

CARB SERVICE KIT

$143.99

$

Usually ships in 3-6 days

0

26:5

Toro 121-0254

GASKET-COATED, RUBBER

$8.49

$

Usually ships in 3-6 days

0

27

Toro 127-9372

PRIMER KIT

$31.99

$

Usually ships in 3-6 days

0

28

Toro 127-9143

CARB REPAIR KIT WITH GASKETS

$22.99

$

In Stock, only 2 left!

0

29

Toro 121-0355

HEATER BOX KIT

$71.99

$

Usually ships in 3-6 days

0

30

Toro 121-0283

SWITCH-KEY

$9.49

$

In Stock, Qty 11

0

31

Toro 117-7728

KEY

$4.49

$

In Stock, Qty 20+

0

32

Toro 133-9855

COMPLETE HEAD ASM

$230.99

$

Usually ships in 3-6 days

0

33

Toro 127-9408

CLAMP-HOSE

$1.49

$

Usually ships in 3-6 days

0

34

Toro 139-0638

LEVER-CHOKE

$2.49

$

Usually ships in 3-6 days

0

99

Toro 144-0969

High Altitude Kit

Note: Not illustrated

$12.99

$

Usually ships in 3-6 days

0
