38850 (928 OAE) - Toro 28" Power Max Heavy-Duty Snow Thrower (SN: 411400000 - 413969999) Engine Assembly Parts Diagram

28" Power Max Heavy-Duty Snow Thrower

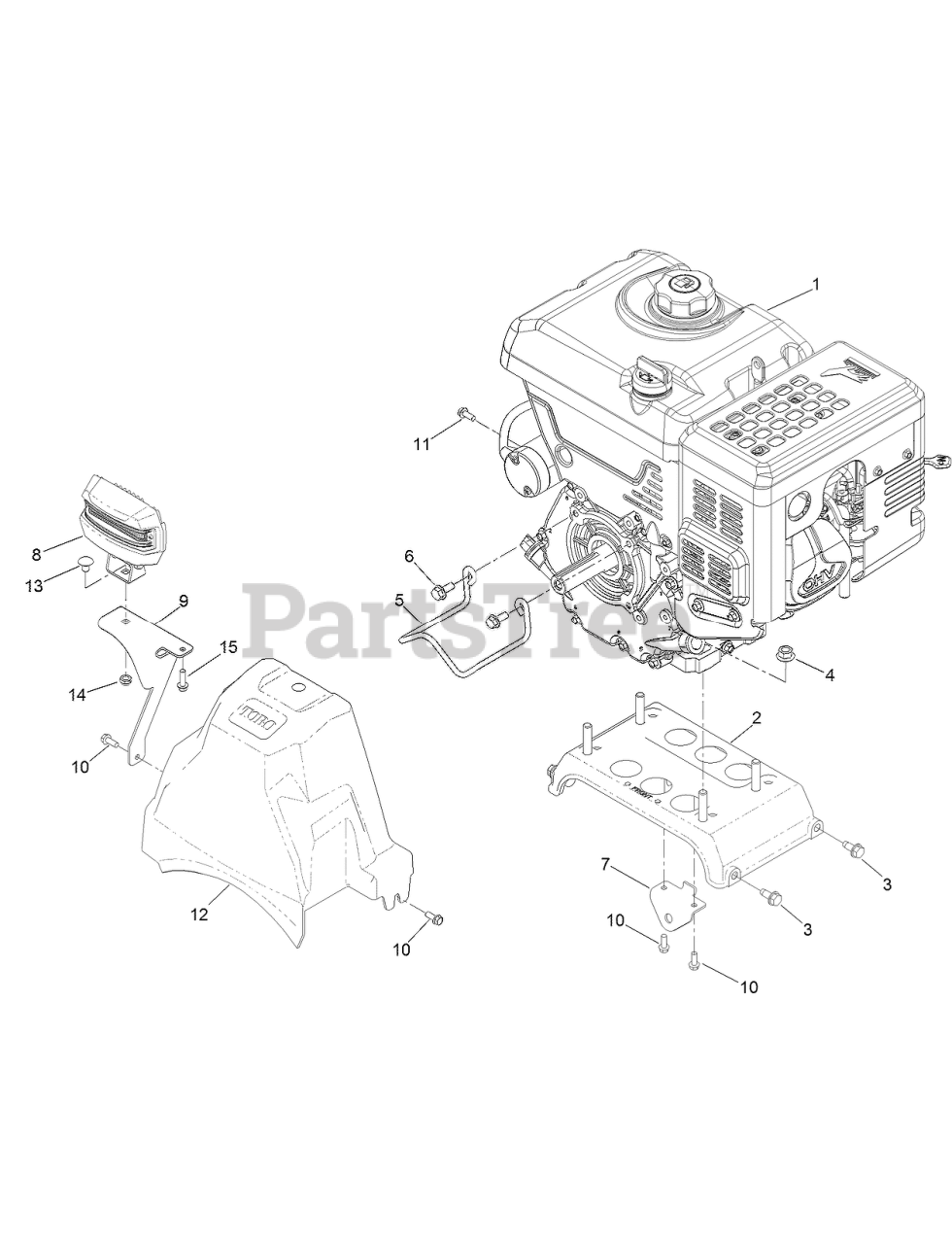

Engine Assembly Parts Diagram

  • Title

1

Toro 139-0730

ENGINE-LC175FDS-1

$1148.99

$

Usually ships in 3-6 days

0

2

Toro 138-0695

ENGINE PLATE ASM

$44.99

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 136-8683

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

0

5

Toro 136-8673

GUIDE-BELT

$11.99

$

Usually ships in 3-6 days

0

6

Toro 138-0690

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

7

Toro 136-6644-03

BRACKET-CONTROL, TRACTION

$2.99

$

Usually ships in 3-6 days

0

8

Toro 138-0670

LED LIGHT ASM

$98.99

$

Usually ships in 3-6 days

0

9

Toro 138-0683-03

BRACKET-LIGHT

$8.99

$

Usually ships in 3-6 days

0

10

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

11

Toro 121-4615

SCREW-HH

$

$

Currently unavailable

12

Toro 136-6606

COVER-BELT

$21.99

$

Usually ships in 3-6 days

0

13

Toro 3230-19

BOLT-CARR

$6.49

$

In Stock, only 3 left!

0

14

Toro 137-3089

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

15

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0
