38850 (928 OAE) - Toro 28" Power Max Heavy-Duty Snow Thrower (SN: 400000000 - 405578399) Autoturn Drive Assembly Parts Diagram

28" Power Max Heavy-Duty Snow Thrower

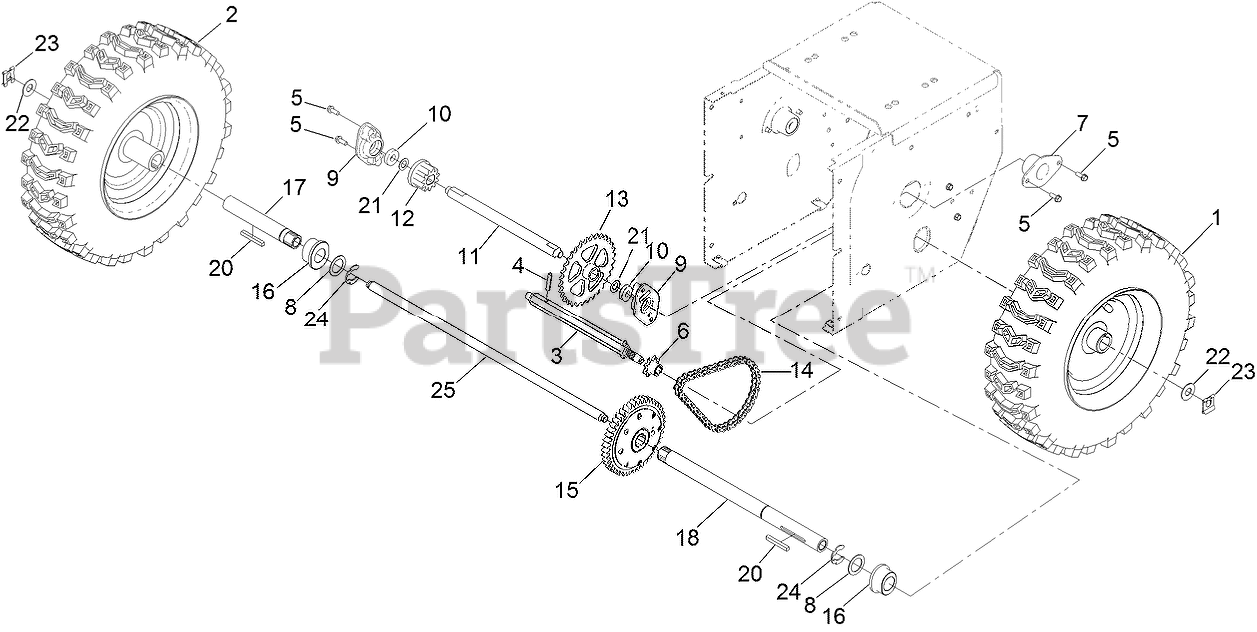

Autoturn Drive Assembly Parts Diagram

  • Title

1

Toro 137-6185

LH WHEEL AND TIRE ASM

$117.99

$

Usually ships in 3-6 days

0

2

Toro 137-6184

RH WHEEL AND TIRE ASM

$117.99

$

Usually ships in 3-6 days

0

3

Toro 138-0745

SHAFT-HEX

$46.99

$

Usually ships in 3-6 days

0

4

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 9

0

5

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

6

Toro 125-1134

GEAR-PINION, 8 TOOTH

$6.49

$

Usually ships in 3-6 days

0

7

Toro 108-7319

RETAINER-BEARING

$29.99

$

Usually ships in 3-6 days

0

8

Toro 138-0725

WASHER-THRUST

$1.49

$

Usually ships in 3-6 days

0

9

Toro 136-6697

RETAINER-BEARING, INTERMEDIATE

$9.99

$

Usually ships in 3-6 days

0

10

Toro 52-2450

BEARING-WHEEL

$17.99

$

In Stock, Qty 20+

0

11

Toro 136-6692

SHAFT-INTERMEDIATE

$29.99

$

Usually ships in 3-6 days

0

12

Toro 136-6699

TOOTH-GEAR, 11

$10.99

$

Usually ships in 3-6 days

0

13

Toro 136-6698

SPROCKET-32T

$25.99

$

Usually ships in 3-6 days

0

14

Toro 108-0016

CHAIN-ROLLER

$58.99

$

Usually ships in 3-6 days

0

15

Toro 137-6195

TRANSMISSION-GT, DI310

$215.99

$

Usually ships in 3-6 days

0

16

Toro 136-6641

BUSHING-AXLE

$6.99

$

Usually ships in 3-6 days

0

17

Toro 138-3618

AXLE-TUBE, RH

$60.99

$

Usually ships in 3-6 days

0

18

Toro 138-3617

AXLE-TUBE, LH

$77.99

$

Usually ships in 3-6 days

0

20

Toro 5-1336

KEY-SQUARE

$10.99

$

In Stock, Qty 5

0

21

Toro 36-4780

WASHER-PLAIN

$7.99

$

In Stock, only 2 left!

0

22

Toro HDW14428

WASHER

$1.49

$

In Stock, only 1 left!

0

23

Toro 138-8491

CLIP-PIN

$7.49

$

In Stock, only 1 left!

0

24

Toro 32151-91

RING-RETAINING

$2.49

$

In Stock, Qty 5

0

25

Toro 136-6696

AXLE-BASE

$29.99

$

Usually ships in 3-6 days

0
