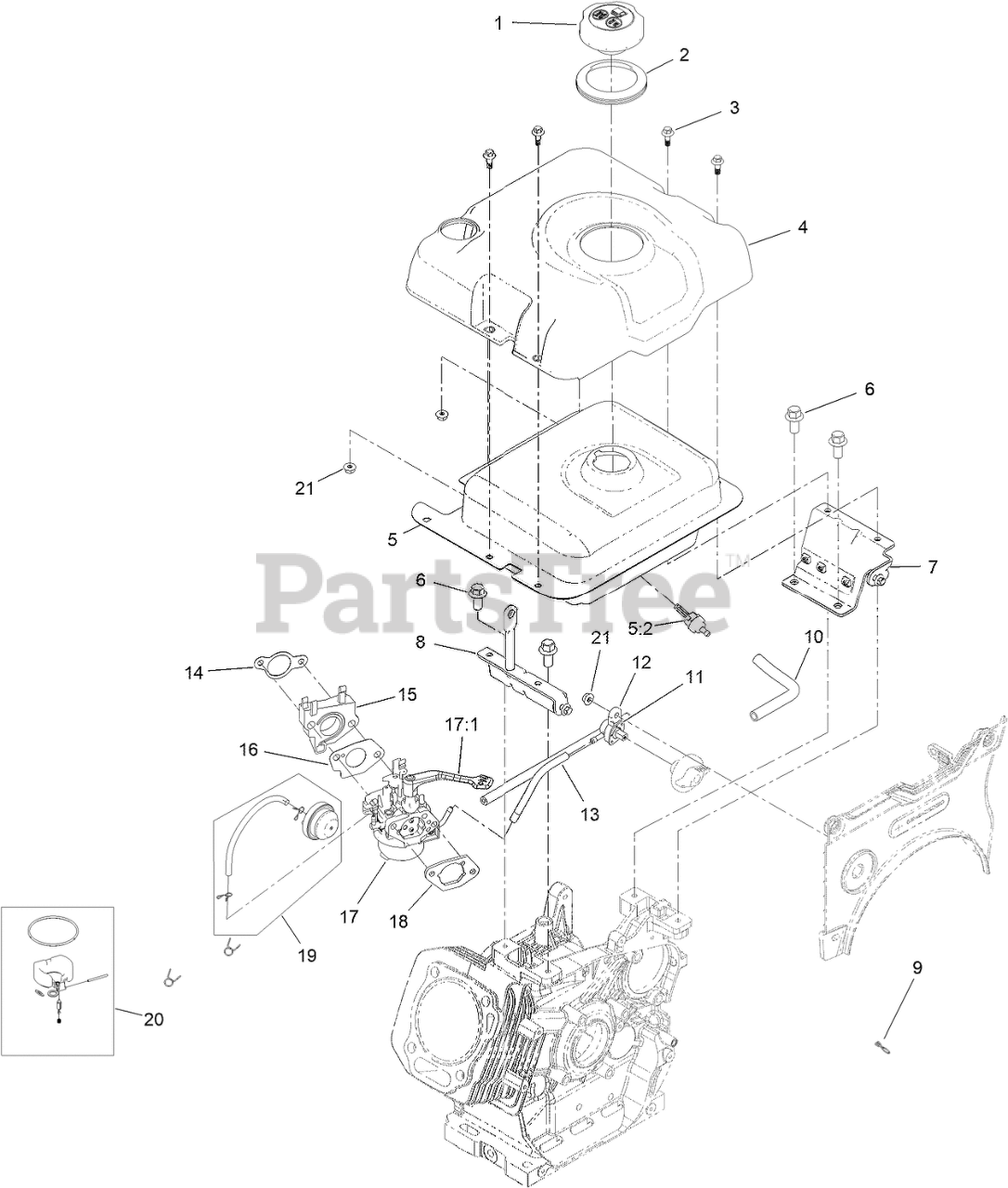

38844 (1432 OHXE) - Toro 32" Power Max Commercial Snow Thrower (SN: 414000000 - 999999999) Fuel Systems and Carburetor Assembly Parts Diagram

32" Power Max Commercial Snow Thrower

Fuel Systems and Carburetor Assembly Parts Diagram

  • Title

1

Toro 133-9823

CAP-FUEL

$19.99

$

In Stock, Qty 5

0

2

Toro 121-0324

INSERT-COVER, TANK

$3.49

$

Usually ships in 3-6 days

0

3

Toro 121-0296

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

4

Toro 139-0574

COVER-TANK, FUEL

$69.99

$

Usually ships in 3-6 days

0

5

Toro 139-0567

FUEL TANK AND FILTER ASM

$100.99

$

Usually ships in 3-6 days

0

5:2

Toro 127-9065

FILTER-FUEL

$5.99

$

Usually ships in 3-6 days

0

6

Toro 139-0569

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

7

Toro 139-0571

BRACKET-TANK, RIGHT

$20.99

$

Usually ships in 3-6 days

0

8

Toro 139-0570

BRACKET-TANK, LEFT

$20.99

$

Usually ships in 3-6 days

0

9

Toro 147-7077

CLIP-HOSE

$

$

Currently unavailable

10

Toro 147-7078

SLEEVE-ABRASION

$

$

Currently unavailable

11

Toro 147-7076

HOSE-FUEL

$

$

Currently unavailable

12

Toro 121-0258

VALVE-FUEL

$10.99

$

Usually ships in 3-6 days

0

13

Toro 147-7094

HOSE-FUEL

$

$

Currently unavailable

14

Toro 139-0579

GASKET-CARBURETOR

$1.49

$

Usually ships in 3-6 days

0

15

Toro 139-0580

INSULATOR-CARBURETOR

$5.99

$

Usually ships in 3-6 days

0

16

Toro 139-0581

GASKET-CARBURETOR

$1.49

$

Usually ships in 3-6 days

0

17

Toro 139-0594

CARBURETOR ASM

$108.99

$

Usually ships in 3-6 days

0

17:1

Toro 139-0638

LEVER-CHOKE

$2.49

$

Usually ships in 3-6 days

0

18

Toro 121-0254

GASKET-COATED, RUBBER

$8.49

$

Usually ships in 3-6 days

0

19

Toro 127-9372

PRIMER KIT

$31.99

$

Usually ships in 3-6 days

0

20

Toro 139-0625

INTERNAL CARB SERVICE KIT

$19.99

$

Usually ships in 3-6 days

0

21

Toro 121-0010

NUT-FLANGE

$1.49

$

Usually ships in 3-6 days

0

99

Toro 139-0610

HIGH ALTITUDE KIT

Note: Not illustrated

$12.99

$

Usually ships in 3-6 days

0
