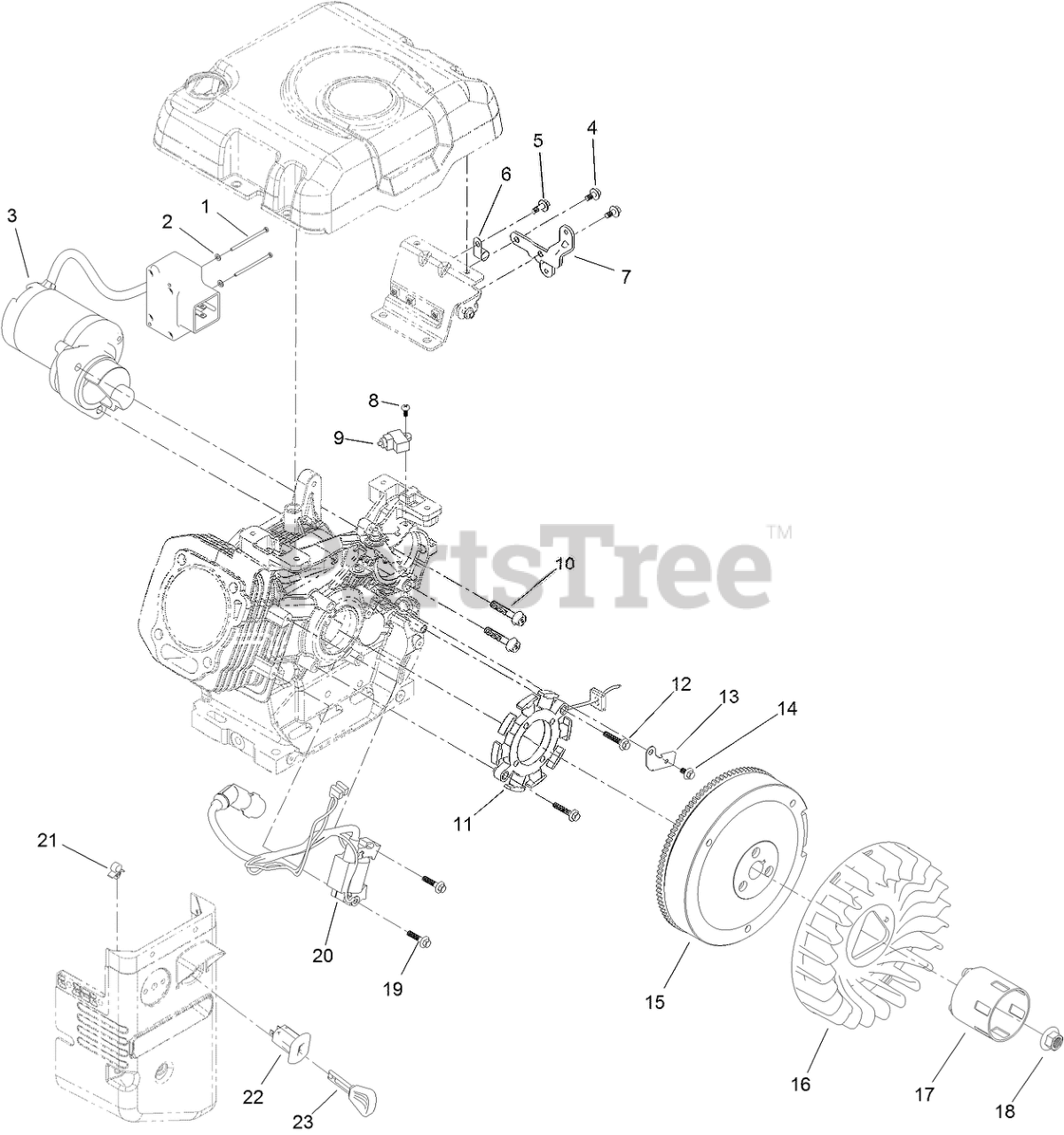

38842 (1232 OHXE) - Toro 32" Power Max Heavy-Duty Snow Thrower (SN: 414000000 - 414999999) Ignition and Electrical Assembly Parts Diagram

32" Power Max Heavy-Duty Snow Thrower

Ignition and Electrical Assembly Parts Diagram

  • Title

1

Toro 121-0306

SCREW-BHP

$1.49

$

In Stock, Qty 7

0

2

Toro 121-0312

WASHER-PLAIN

$1.49

$

In Stock, only 3 left!

0

3

Toro 144-0991

MOTOR-STARTER

$371.99

$

Usually ships in 3-6 days

0

4

Toro 121-0294

SCREW-HHF

$1.99

$

In Stock, only 4 left!

0

5

Toro 121-0296

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

6

Toro 121-0017

CLIP-HARNESS, WIRE

$2.49

$

Usually ships in 3-6 days

0

7

Toro 139-0572

BRACKET-BOX, SWITCH

$8.99

$

Usually ships in 3-6 days

0

8

Toro 120-4461

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

9

Toro 139-0563

SWITCH-STOP, ENGINE

$20.99

$

Usually ships in 3-6 days

0

10

Toro 121-0298

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

11

Toro 121-4108

STATOR COIL ASM

$51.99

$

Usually ships in 3-6 days

0

12

Toro 120-4223

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

13

Toro 139-0555

CLAMP-WIRE, CHARGE

$2.99

$

Usually ships in 3-6 days

0

14

Toro 121-0118

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

15

Toro 139-0558

FLYWHEEL ASM

$155.99

$

Usually ships in 3-6 days

0

16

Toro 139-0559

FAN-COOLING

$18.99

$

Usually ships in 3-6 days

0

17

Toro 139-0560

CUP-STARTER

$19.99

$

Usually ships in 3-6 days

0

18

Toro 121-0309

NUT-FLANGE

$2.99

$

Usually ships in 3-6 days

0

19

Toro 121-0097

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

20

Toro 139-0557

IGNITION COIL ASM

$74.99

$

Usually ships in 3-6 days

0

21

Toro 121-0326

CLIP

$1.99

$

Usually ships in 3-6 days

0

22

Toro 121-0283

SWITCH-KEY

$9.49

$

In Stock, Qty 10

0

23

Toro 117-7728

KEY

$4.49

$

In Stock, Qty 20+

0
