38842 (1232 OHXE) - Toro 32" Power Max Heavy-Duty Snow Thrower (SN: 404500000 - 408650750) Auger Assembly Parts Diagram

32" Power Max Heavy-Duty Snow Thrower

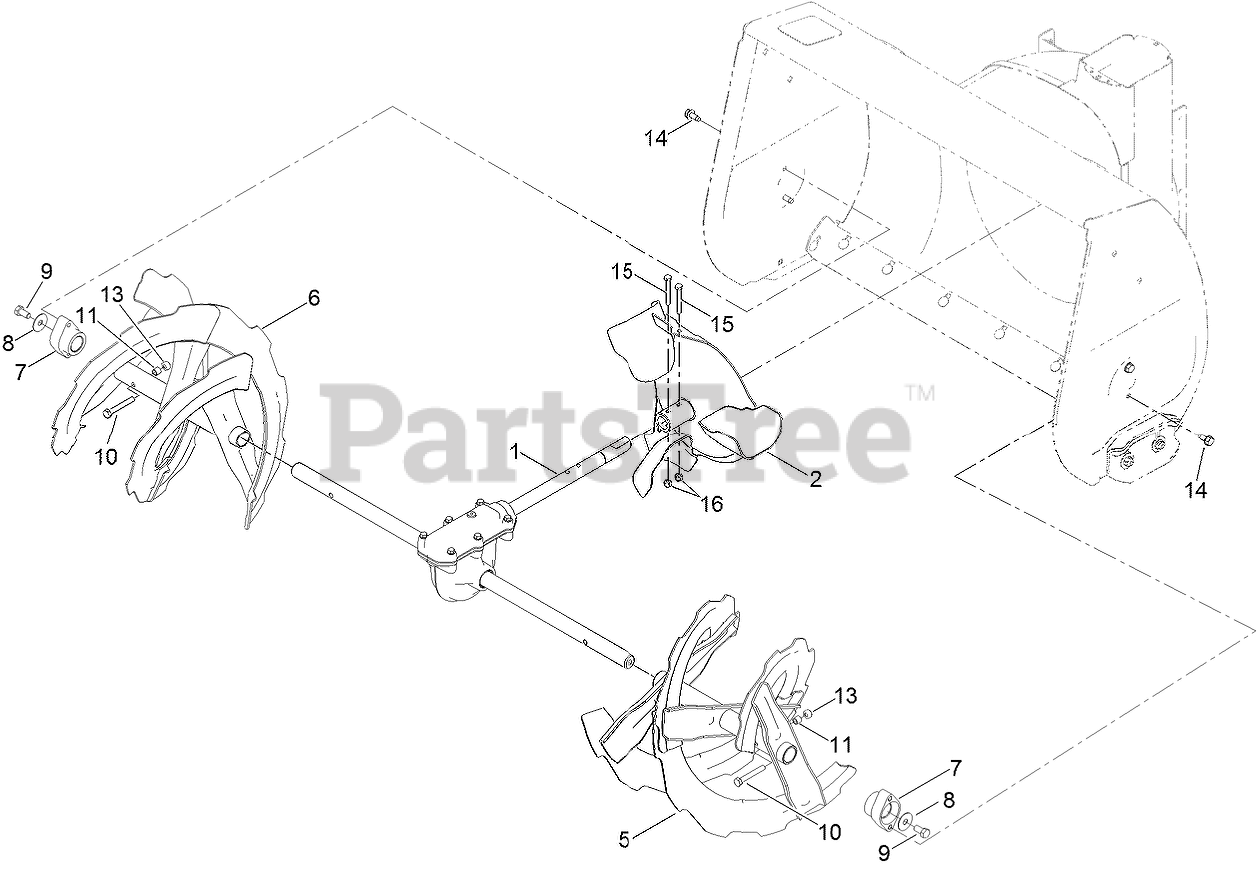

Auger Assembly Parts Diagram

  • Title
1

Toro 136-6620

AUGER GEARCASE ASM

$533.99

$

Usually ships in 3-6 days

0

2

Toro 136-6570-03

IMPELLER

$142.99

$

Usually ships in 3-6 days

0

5

Toro 136-6597-03

AUGER-LH, 32 INCH

$249.99

$

Usually ships in 3-6 days

0

6

Toro 136-6598-03

AUGER-RH, 32 INCH

$249.99

$

Usually ships in 3-6 days

0

7

Toro 106-4570

BEARING-AUGER

$27.99

$

Usually ships in 3-6 days

0

8

Toro 3-0750

WASHER

$9.49

$

In Stock, only 2 left!

0

9

Toro 137-3066

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

10

Toro 120-9738

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 136-7148

SPACER-GROMMET

$1.49

$

In Stock, Qty 20+

0

13

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

14

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

15

Toro 137-3032

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

16

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0
