38838 (828 OAE) - Toro 28" Power Max Heavy-Duty Snow Thrower (SN: 413000000 - 414003559) Engine Assembly Parts Diagram

28" Power Max Heavy-Duty Snow Thrower

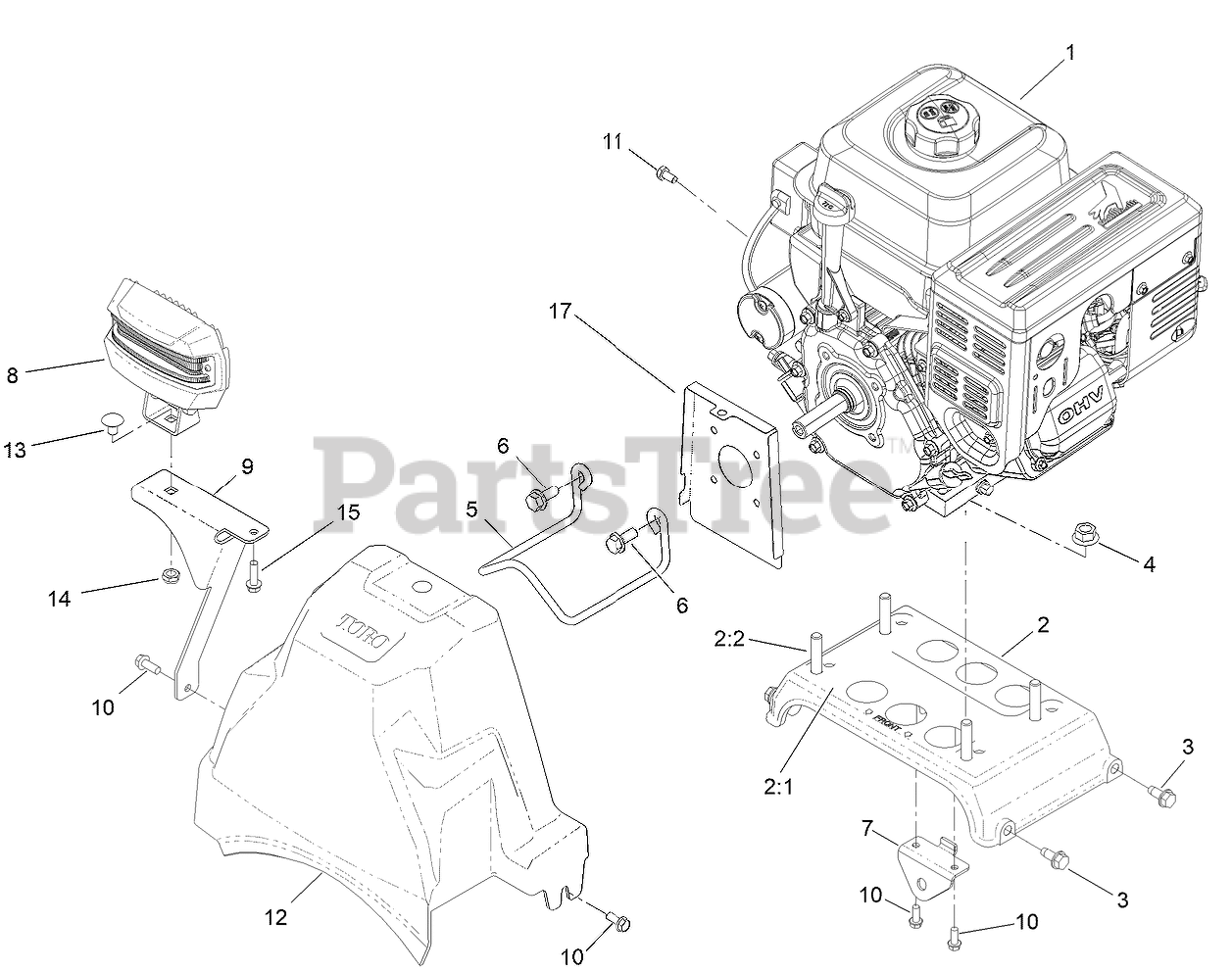

Engine Assembly Parts Diagram

  • Title

1

Toro 136-7756

ENGINE-G250FDS-1

$

$

Not available

2

Toro 144-1625

ENGINE PLATE ASM (G250)

$44.99

$

Usually ships in 3-6 days

0

2:1

Toro 144-1626

PLATE-ENGINE

$42.99

$

Usually ships in 3-6 days

0

2:2

Toro 136-7178

STUD-PRESS 95/16-18 X 1.625)

$1.49

$

Usually ships in 3-6 days

0

3

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

5

Toro 144-2816

GUIDE-BELT

$8.49

$

Usually ships in 3-6 days

0

6

Toro 138-0690

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

7

Toro 136-6644-03

BRACKET-CONTROL, TRACTION

$2.99

$

Usually ships in 3-6 days

0

8

Toro 138-0670

LED LIGHT ASM

$98.99

$

Usually ships in 3-6 days

0

9

Toro 138-0683-03

BRACKET-LIGHT

$8.99

$

Usually ships in 3-6 days

0

10

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

11

Toro 121-4615

SCREW-HH

$

$

Currently unavailable

12

Toro 136-6606

COVER-BELT

$21.99

$

Usually ships in 3-6 days

0

13

Toro 3230-19

BOLT-CARR

$6.49

$

In Stock, only 3 left!

0

14

Toro 137-3089

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

15

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

17

Toro 140-7945-03

COVER-CRANK

$22.99

$

Usually ships in 3-6 days

0
