38838 (828 OAE) - Toro 28" Power Max Heavy-Duty Snow Thrower (SN: 400000000 - 408719350) Chute Assembly Parts Diagram

28" Power Max Heavy-Duty Snow Thrower

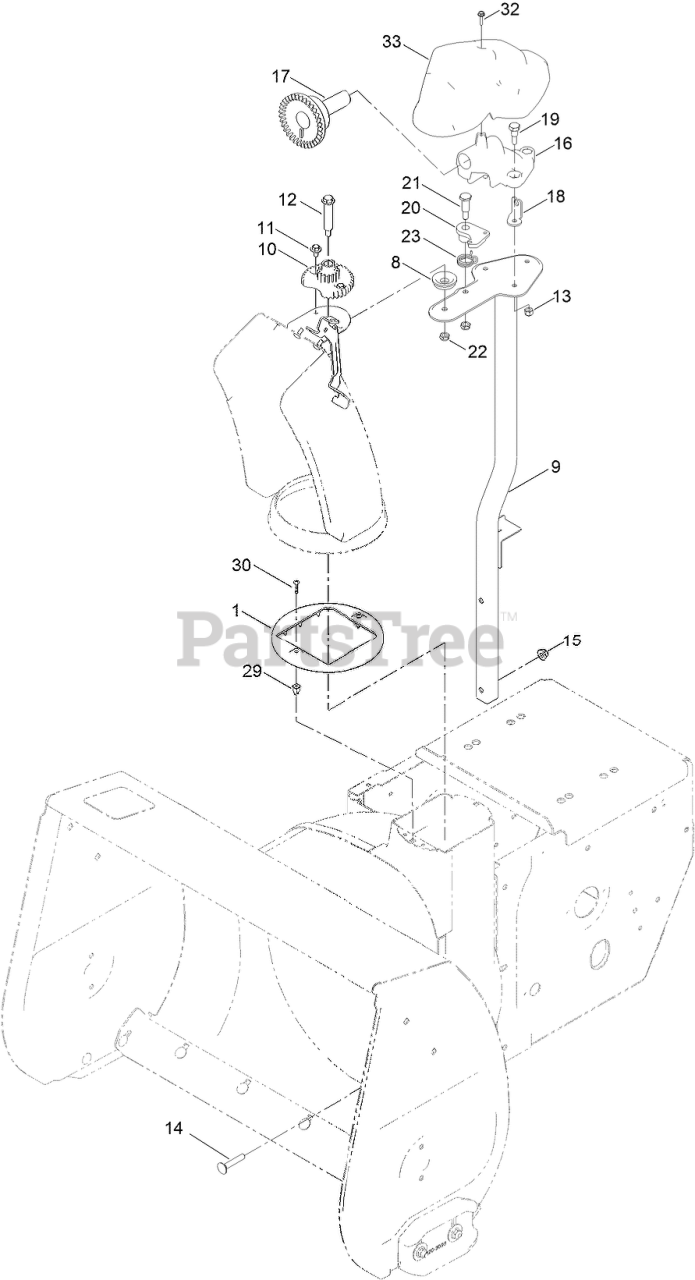

Chute Assembly Parts Diagram

  • Title

1

Toro 136-6515

GUIDE-CHUTE

$11.99

$

Usually ships in 3-6 days

0

8

Toro 106-4422

SPACER-CHUTE

$3.99

$

In Stock, only 1 left!

0

9

Toro 137-6245-03

CHUTE POST ASM

$31.99

$

Usually ships in 3-6 days

0

10

Toro 106-4472

GEAR-CHUTE

$18.99

$

Usually ships in 3-6 days

0

11

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

12

Toro 136-7199

BOLT-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

13

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

14

Toro 137-3063

BOLT-CAR

$1.49

$

Usually ships in 3-6 days

0

15

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

16

Toro 136-6517

MOUNT-GEAR, FACE

$13.99

$

Usually ships in 3-6 days

0

17

Toro 106-4471

GEAR-FACE

$27.99

$

In Stock, only 1 left!

0

18

Toro 136-6676

ANCHOR-CABLE

$1.99

$

In Stock, only 1 left!

0

19

Toro 136-7197

SCREW-SHOULDER

$1.99

$

In Stock, only 1 left!

0

20

Toro 136-6525

LATCH-CHUTE

$4.99

$

In Stock, only 1 left!

0

21

Toro 137-3103

SCREW-SHOULDER, HH

$1.49

$

Usually ships in 3-6 days

0

22

Toro 137-3089

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

23

Toro 108-7315

SPRING-TORSION

$5.99

$

In Stock, Qty 7

0

29

Toro 136-6586

GROMMET-SCREW

$0.99

$

Usually ships in 3-6 days

0

30

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

32

Toro 137-3110

SCREW-PLASTITE, HWH

$2.99

$

In Stock, only 1 left!

0

33

Toro 136-6672

COVER-GEAR, FACE

$11.99

$

In Stock, only 1 left!

0
