38834 (1028 OXE) - Toro 28" Power Max Heavy-Duty Snow Thrower (SN: 400000000 - 999999999) WHEEL CLUTCH ASSEMBLY Parts Diagram

28" Power Max Heavy-Duty Snow Thrower

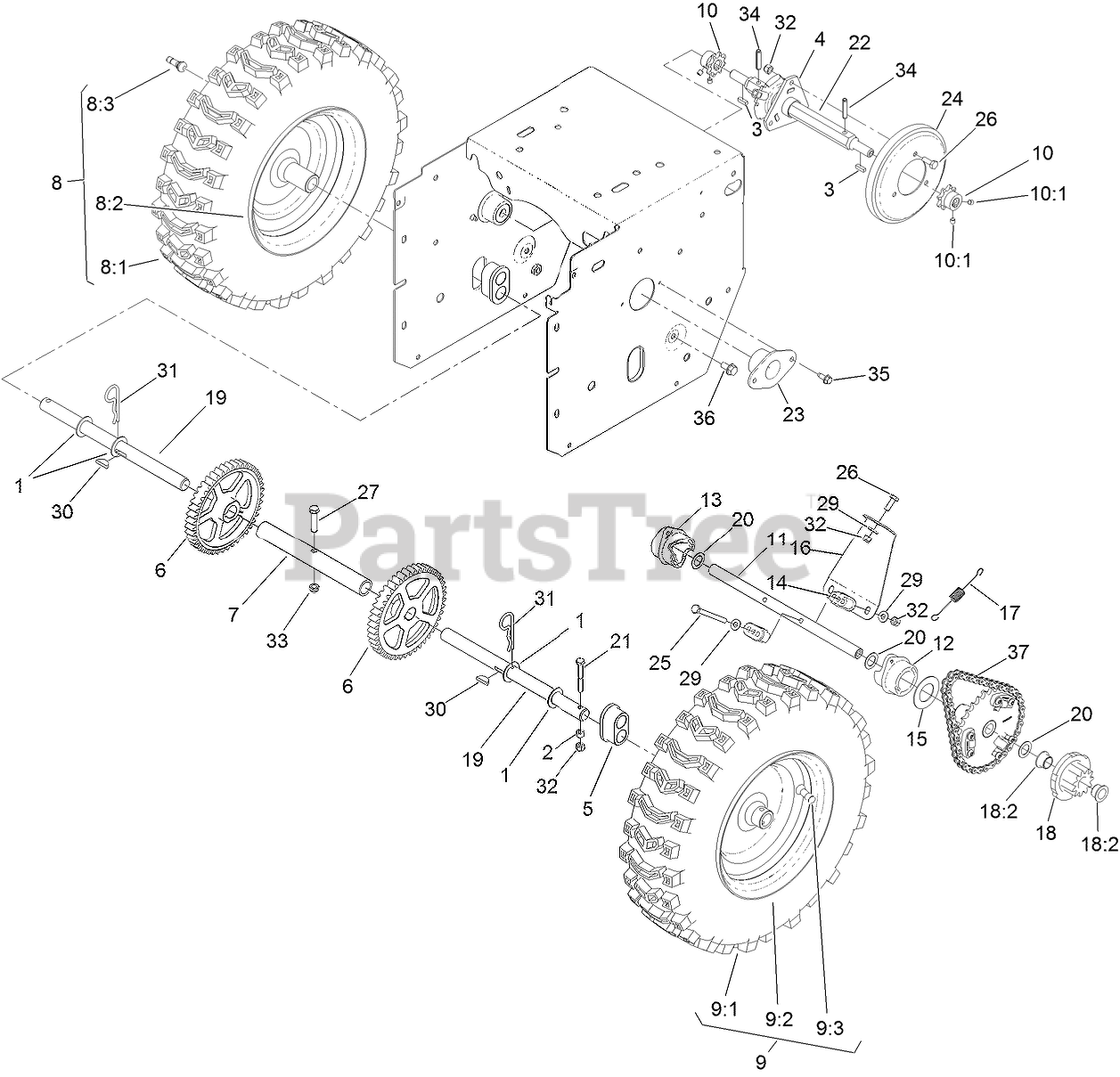

WHEEL CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 3-8664

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

2

Toro 55-9370

SPACER-BLADE, ROTOR

$2.99

$

In Stock, only 2 left!

0

3

Toro 94-8850

KEY-SQUARE

$2.99

$

Usually ships in 3-6 days

0

4

Toro 106-4434

TRUNNION-HEX

$106.99

$

Usually ships in 3-6 days

0

5

Toro 106-4558

BEARING-AXLE

$31.99

$

Usually ships in 3-6 days

0

6

Toro 106-4572

GEAR-AXLE, 44 TOOTH

$83.99

$

Usually ships in 3-6 days

0

7

Toro 106-7259

TUBE-AXLE

$92.99

$

Usually ships in 3-6 days

0

8

RH WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

8:1

Toro 121-6610

RIM-TIRE

$90.99

$

Usually ships in 3-6 days

0

8:2

Toro 121-6611

TIRE

$96.99

$

Usually ships in 3-6 days

0

8:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

9

LH WHEEL AND TIRE ASM

Note: Not serviced separately

$

$

Not available

9:1

Toro 121-6610

RIM-TIRE

$90.99

$

Usually ships in 3-6 days

0

9:2

Toro 121-6611

TIRE

$96.99

$

Usually ships in 3-6 days

0

9:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

10

Toro 106-7317

SPROCKET-8 TOOTH

$37.99

$

Usually ships in 3-6 days

0

10:1

Toro 3245-32

SCREW-HSH

$5.49

$

In Stock, only 3 left!

0

11

Toro 107-8883

SHAFT-INTERMEDIATE

$61.99

$

Usually ships in 3-6 days

0

12

Toro 107-8887

COLLAR-SHIFT, LH

$11.99

$

Usually ships in 3-6 days

0

13

Toro 107-8888

COLLAR-SHIFT, RH

$11.99

$

Usually ships in 3-6 days

0

14

Toro 107-8889

GUIDE-COLLAR

$5.49

$

Usually ships in 3-6 days

0

15

Toro 107-8891

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

16

Toro 107-8892-03

BRACE-COLLAR, SHIFT

$11.99

$

Usually ships in 3-6 days

0

17

Toro 107-8893

SPRING-EXTENSION

$7.99

$

Usually ships in 3-6 days

0

18

Toro 107-8894

11T GEAR ASM

$61.99

$

Usually ships in 3-6 days

0

18:2

Toro 108-2973

BUSHING-FLANGE

$6.49

$

Usually ships in 3-6 days

0

19

Toro 107-8898

SHAFT-AXLE

$58.99

$

Usually ships in 3-6 days

0

20

Toro 108-0015

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

21

Toro 108-2975

SCREW-HH

$5.49

$

In Stock, Qty 10

0

22

Toro 108-7314

SHAFT-HEX

$94.99

$

Usually ships in 3-6 days

0

23

Toro 108-7319

RETAINER-BEARING

$30.99

$

Usually ships in 3-6 days

0

24

Toro 119-1567

WHEEL-FRICTION

$47.99

$

In Stock, only 1 left!

0

25

Toro 120-2778

SCREW-HH

$

$

Currently unavailable

26

Toro 137-3042

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

27

Toro 137-3051

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

29

Toro 120-9679

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

30

Toro 3257-7

KEY-WOODRUFF

$9.99

$

In Stock, only 3 left!

0

31

Toro 3290-343

PIN-HAIR

$0.99

$

In Stock, only 3 left!

0

32

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

33

Toro 137-3089

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

34

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 9

0

35

Toro 137-3043

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

36

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

37

Toro 108-0016

CHAIN-ROLLER

$60.99

$

Usually ships in 3-6 days

0

37

Toro 2710-6

LINK-CONNECTING

$19.99

$

Usually ships in 3-6 days

0
