38833 (926 OHXE) - Toro 26" Power Max Heavy-Duty Snow Thrower (SN: 400000000 - 999999999) CHUTE ASSEMBLY Parts Diagram

26" Power Max Heavy-Duty Snow Thrower

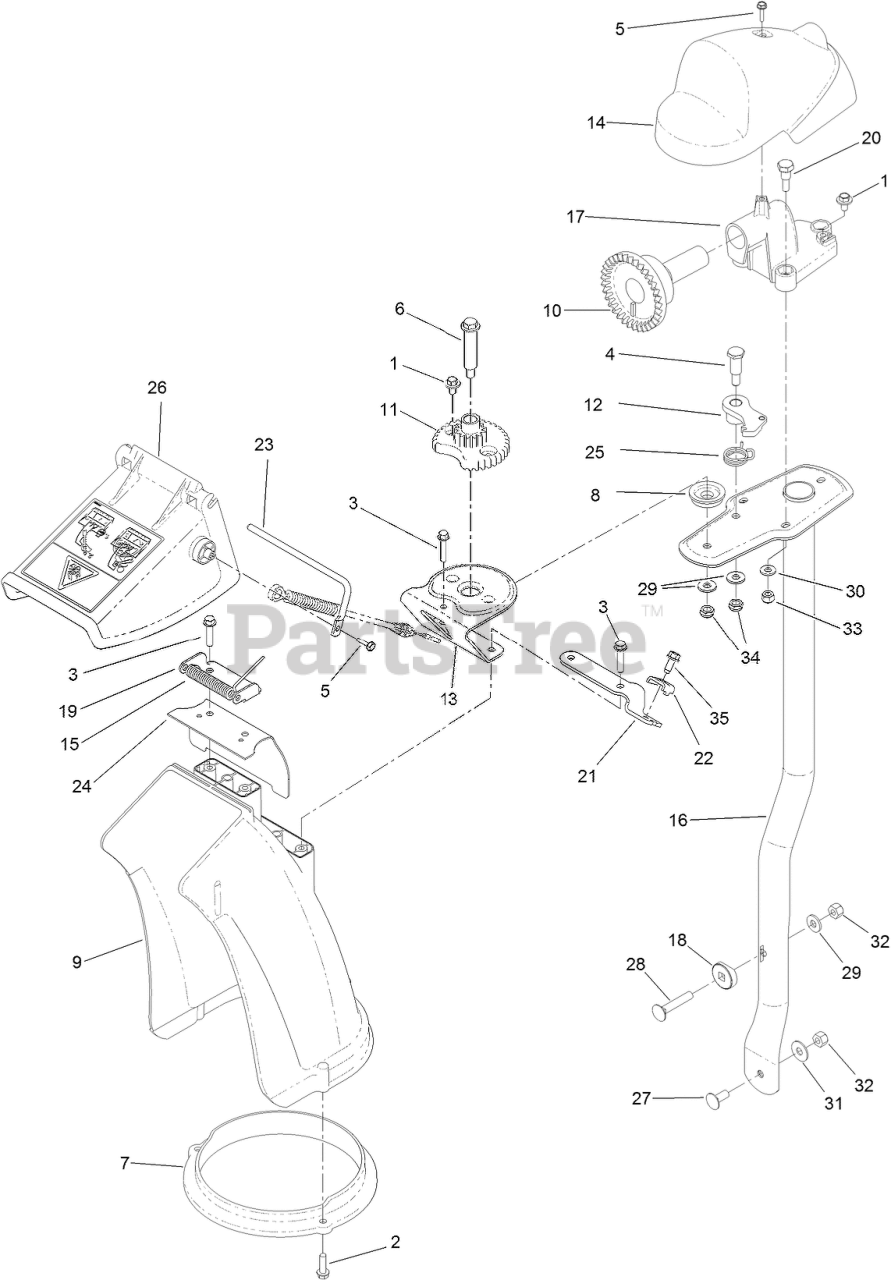

CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 46-6810

SCREW AND WASHER ASM

$5.49

$

Usually ships in 3-6 days

0

2

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

3

Toro 137-3100

SCREW-PLASTITE, HWH
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 6

0

4

Toro 137-3103

SCREW-SHOULDER, HH

$1.49

$

Usually ships in 3-6 days

0

5

Toro 137-3110

SCREW-PLASTITE, HWH

$2.99

$

In Stock, only 1 left!

0

6

Toro 136-7199

BOLT-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

7

Toro 105-9991

RING-CHUTE

$13.99

$

In Stock, Qty 7

0

8

Toro 106-4422

SPACER-CHUTE

$3.99

$

In Stock, only 1 left!

0

9

Toro 106-4440

CHUTE-DISCHARGE

$77.99

$

Usually ships in 3-6 days

0

10

Toro 106-4471

GEAR-FACE

$27.99

$

In Stock, only 1 left!

0

11

Toro 106-4472

GEAR-CHUTE

$18.99

$

Usually ships in 3-6 days

0

12

Toro 106-4476

LATCH-CHUTE

$17.99

$

Usually ships in 3-6 days

0

13

Toro 106-4582-03

BRACKET-SUPPORT, CHUTE

$14.99

$

Usually ships in 3-6 days

0

14

Toro 106-4585

COVER-GEAR, CHUTE

$14.99

$

Usually ships in 3-6 days

0

15

Toro 136-7104

SPRING-TORSION

$3.99

$

Usually ships in 3-6 days

0

16

Toro 106-7253-03

TUBE-SUPPORT

$129.99

$

Usually ships in 3-6 days

0

17

Toro 106-7257

MOUNT-GEAR, FACE

$28.99

$

Usually ships in 3-6 days

0

18

Toro 106-7260

WASHER-CURVED

$9.49

$

Usually ships in 3-6 days

0

19

Toro 136-7105

BRACKET-DEFLECTOR

$8.49

$

Usually ships in 3-6 days

0

20

Toro 136-7197

SCREW-SHOULDER

$1.99

$

In Stock, only 1 left!

0

21

Toro 136-7107

BRACKET-CLAMP, CABLE

$11.99

$

Usually ships in 3-6 days

0

22

Toro 136-7191

CLAMP-CABLE

$4.99

$

Usually ships in 3-6 days

0

23

Toro 136-7111

ROD-DEFLECTOR

$5.99

$

Usually ships in 3-6 days

0

24

Toro 108-5052

SEAL-CHUTE

$8.99

$

In Stock, only 3 left!

0

25

Toro 108-7315

SPRING-TORSION

$5.99

$

In Stock, Qty 7

0

26

Toro 112-6629

DEFLECTOR-CHUTE, CE

$47.99

$

In Stock, only 4 left!

0

27

Toro 137-3061

BOLT-CARR

$0.99

$

In Stock, Qty 20+

0

28

Toro 137-3063

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

29

Toro 120-9646

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

30

Toro 120-9679

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

31

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 19

0

32

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

33

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

34

Toro 137-3089

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

35

Toro 137-3043

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0
