38830 (1030 OHAE) - Toro 30" Power Max Heavy-Duty Snow Thrower (SN: 400000000 - 408999999) Housing Assembly Parts Diagram

30" Power Max Heavy-Duty Snow Thrower

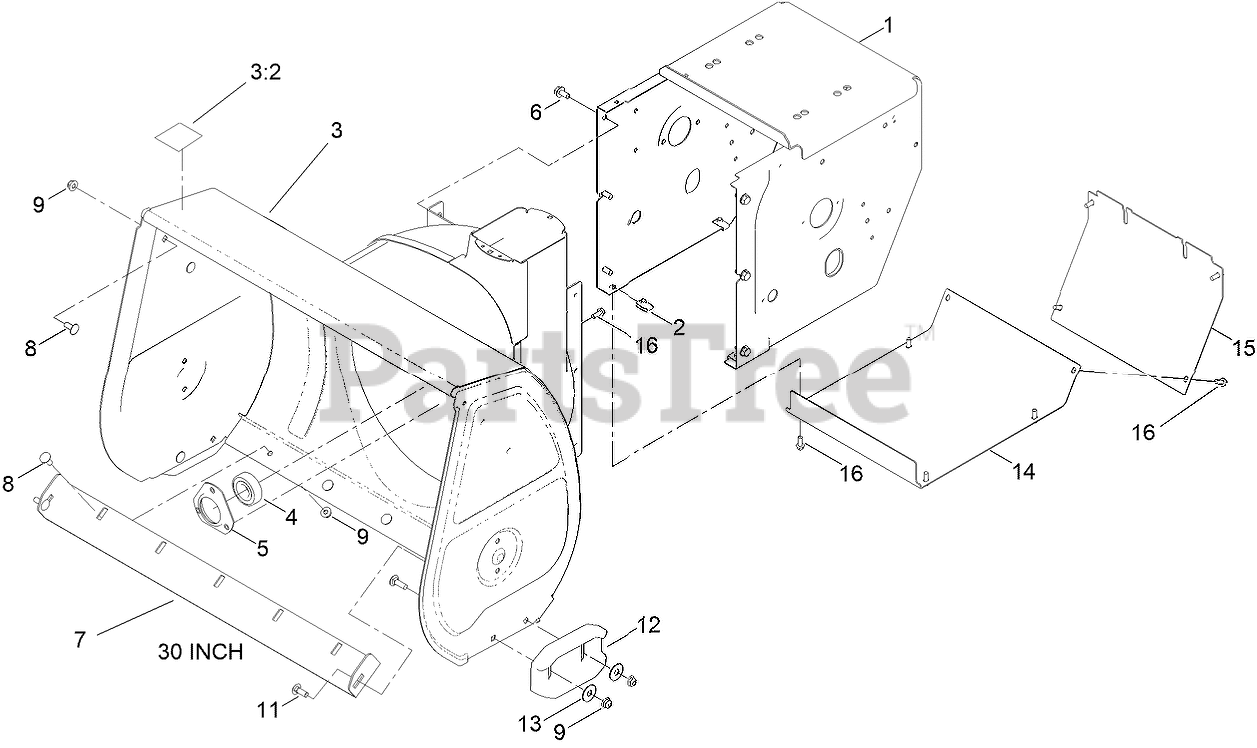

Housing Assembly Parts Diagram

  • Title

1

Toro 136-6639-01

FRAME-TRACTION

$170.99

$

Usually ships in 3-6 days

0

2

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

3

Toro 144-0349

AUGER HOUSING ASM (W/DECAL 30")

$620.99

$

Usually ships in 3-6 days

0

3:2

Toro 121-6817

DECAL-DANGER, AUGER

$3.49

$

Usually ships in 3-6 days

0

4

Toro 136-6571

BEARING-BALL

$12.99

$

Usually ships in 3-6 days

0

5

Toro 136-6573

RETAINER-BEARING

$5.99

$

Usually ships in 3-6 days

0

6

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

7

Toro 144-1312-01

SCRAPER, 30"

$37.99

$

Usually ships in 3-6 days

0

8

Toro 137-3061

BOLT-CARR

$0.99

$

In Stock, Qty 20+

0

9

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

0

11

Toro 137-3059

BOLT-CARR

$1.49

$

In Stock, Qty 5

0

12

Toro 106-4588-01

SKID

$21.99

$

In Stock, Qty 20+

0

13

Toro 119-4150

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 136-6650-01

COVER-BOTTOM

$26.99

$

Usually ships in 3-6 days

0

15

Toro 136-6651-01

COVER-REAR

$13.99

$

Usually ships in 3-6 days

0

16

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0
