38824 (1028 OXE) - Toro 28" Power Max Heavy-Duty Snow Thrower (SN: 400000000 - 999999999) NO. 2 ENGINE ASSEMBLY Parts Diagram

28" Power Max Heavy-Duty Snow Thrower

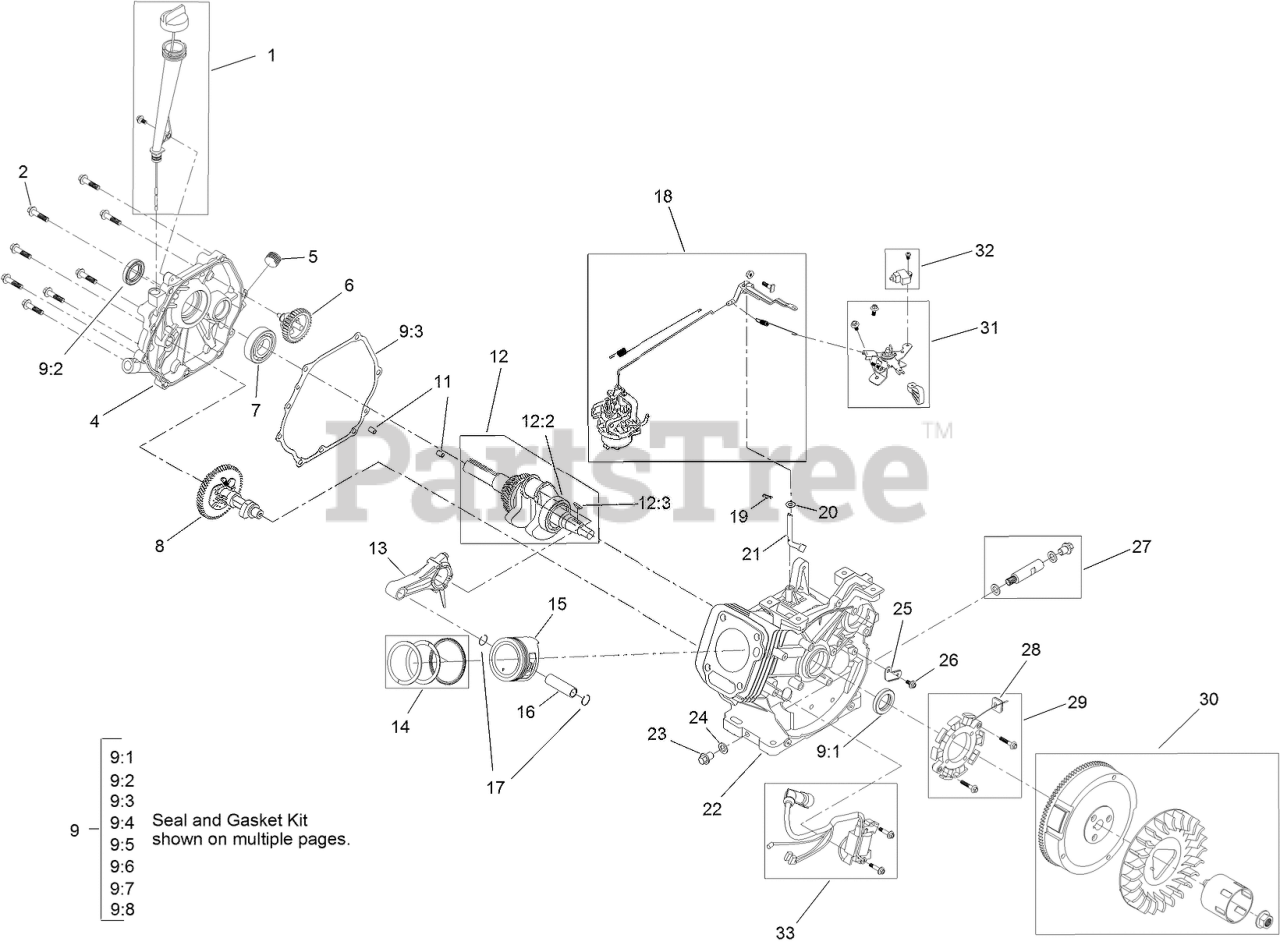

NO. 2 ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 133-9854

OIL FILL KIT

$29.99

$

Usually ships in 3-6 days

0

2

Toro 121-0299

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

4

Toro 133-9856

COVER-CRANKCASE

$107.99

$

Usually ships in 3-6 days

0

5

Toro 133-9805

Plug-Drain

$7.99

$

In Stock, only 1 left!

0

6

Toro 121-0265

GOVERNOR GEAR ASM

$19.99

$

Usually ships in 3-6 days

0

7

Toro 121-0315

BEARING-MAIN

$23.99

$

Usually ships in 3-6 days

0

8

Toro 121-0243

CAMSHAFT ASM

$95.99

$

Usually ships in 3-6 days

0

9

Toro 121-0358

SEAL AND GASKET KIT

$78.99

$

Usually ships in 3-6 days

0

9:1

Toro 121-0316

SEAL-OIL

$12.99

$

Usually ships in 3-6 days

0

9:2

Toro 121-0317

SEAL-OIL

$12.99

$

Usually ships in 3-6 days

0

9:3

Toro 121-0228

GASKET-COVER, CRANKCASE

$15.99

$

Usually ships in 3-6 days

0

9:4

Toro 121-0231

GASKET-HEAD, CYLINDER

$13.99

$

Usually ships in 3-6 days

0

9:5

Toro 121-0234

GASKET-COVER, VALVE

$10.99

$

Usually ships in 3-6 days

0

9:6

Toro 121-0272

GASKET-EXHAUST

$1.99

$

Usually ships in 3-6 days

0

9:7

Toro 121-0252

GASKET-CARBURETOR

$1.99

$

Usually ships in 3-6 days

0

9:8

Toro 121-0253

GASKET-CARBURETOR

$1.99

$

Usually ships in 3-6 days

0

11

Toro 121-0314

PIN-DOWEL

$1.99

$

Usually ships in 3-6 days

0

12

Toro 121-0241

CRANKSHAFT ASM

$201.99

$

Usually ships in 3-6 days

0

12:2

Toro 121-0315

BEARING-MAIN

$23.99

$

Usually ships in 3-6 days

0

12:3

Toro 120-4320

KEY-WOODRUFF

$2.99

$

Usually ships in 3-6 days

0

13

Toro 121-0240

CONNECTING ROD ASM

$45.99

$

Usually ships in 3-6 days

0

14

Toro 121-0238

SET-RING, PISTON

$23.99

$

Usually ships in 3-6 days

0

15

Toro 121-0333

PISTON

$53.99

$

Usually ships in 3-6 days

0

16

Toro 121-0237

PIN-PISTON

$11.99

$

Usually ships in 3-6 days

0

17

Toro 121-0313

CLIP-PIN, PISTON

$1.49

$

Usually ships in 3-6 days

0

18

Toro 121-0352

COMPLETE GOVERNOR KIT

$19.99

$

In Stock, only 1 left!

0

19

Toro 120-4256

PIN-HAIR

$1.49

$

Usually ships in 3-6 days

0

20

Toro 121-0311

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

21

Toro 121-0263

SHAFT-GOVERNOR

$7.49

$

Usually ships in 3-6 days

0

22

Toro 121-0442

CRANKCASE

$334.99

$

Usually ships in 3-6 days

0

23

Toro 121-0222

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

24

Toro 121-0310

WASHER-PLAIN

$1.99

$

Usually ships in 3-6 days

0

25

Toro 121-0278

CLAMP

$3.49

$

Usually ships in 3-6 days

0

26

Toro 121-0118

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

27

Toro 121-0341

DRAIN PLUG KIT

$16.99

$

Usually ships in 3-6 days

0

28

Toro 121-0325

GROMMET-RUBBER

$1.99

$

Usually ships in 3-6 days

0

29

Toro 121-0362

STATOR KIT

$66.99

$

Usually ships in 3-6 days

0

30

Toro 121-0354

FAN AND FLYWHEEL KIT

$190.99

$

Usually ships in 3-6 days

0

31

Toro 121-4107

THROTTLE CONTROL KIT

$20.99

$

In Stock, only 1 left!

0

32

Toro 121-4106

KILL SWITCH KIT

$15.99

$

Usually ships in 3-6 days

0

33

Toro 121-0334

IGNITION MODULE KIT
(Superseded to 136-7798)

$82.99

$

In Stock, only 1 left!

0
