38819 (826 OAE) - Toro 26" Power Max Snow Thrower (SN: 406320000 - 408999999) Tire and Drive Assembly Parts Diagram

26" Power Max Snow Thrower

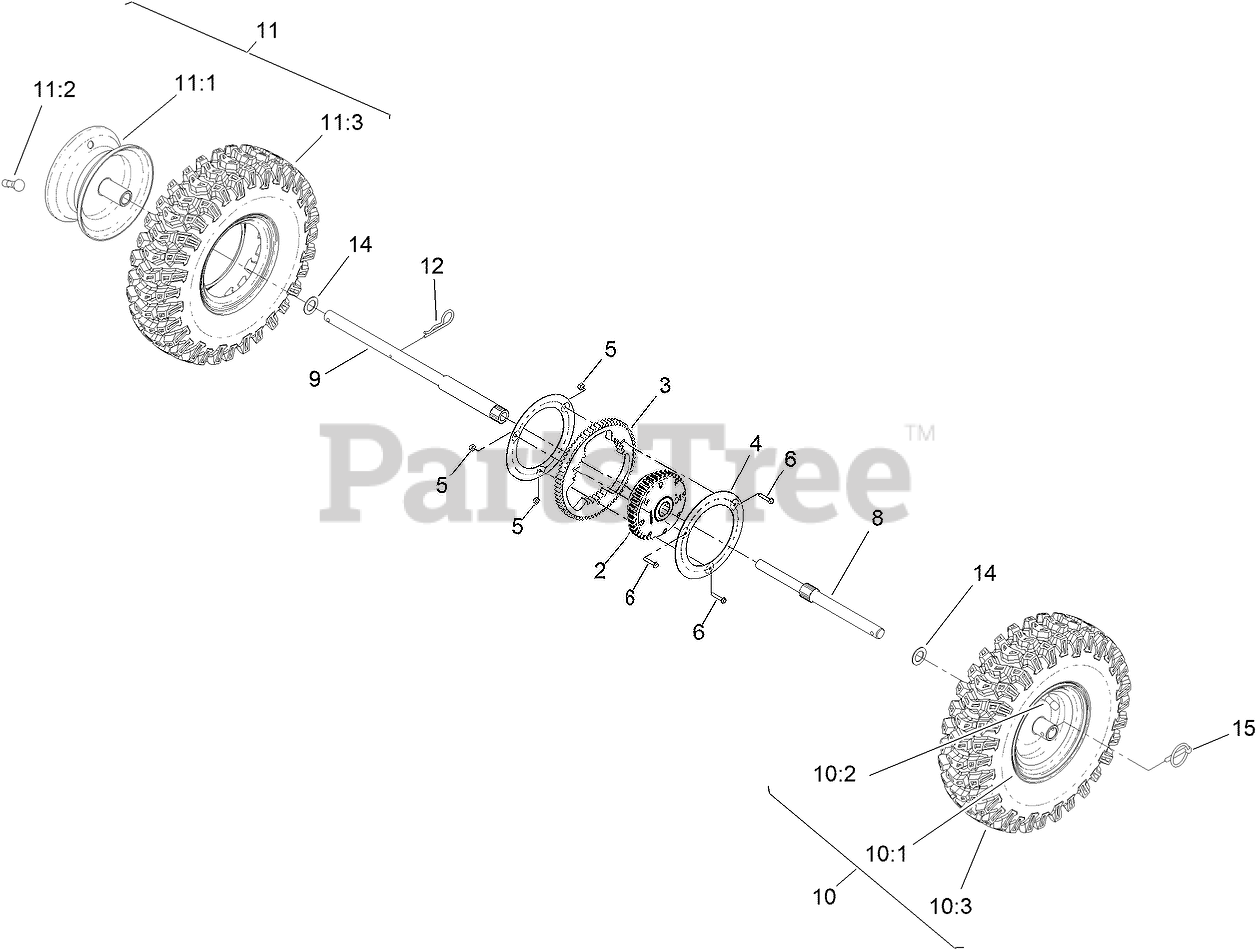

Tire and Drive Assembly Parts Diagram

  • Title

2

Toro 130-9776

TRANSMISSION

$248.99

$

Usually ships in 3-6 days

0

3

Toro 130-9786

GEAR-AXLE

$41.99

$

Usually ships in 3-6 days

0

4

Toro 130-9798-03

PLATE-GEAR

$10.99

$

Usually ships in 3-6 days

0

5

Toro 137-3085

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

6

Toro 131-6456

SCREW-HWH

$0.99

$

Usually ships in 3-6 days

0

8

Toro 140-3746

AXLE-LT, CTS

$76.99

$

Usually ships in 3-6 days

0

9

Toro 140-3742

AXLE-RT, CTS

$85.99

$

Usually ships in 3-6 days

0

10

Toro 138-3660

LH WHEEL AND TIRE ASM

$109.99

$

Usually ships in 3-6 days

0

10:1

Toro 138-3669

WHEEL (15X4 TIRE)

$41.99

$

Usually ships in 3-6 days

0

10:2

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

10:3

Toro 138-3668

TIRE

$78.99

$

Usually ships in 3-6 days

0

11

Toro 138-3659

RH WHEEL AND TIRE ASM

$112.99

$

Usually ships in 3-6 days

0

11:1

Toro 138-3669

WHEEL (15X4 TIRE)

$41.99

$

Usually ships in 3-6 days

0

11:2

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

11:3

Toro 138-3668

TIRE

$78.99

$

Usually ships in 3-6 days

0

12

Toro 3290-343

PIN-HAIR

$0.99

$

In Stock, only 3 left!

0

14

Toro 3-8664

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

15

Toro 107-3039

KLIK PIN ASM

$10.99

$

In Stock, only 1 left!

0
