38819 (826 OAE) - Toro 26" Power Max Snow Thrower (SN: 406320000 - 408999999) Drive Assembly Parts Diagram

26" Power Max Snow Thrower

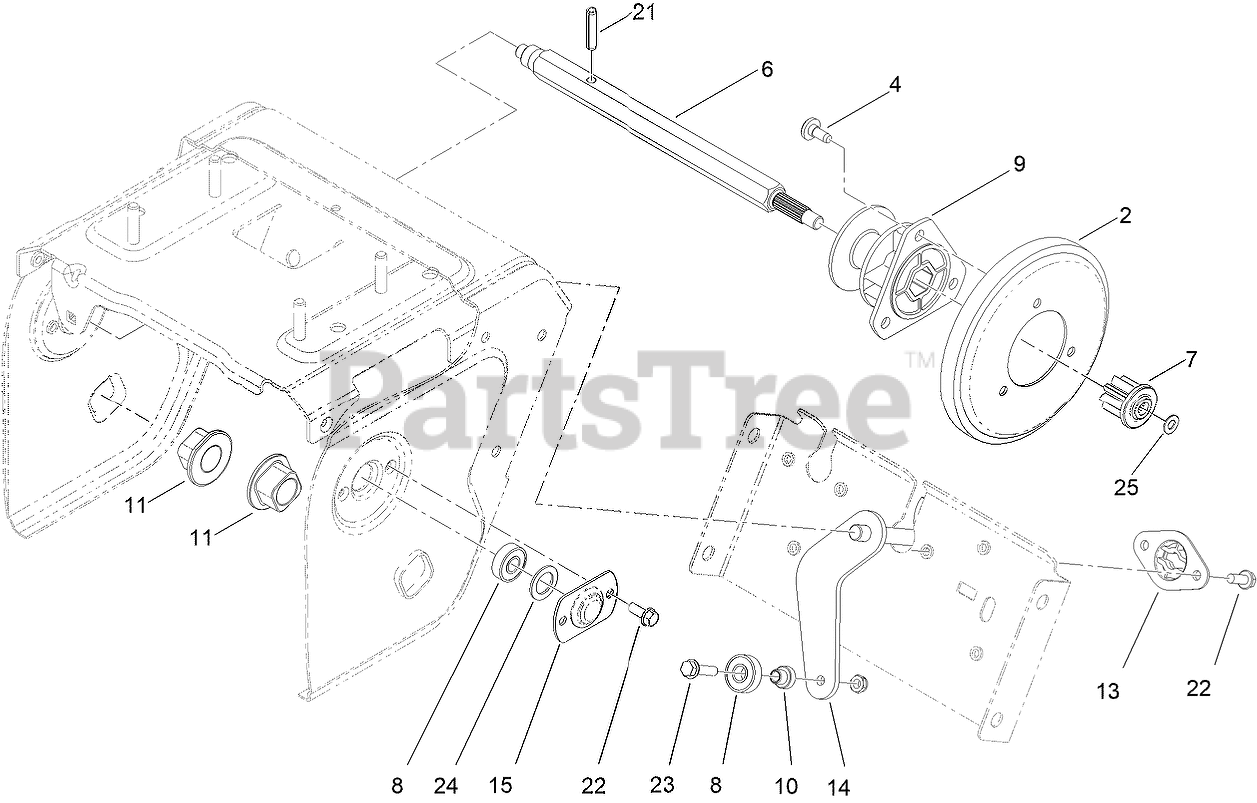

Drive Assembly Parts Diagram

  • Title

2

Toro 119-1567

WHEEL-FRICTION

$53.99

$

In Stock, only 4 left!

0

4

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 13

0

6

Toro 119-7615

SHAFT-HEX

$62.99

$

In Stock, only 1 left!

0

7

Toro 119-7616

GEAR-PINION, 8 TOOTH

$6.99

$

In Stock, only 1 left!

0

8

Toro 121-6835

BEARING-BALL

$7.99

$

In Stock, only 2 left!

0

9

Toro 119-7630

TRUNNION

$13.99

$

In Stock, only 1 left!

0

10

Toro 119-7684

SPACER-PLATE, SHIFT

$1.99

$

Usually ships in 3-6 days

0

11

Toro 120-7162

BUSHING-AXLE

$5.49

$

Usually ships in 3-6 days

0

13

Toro 120-7191

RETAINER-PLATE, SHIFT

$2.49

$

Usually ships in 3-6 days

0

14

Toro 120-7193-03

SHIFT PLATE ASM

$19.99

$

Usually ships in 3-6 days

0

15

Toro 136-7158

RETAINER-BEARING

$3.49

$

In Stock, only 1 left!

0

21

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 9

0

22

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

23

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

24

Toro 121-6840

WASHER-RUBBER

$1.49

$

In Stock, only 3 left!

0

25

Toro 48-9220

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0
