38818 (722 E) - Toro 22" Power Throw Snow Thrower (SN: 312000001 - 312999999) (2012) ENGINE ASSEMBLY Parts Diagram

22" Power Throw Snow Thrower

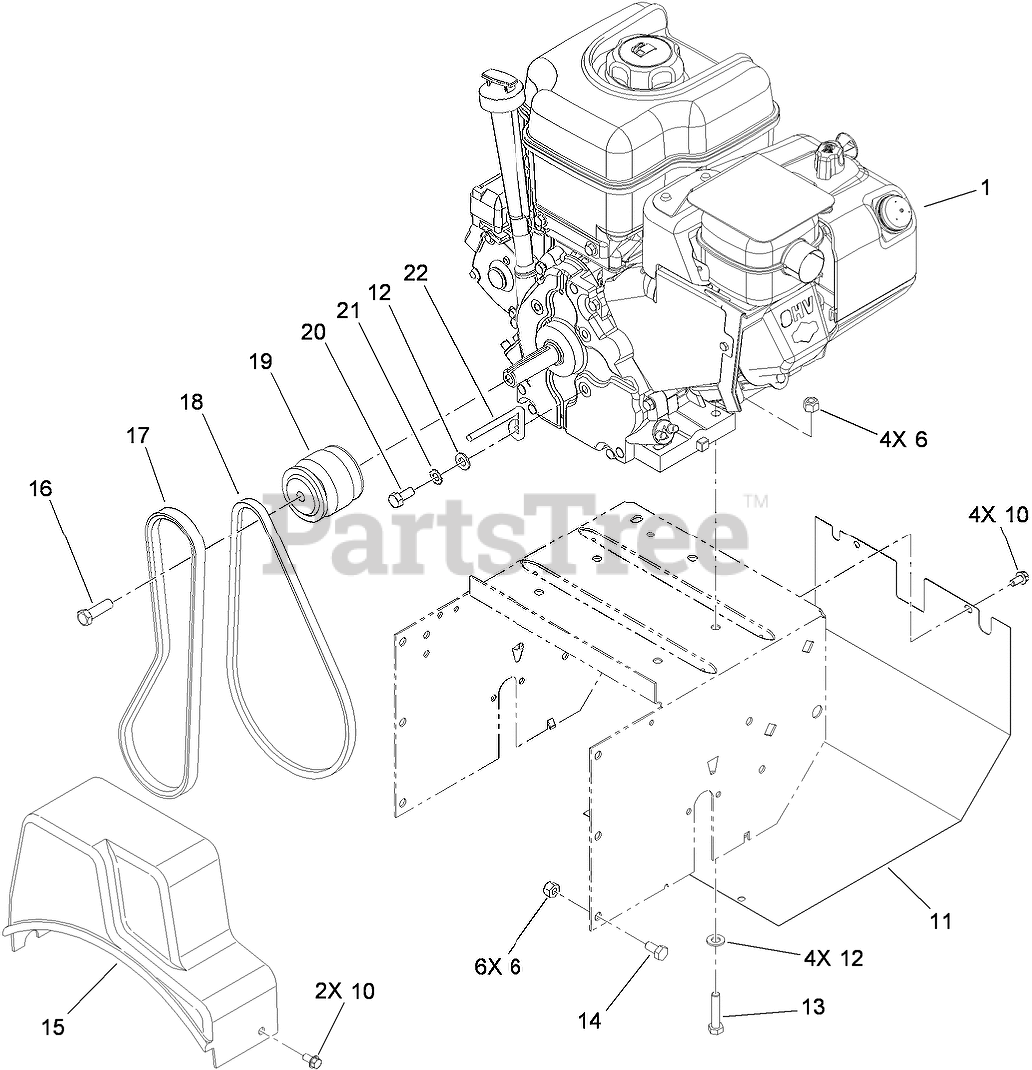

ENGINE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-BRIGGS, 12D1150153E8

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS, 12D1150153E8

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

11

Toro 37-6830-01

COVER-TRACTION, LOWER

$103.99

$

Usually ships in 3-6 days

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

14

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

15

Toro 37-6900

COVER-BELT

$71.99

$

Usually ships in 3-6 days

0

16

Toro 43-7290

SCREW-SPECIAL

$8.49

$

Usually ships in 3-6 days

0

17

Toro 26-9672

V-BELT

$31.99

$

In Stock, Qty 7

0

18

Toro 37-9090

V BELT-3L, TRACTION

$16.99

$

In Stock, Qty 5

0

19

Toro 119-1585

PULLEY-ENGINE

$85.99

$

Usually ships in 3-6 days

0

20

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

21

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

22

Toro 37-8990

RETAINER-BELT

$10.99

$

Usually ships in 3-6 days

0
