38815 (826 OXE) - Toro 26" Power Max Snow Thrower (SN: 400000000 - 999999999) HANDLE ASSEMBLY Parts Diagram

26" Power Max Snow Thrower

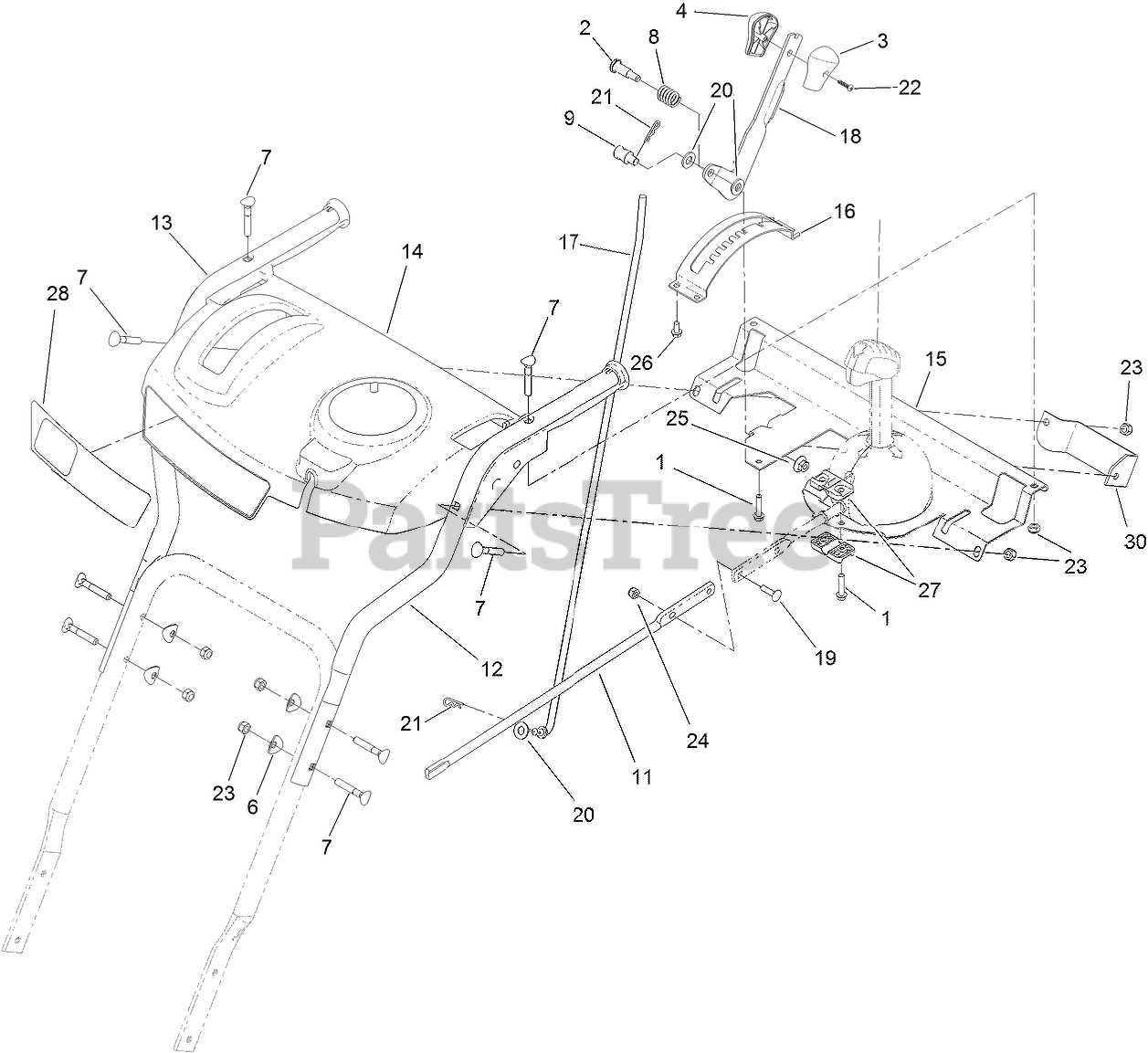

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 137-3100

SCREW-PLASTITE, HWH
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 6

0

2

Toro 137-3103

SCREW-SHOULDER, HH

$1.49

$

Usually ships in 3-6 days

0

3

Toro 105-9999

KNOB-SHIFT, LH

$7.99

$

In Stock, only 4 left!

0

4

Toro 106-4423

KNOB-SHIFT, RH

$7.99

$

In Stock, only 4 left!

0

6

Toro 137-3009

WASHER-CUP

$0.99

$

In Stock, Qty 10

0

7

Toro 137-3107

SCREW-HANDLE

$1.99

$

In Stock, Qty 15

0

8

Toro 136-7121

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

9

Toro 136-7193

TRUNNION-ROD

$7.99

$

In Stock, Qty 10

0

11

Toro 120-3881

ROD-CHUTE, FRONT

$20.99

$

In Stock, only 1 left!

0

12

Toro 120-7173-03

HANDLE-UPPER, LH

$42.99

$

Usually ships in 3-6 days

0

13

Toro 120-7174-03

HANDLE-UPPER, RH

$42.99

$

Usually ships in 3-6 days

0

14

Toro 120-7194

PANEL-CONTROL, MASTER

$46.99

$

Usually ships in 3-6 days

0

15

Toro 120-9251-03

SUPPORT-PANEL, CONTROL

$44.99

$

Usually ships in 3-6 days

0

16

Toro 120-9258-03

MOUNT-SELECTOR, SPEED

$5.99

$

Usually ships in 3-6 days

0

17

Toro 136-7163

ROD-SELECTOR, GEAR

$18.99

$

In Stock, only 4 left!

0

18

Toro 121-1242-03

SELECTOR-SPEED

$11.99

$

In Stock, only 1 left!

0

19

Toro 137-3056

BOLT-CARR

$1.99

$

In Stock, Qty 11

0

20

Toro 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

0

21

Toro 137-3083

PIN-HAIR

$1.49

$

In Stock, Qty 16

0

22

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

23

Toro 137-3093

NUT-HEX

$1.49

$

In Stock, Qty 15

0

24

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 14

0

25

Toro 137-3038

NUT-HEX FLG

$5.49

$

Usually ships in 3-6 days

0

26

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

27

Toro 105-9987

SUPPORT-ROD

$8.49

$

In Stock, Qty 7

0

28

Toro 131-6470

DECAL-PANEL, CONTROL

$9.49

$

Usually ships in 3-6 days

0

30

Toro 120-2301-03

PLATE-SUPPORT, SHIFT

$6.49

$

Usually ships in 3-6 days

0
