38815 (826 OXE) - Toro 26" Power Max Snow Thrower (SN: 400000000 - 999999999) CHUTE ASSEMBLY Parts Diagram

26" Power Max Snow Thrower

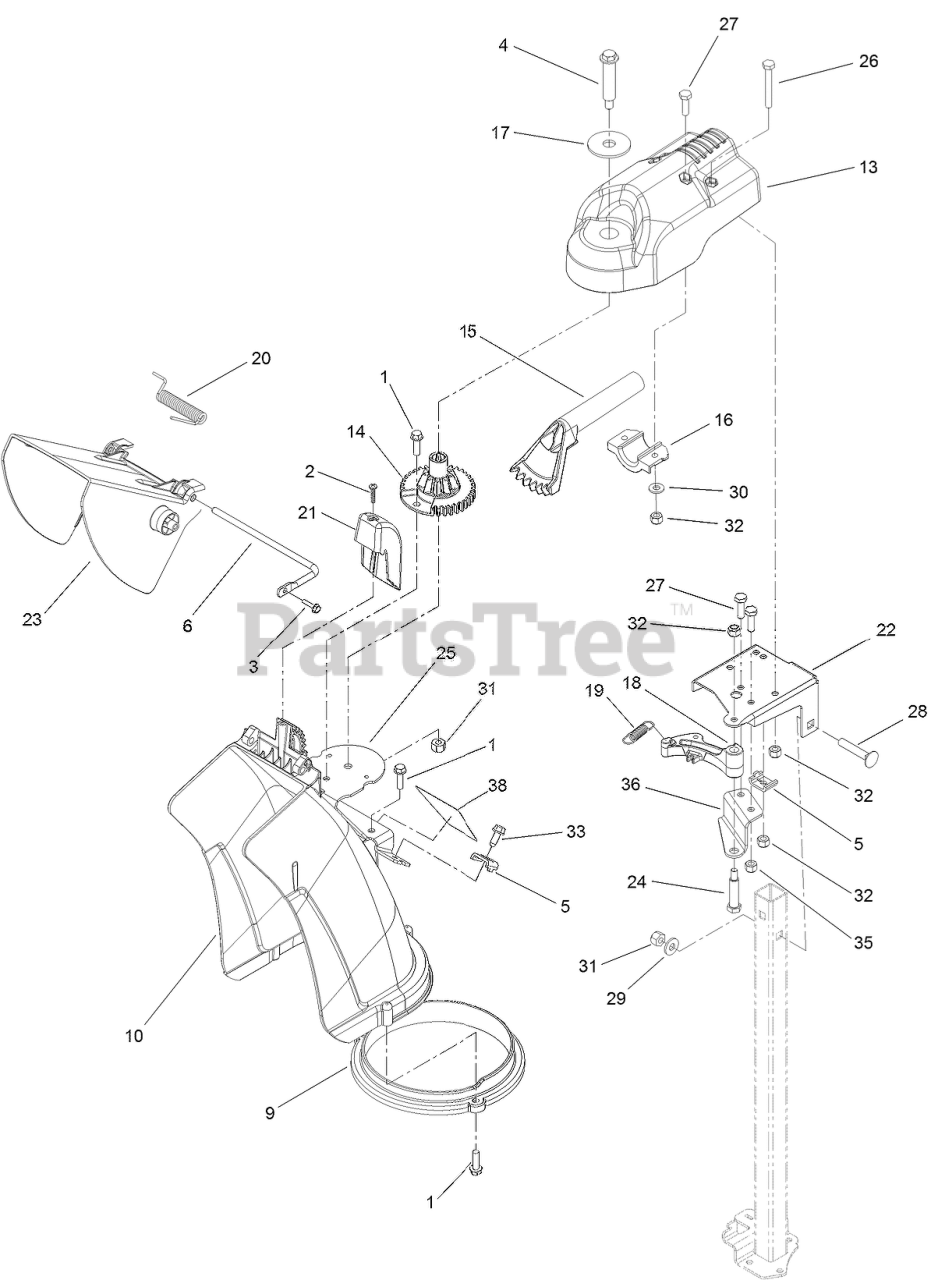

CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

2

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

3

Toro 137-3110

SCREW-PLASTITE, HWH

$2.99

$

In Stock, only 1 left!

0

4

Toro 136-7199

BOLT-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

5

Toro 136-7191

CLAMP-CABLE

$4.99

$

Usually ships in 3-6 days

0

6

Toro 136-7145

ROD-DEFLECTOR

$7.99

$

In Stock, only 4 left!

0

9

Toro 119-7627

RING-CHUTE

$9.49

$

Usually ships in 3-6 days

0

10

Toro 133-5590

CHUTE-DISCHARGE

$43.99

$

In Stock, Qty 6

0

13

Toro 120-3852

MOUNT-CHUTE, DISCHARGE

$31.99

$

Usually ships in 3-6 days

0

14

Toro 120-3853

GEAR-CHUTE

$9.49

$

Usually ships in 3-6 days

0

15

Toro 120-3854

GEAR-BEVEL

$10.99

$

Usually ships in 3-6 days

0

16

Toro 120-3855

MOUNT-GEAR, BEVEL

$2.49

$

Usually ships in 3-6 days

0

17

Toro 137-3020

WASHER-PLAIN

$9.49

$

Usually ships in 3-6 days

0

18

Toro 120-3869

LATCH-CHUTE

$3.49

$

Usually ships in 3-6 days

0

19

Toro 136-7154

SPRING, CHUTE LATCH

$3.99

$

Usually ships in 3-6 days

0

20

Toro 136-7143

SPRING-TORSION

$4.49

$

In Stock, only 1 left!

0

21

Toro 120-9299

CHUTE-COVER

$3.49

$

Usually ships in 3-6 days

0

22

Toro 121-1207-03

BRACKET-SUPPORT, CHUTE

$9.49

$

Usually ships in 3-6 days

0

23

Toro 121-1215

DEFLECTOR-CHUTE
(Superseded to 131-5915)

$21.99

$

Usually ships in 3-6 days

0

24

Toro 136-7195

BOLT, SHOULDER

$1.99

$

Usually ships in 3-6 days

0

25

Toro 121-1237-03

BRACKET-MOUNT, CHUTE

$13.99

$

Usually ships in 3-6 days

0

26

Toro 137-3032

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

27

Toro 137-3046

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

28

Toro 137-3063

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

29

Toro 120-9646

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

30

Toro 120-9679

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

31

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

32

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

33

Toro 137-3043

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

35

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

36

Toro 121-6843

BRACKET-SUPPORT, LATCH

$2.99

$

Usually ships in 3-6 days

0

38

Toro 125-1121

DECAL-GUARANTEE

$7.99

$

Usually ships in 3-6 days

0
