38814 (726 OE) - Toro 26" Power Max Snow Thrower (SN: 406320000 - 408999999) Wheel Assembly Parts Diagram

26" Power Max Snow Thrower

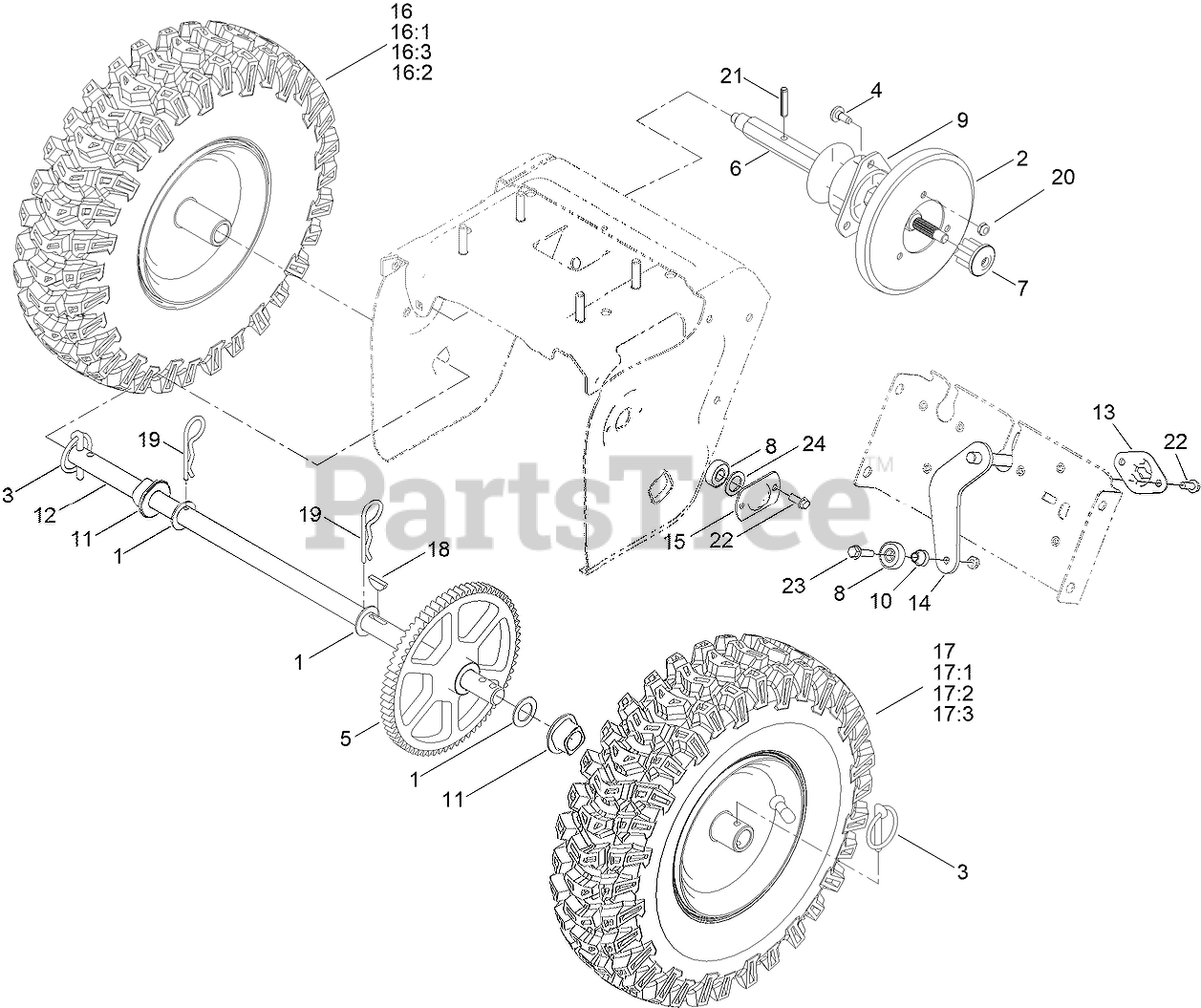

Wheel Assembly Parts Diagram

  • Title

1

Toro 3-8664

WASHER-THRUST

$6.49

$

In Stock, only 1 left!

0

2

Toro 119-1567

WHEEL-FRICTION

$53.99

$

In Stock, only 4 left!

0

3

Toro 107-3039

KLIK PIN ASM

$10.99

$

In Stock, only 1 left!

0

4

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 13

0

5

Toro 119-7613

GEAR-AXLE

$48.99

$

In Stock, only 1 left!

0

6

Toro 119-7615

SHAFT-HEX

$62.99

$

In Stock, only 1 left!

0

7

Toro 119-7616

GEAR-PINION, 8 TOOTH

$6.99

$

In Stock, only 1 left!

0

8

Toro 121-6835

BEARING-BALL

$7.99

$

In Stock, only 2 left!

0

9

Toro 119-7630

TRUNNION

$13.99

$

In Stock, only 1 left!

0

10

Toro 119-7684

SPACER-PLATE, SHIFT

$1.99

$

Usually ships in 3-6 days

0

11

Toro 120-7162

BUSHING-AXLE

$5.49

$

Usually ships in 3-6 days

0

12

Toro 120-7180

AXLE

$56.99

$

Usually ships in 3-6 days

0

13

Toro 120-7191

RETAINER-PLATE, SHIFT

$2.49

$

Usually ships in 3-6 days

0

14

Toro 120-7193-03

SHIFT PLATE ASM

$19.99

$

Usually ships in 3-6 days

0

15

Toro 136-7158

RETAINER-BEARING

$3.49

$

In Stock, only 1 left!

0

16

Toro 138-3660

LH WHEEL AND TIRE ASM

$109.99

$

Usually ships in 3-6 days

0

16:1

Toro 138-3669

WHEEL (15X4 TIRE)

$41.99

$

Usually ships in 3-6 days

0

16:2

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$6.99

$

In Stock, Qty 17

0

16:3

Toro 138-3668

TIRE

$78.99

$

Usually ships in 3-6 days

0

17

Toro 138-3659

RH WHEEL AND TIRE ASM

$109.99

$

Usually ships in 3-6 days

0

17:1

Toro 138-3669

WHEEL (15X4 TIRE)

$41.99

$

Usually ships in 3-6 days

0

17:2

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$6.99

$

In Stock, Qty 17

0

17:3

Toro 138-3668

TIRE

$78.99

$

Usually ships in 3-6 days

0

18

Toro 3257-7

KEY-WOODRUFF

$9.49

$

In Stock, only 3 left!

0

19

Toro 3290-343

PIN-HAIR

$0.99

$

In Stock, only 3 left!

0

20

Toro 137-3091

NUT-HEX

$1.49

$

In Stock, Qty 10

0

21

Toro 32121-9

PIN-ROLL, SLOTTED

$3.49

$

In Stock, Qty 9

0

22

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

23

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

24

Toro 121-6840

WASHER-RUBBER

$1.49

$

In Stock, only 3 left!

0
