38814 (726 OE) - Toro 26" Power Max Snow Thrower (SN: 406320000 - 408999999) Main Frame and Auger Housing Assembly Parts Diagram

26" Power Max Snow Thrower

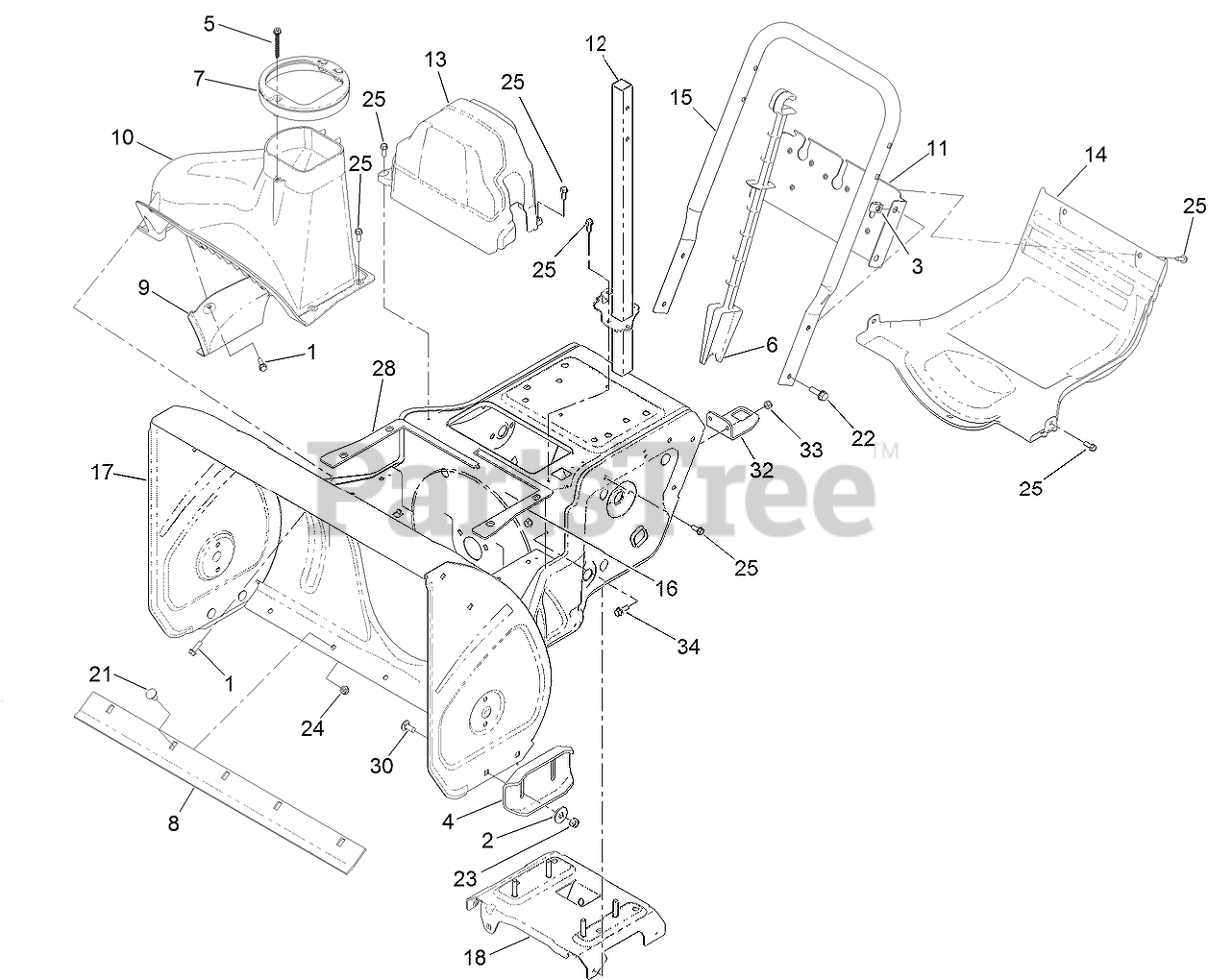

Main Frame and Auger Housing Assembly Parts Diagram

  • Title
1

Toro 137-3099

SCREW-PLASTITE, HWH

$1.49

$

Usually ships in 3-6 days

0

2

Toro 119-4150

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

3

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

$21.99

$

In Stock, Qty 20+

0

5

Toro 137-3015

SCREW-HWH, PLASTITE

$5.49

$

Usually ships in 3-6 days

0

6

Toro 121-6833

STICK-CLEANOUT

$17.99

$

In Stock, Qty 7

0

7

Toro 138-3608

GUIDE-CHUTE

$5.49

$

Usually ships in 3-6 days

0

8

Toro 120-3872-01

SCRAPER-26 INCH

$29.99

$

In Stock, only 3 left!

0

9

Toro 120-7158-01

COVER-LINER

$11.99

$

Usually ships in 3-6 days

0

10

$100.99

$

In Stock, Qty 6

0

11

Toro 120-7161-01

BRACE-FRAME

$15.99

$

Usually ships in 3-6 days

0

12

Toro 137-3412-03

SUPPORT-CHUTE

$21.99

$

Usually ships in 3-6 days

0

13

Toro 120-7177

COVER-BELT

$14.99

$

Usually ships in 3-6 days

0

14

Toro 120-7178

COVER-LOWER

$26.99

$

In Stock, only 1 left!

0

15

Toro 140-3740-03

HANDLE-LOWER, CTS

$42.99

$

Usually ships in 3-6 days

0

16

Toro 120-7181

SEAL-HOUSING, LH

$2.49

$

Usually ships in 3-6 days

0

17

Toro 139-3691

FRAME ASM

$633.99

$

Usually ships in 3-6 days

0

18

Toro 136-7187

BRACE-FRAME

$47.99

$

Usually ships in 3-6 days

0

21

Toro 137-3060

BOLT-CARR

$1.99

$

Usually ships in 3-6 days

0

22

Toro 137-3067

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

23

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

24

Toro 137-3089

NUT-HEX

$1.49

$

Usually ships in 3-6 days

0

25

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

28

Toro 121-6841

SEAL-HOUSING, RH

$2.49

$

Usually ships in 3-6 days

0

30

Toro 137-3061

BOLT-CARR

$0.99

$

In Stock, Qty 20+

0

32

Toro 137-3410-03

BRACKET-POST, CHUTE

$4.99

$

Usually ships in 3-6 days

0

33

Toro 120-9678

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

34

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 14

0
