38814 (726 OE) - Toro 26" Power Max Snow Thrower (SN: 404997500 - 406319999) Crankcase Assembly Parts Diagram

26" Power Max Snow Thrower

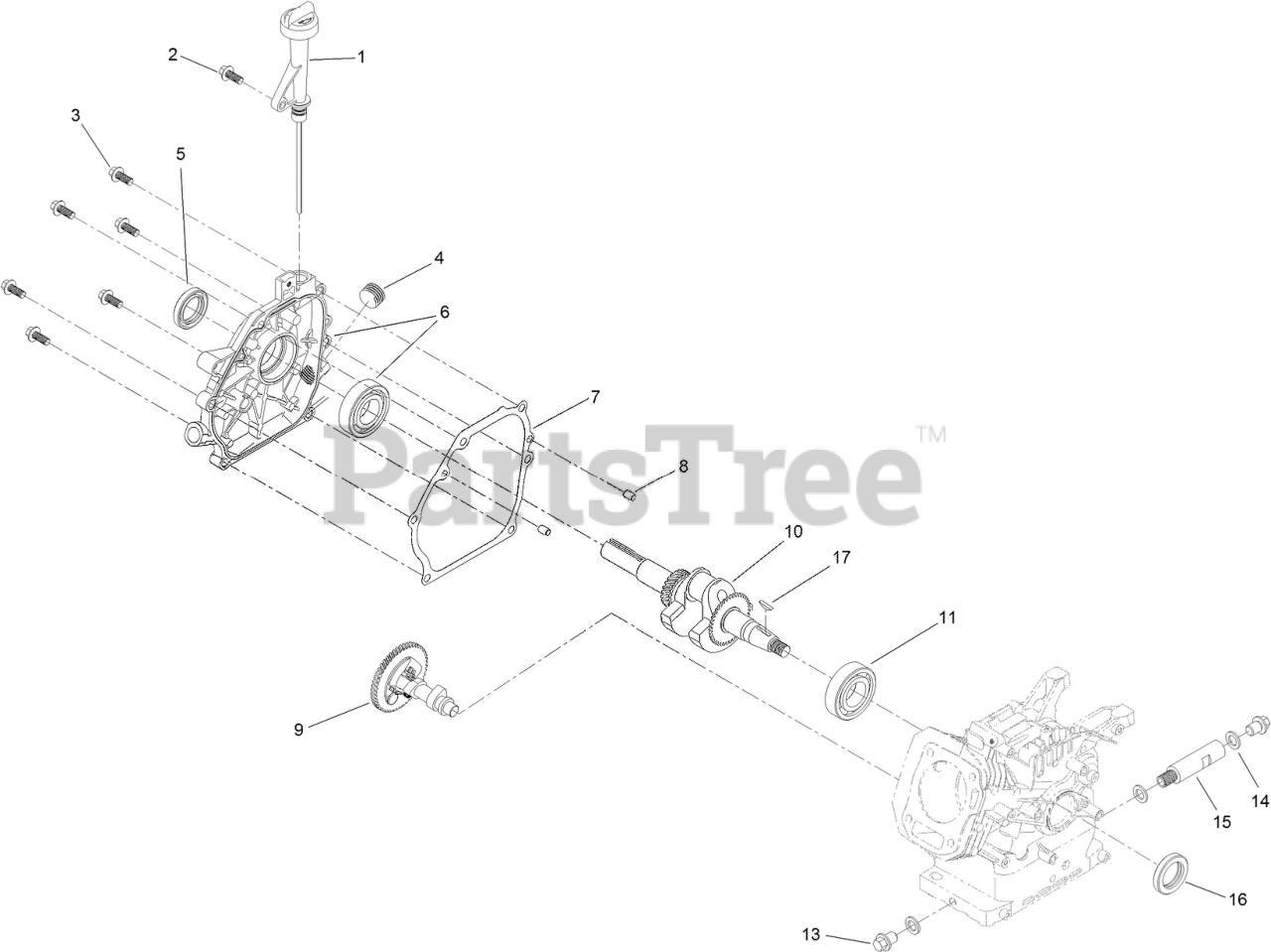

Crankcase Assembly Parts Diagram

  • Title

1

Toro 133-9837

OIL FILL ASM

$18.99

$

Usually ships in 3-6 days

0

2

Toro 127-9123

SCREW-HHF

$1.99

$

In Stock, only 3 left!

0

3

Toro 121-4114

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

4

Toro 133-9805

PLUG-DRAIN

$7.99

$

In Stock, only 1 left!

0

5

Toro 121-0209

SEAL-OIL

$14.99

$

In Stock, only 1 left!

0

6

Toro 133-9835

CRANKCASE COVER ASM

$

$

Currently unavailable

7

Toro 121-0105

GASKET-COVER, CRANKCASE

$14.99

$

Usually ships in 3-6 days

0

8

Toro 121-0054

PIN-DOWEL

$1.49

$

Usually ships in 3-6 days

0

9

Toro 133-9836

CAMSHAFT
(Superseded to 139-0733)

$49.99

$

Usually ships in 3-6 days

0

10

Toro 127-9496

CRANKSHAFT

$140.99

$

Usually ships in 3-6 days

0

11

Toro 121-0056

BEARING-BALL

$18.99

$

Usually ships in 3-6 days

0

13

Toro 121-0030

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

14

Toro 121-0048

WASHER-PLAIN

$1.49

$

In Stock, only 4 left!

0

15

Toro 127-9104

TUBE-DRAIN, OIL

$11.99

$

In Stock, only 1 left!

0

16

Toro 121-0208

See Supercession: 133-9864
(Superseded to 133-9864)

$12.99

$

Usually ships in 3-6 days

0

17

Toro 120-4320

KEY-WOODRUFF

$2.99

$

Usually ships in 3-6 days

0
