38812 (724 OE) - Toro 24" Power Max Snow Thrower (SN: 409000000 - 411499999) Handle Assembly Parts Diagram

24" Power Max Snow Thrower

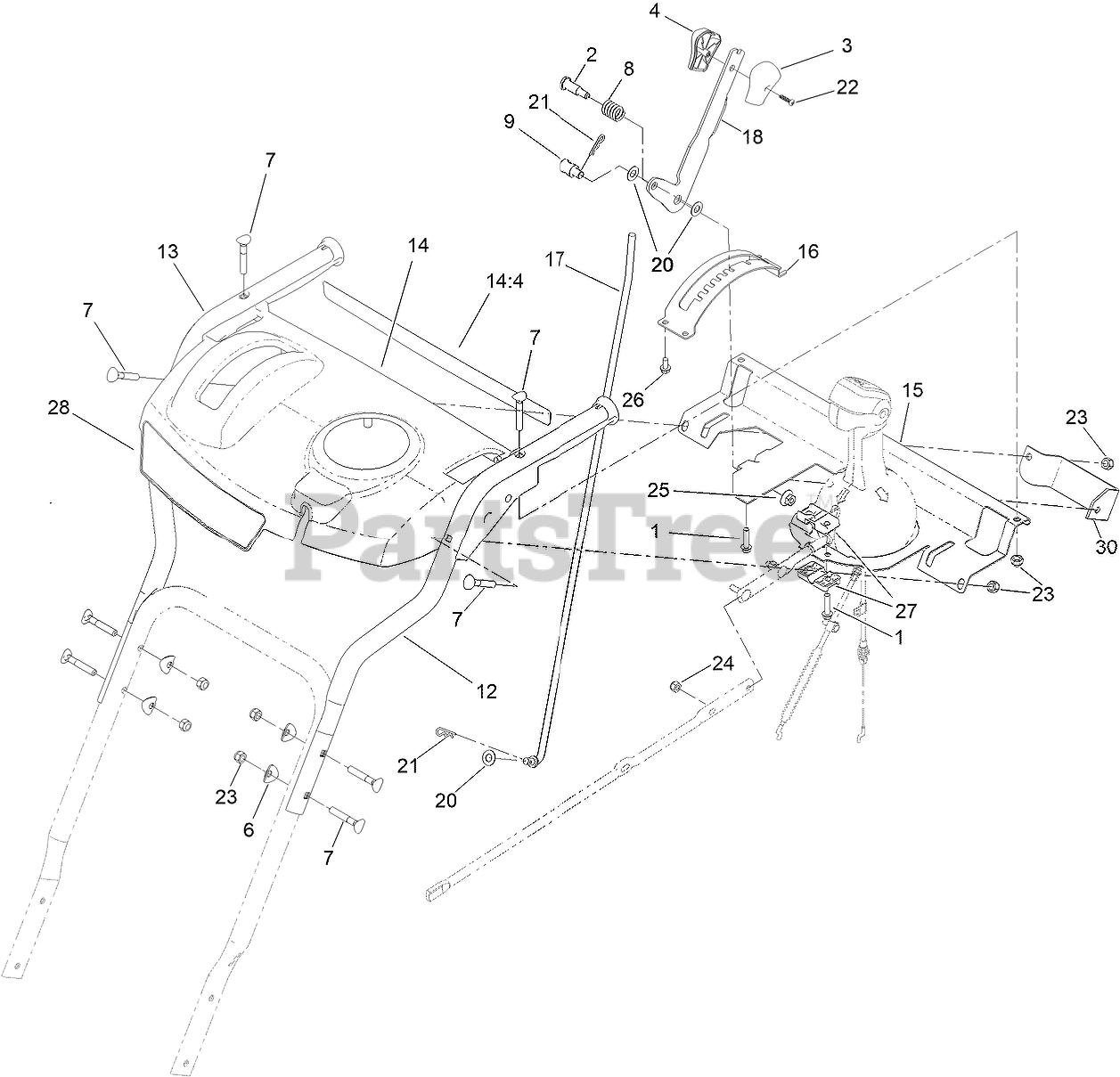

Handle Assembly Parts Diagram

  • Title

1

Toro 137-3101

SCREW-PLASTIC,HWH

$1.49

$

In Stock, Qty 6

0

2

Toro 137-3103

SCREW-SHOULDER, HH

$1.49

$

Usually ships in 3-6 days

0

3

Toro 105-9999

KNOB-SHIFT, LH

$7.99

$

In Stock, only 4 left!

0

4

Toro 106-4423

KNOB-SHIFT, RH

$7.99

$

In Stock, only 4 left!

0

6

Toro 137-3009

WASHER-CUP

$0.99

$

In Stock, Qty 10

0

7

Toro 137-3107

SCREW-HANDLE

$1.99

$

In Stock, Qty 5

0

8

Toro 136-7121

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

9

Toro 136-7193

TRUNNION-ROD

$7.99

$

In Stock, Qty 10

0

12

Toro 120-7173-03

HANDLE-UPPER, LH

$42.99

$

Usually ships in 3-6 days

0

13

Toro 120-7174-03

HANDLE-UPPER, RH

$42.99

$

Usually ships in 3-6 days

0

14

Toro 138-8487

CONTROL PANEL ASM

$44.99

$

Usually ships in 3-6 days

0

14:4

Toro 121-1240

DECAL-SAFETY

$

$

Not available

15

Toro 138-3676-03

SUPPORT-PANEL, CONTROL

$37.99

$

Usually ships in 3-6 days

0

16

Toro 120-9258-03

MOUNT-SELECTOR, SPEED

$5.99

$

Usually ships in 3-6 days

0

17

Toro 136-7163

ROD-SELECTOR, GEAR

$18.99

$

In Stock, only 4 left!

0

18

Toro 121-1242-03

SELECTOR-SPEED

$11.99

$

In Stock, only 1 left!

0

20

Toro 131-8667

WASHER-THRUST

$1.49

$

In Stock, Qty 12

0

21

Toro 137-3083

PIN-HAIR

$1.49

$

In Stock, Qty 16

0

22

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

23

Toro 137-3093

NUT-HEX

$1.49

$

In Stock, Qty 15

0

24

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 14

0

25

Toro 137-3038

NUT-HF

$5.49

$

Usually ships in 3-6 days

0

26

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

27

Toro 105-9987

SUPPORT-ROD

$8.49

$

In Stock, Qty 7

0

28

Toro 121-6821

DECAL-MODEL

$7.99

$

Usually ships in 3-6 days

0

30

Toro 120-2301-03

PLATE-SUPPORT, SHIFT

$6.49

$

Usually ships in 3-6 days

0
