38811 (724 OE) - Toro 24" Power Max Snow Thrower (SN: 316000001 - 316999999) (2016) INTAKE AND EXHAUST ASSEMBLY Parts Diagram

24" Power Max Snow Thrower

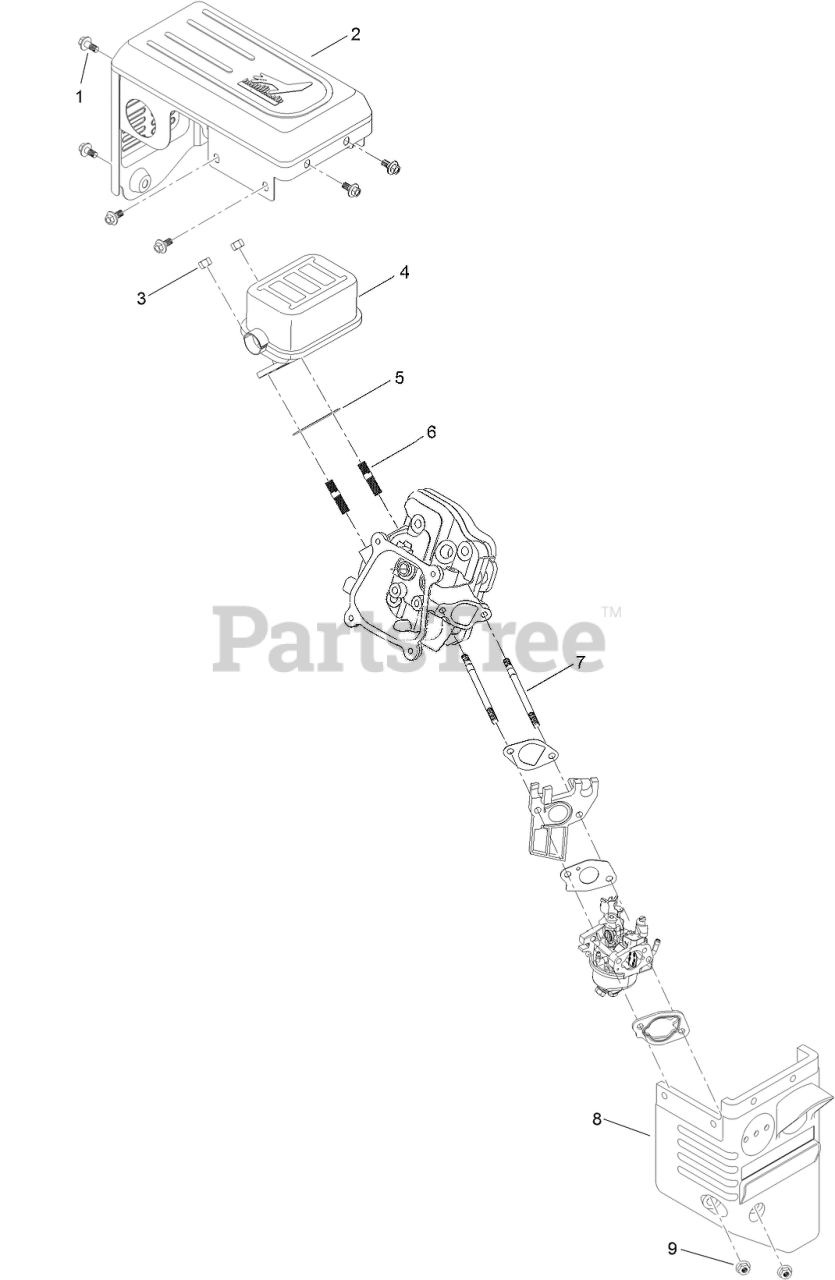

INTAKE AND EXHAUST ASSEMBLY Parts Diagram

  • Title
1

Toro 121-0294

SCREW-HHF

$1.99

$

In Stock, Qty 6

0

2

Toro 127-9127

GUARD-MUFFLER
(Superseded to 136-7779)

$42.99

$

Usually ships in 3-6 days

0

3

Toro 121-0199

NUT-HH

$1.49

$

Usually ships in 3-6 days

0

4

Toro 127-9128

MUFFLER ASM

$39.99

$

Usually ships in 3-6 days

0

5

Toro 121-0167

GASKET-EXHAUST

$3.99

$

Usually ships in 3-6 days

0

6

Toro 121-0464

STUD-EXHAUST

$2.99

$

Usually ships in 3-6 days

0

7

Toro 121-4112

STUD-INTAKE

$4.99

$

Usually ships in 3-6 days

0

8

Toro 127-9112

BOX-HEATER

$39.99

$

Usually ships in 3-6 days

0

9

Toro 121-0308

NUT-FLANGE

$1.99

$

Usually ships in 3-6 days

0
