38811 (724 OE) - Toro 24" Power Max Snow Thrower (SN: 316000001 - 316999999) (2016) IGNITION AND ELECTRICAL ASSEMBLY Parts Diagram

24" Power Max Snow Thrower

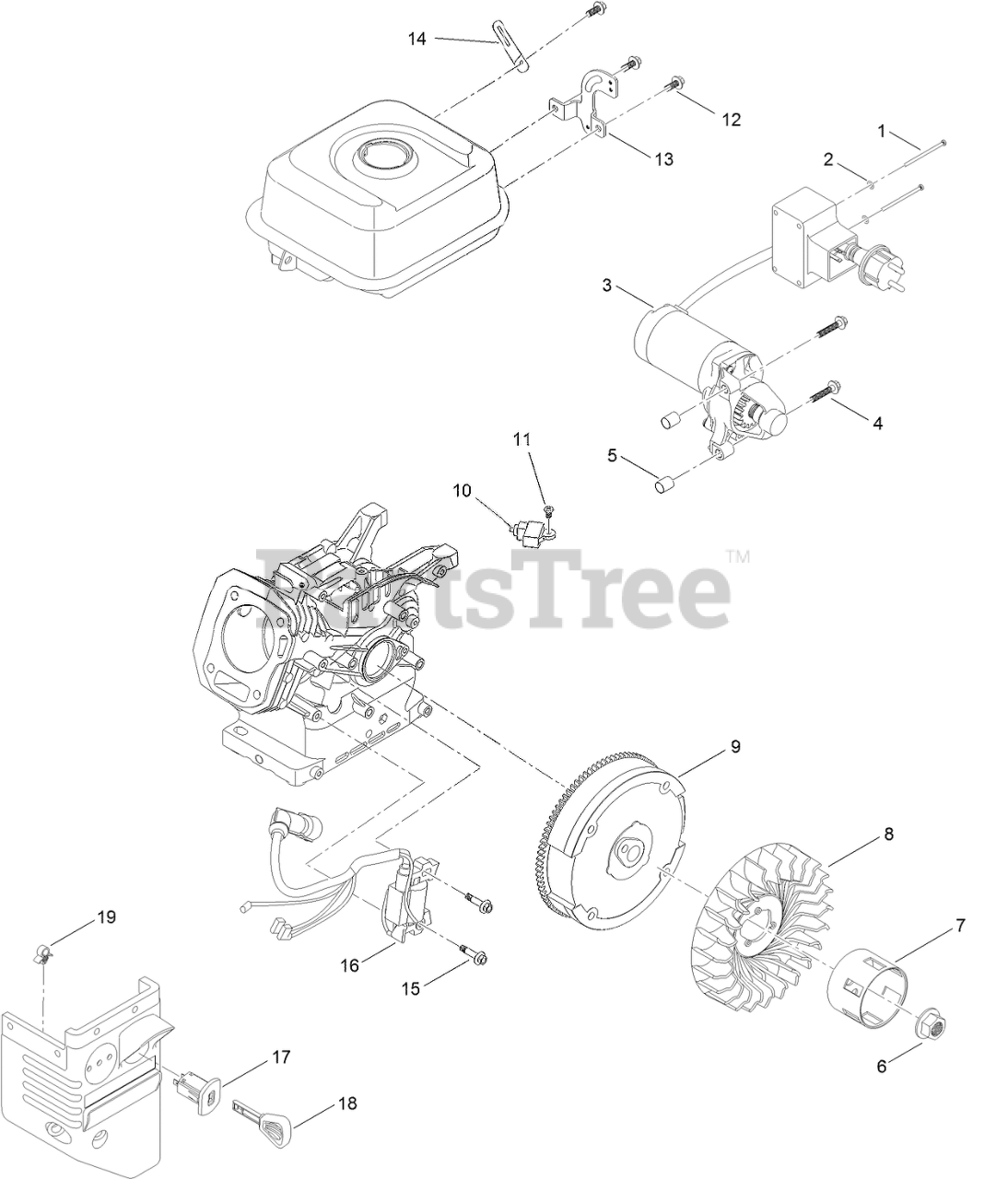

IGNITION AND ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 121-0306

SCREW-BHP

$1.49

$

In Stock, Qty 7

0

2

Toro 121-0312

WASHER-PLAIN

$1.49

$

In Stock, only 3 left!

0

3

Toro 127-9386

MOTOR-STARTER
(Superseded to 136-7777)

$371.99

$

Usually ships in 3-6 days

0

4

Toro 127-9382

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

5

Toro 121-0055

PIN-DOWEL

$1.49

$

Usually ships in 3-6 days

0

6

Toro 121-0047

NUT-FLANGE

$3.99

$

Usually ships in 3-6 days

0

7

Toro 127-9106

CUP-STARTER

$23.99

$

Usually ships in 3-6 days

0

8

Toro 127-9002

FAN

$18.99

$

Usually ships in 3-6 days

0

9

Toro 127-9005

FLYWHEEL

$120.99

$

Usually ships in 3-6 days

0

10

Toro 121-0284

SWITCH-KILL, ENGINE

$14.99

$

Usually ships in 3-6 days

0

11

Toro 120-4461

SCREW-PPH

$0.99

$

Usually ships in 3-6 days

0

12

Toro 127-9123

SCREW-HHF

$1.99

$

In Stock, only 3 left!

0

13

Toro 127-9124

BRACKET

$11.99

$

Usually ships in 3-6 days

0

14

Toro 121-0017

CLIP-HARNESS, WIRE

$2.49

$

Usually ships in 3-6 days

0

15

Toro 121-0097

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

16

Toro 127-9105

IGNITION COIL ASM
(Superseded to 133-9996)

$82.99

$

In Stock, only 2 left!

0

17

Toro 121-0283

SWITCH-KEY

$9.49

$

In Stock, Qty 11

0

18

Toro 117-7728

KEY

$4.49

$

In Stock, Qty 20+

0

19

Toro 121-0326

CLIP

$1.99

$

Usually ships in 3-6 days

0
