38811 (724 OE) - Toro 24" Power Max Snow Thrower (SN: 316000001 - 316999999) (2016) ENGINE, PULLEY AND BELT ASSEMBLY Parts Diagram

24" Power Max Snow Thrower

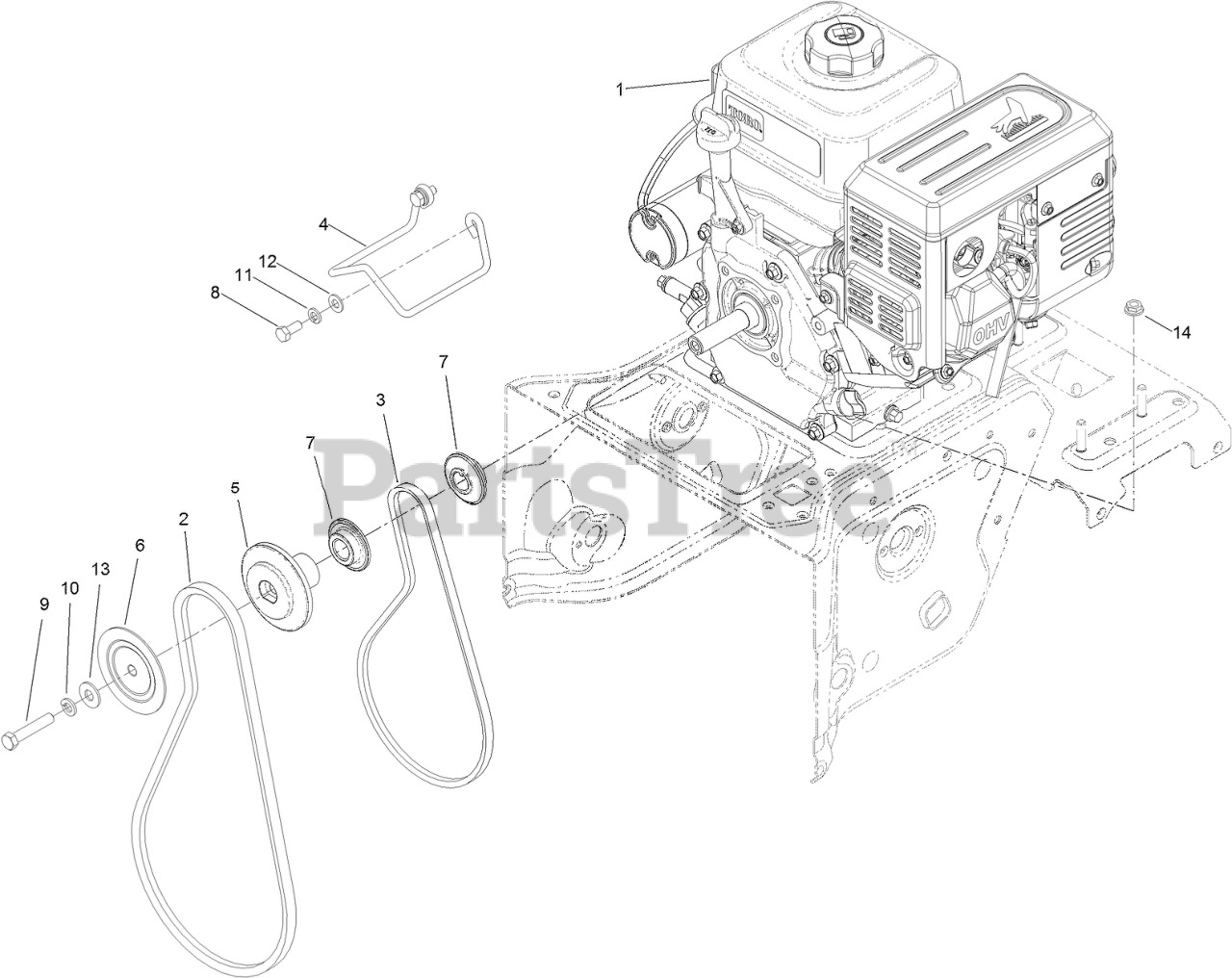

ENGINE, PULLEY AND BELT ASSEMBLY Parts Diagram

  • Title

1

Toro 127-9035

ENGINE-G210FDS-1

$775.99

$

Usually ships in 3-6 days

0

2

Toro 120-3892

BELT-V

$26.99

$

In Stock, only 4 left!

0

3

Toro 120-3893

BELT-V

$17.99

$

In Stock, only 1 left!

0

4

Toro 120-7196

GUIDE-BELT
(Superseded to 136-7156)

$14.99

$

Usually ships in 3-6 days

0

5

Toro 120-9283

PULLEY-AUGER, REAR

$38.99

$

Usually ships in 3-6 days

0

6

Toro 120-9284

PULLEY-AUGER, FRONT

$22.99

$

Usually ships in 3-6 days

0

7

Toro 121-6804

PULLEY-TRACTION

$18.99

$

Usually ships in 3-6 days

0

8

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

9

Toro 120-2302

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

10

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

11

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

14

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
