38811 (724 OE) - Toro 24" Power Max Snow Thrower (SN: 316000001 - 316999999) (2016) CHUTE ASSEMBLY Parts Diagram

24" Power Max Snow Thrower

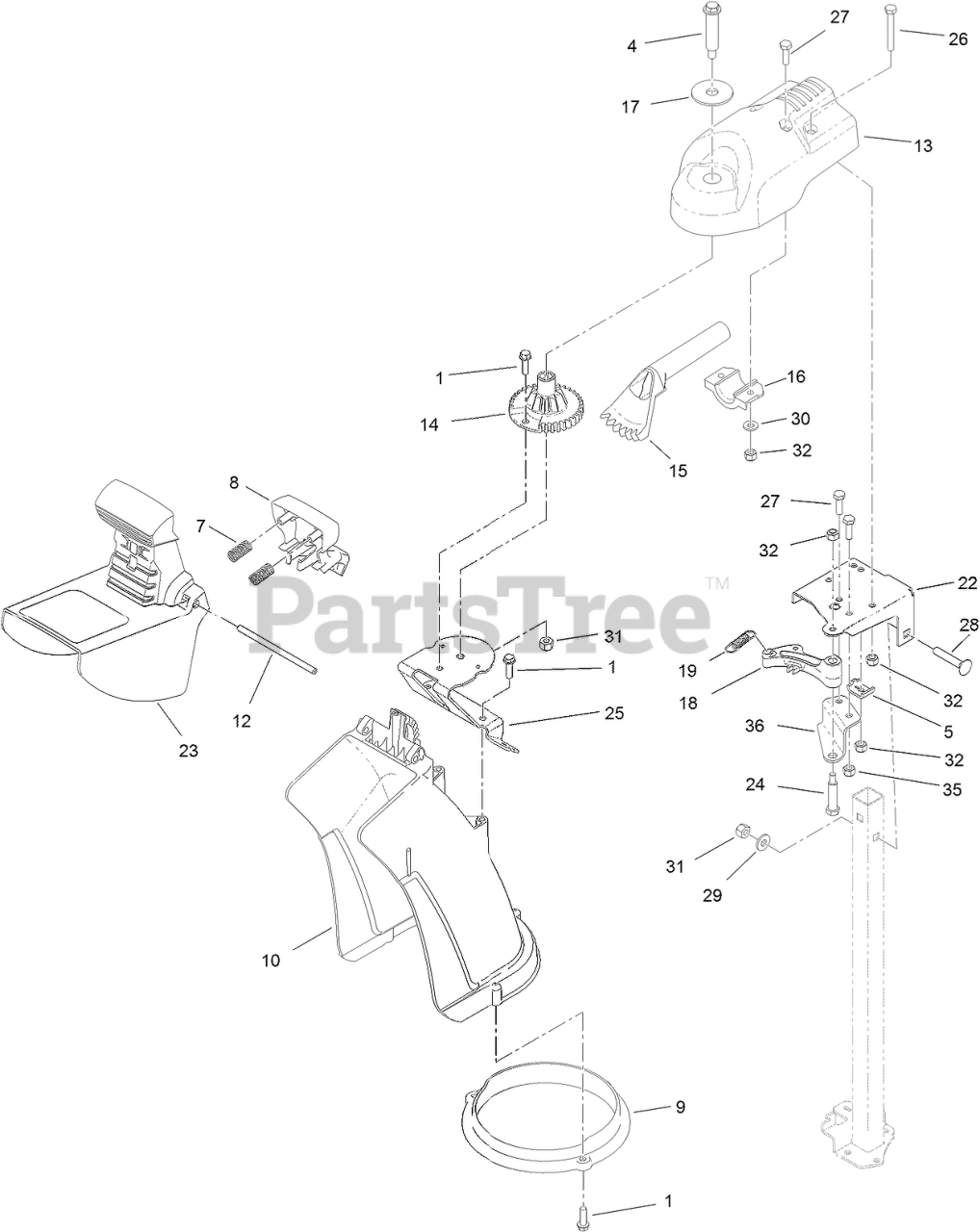

CHUTE ASSEMBLY Parts Diagram

  • Title
1

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

4

Toro 100-9880

BOLT-SHOULDER
(Superseded to 136-7199)

$5.49

$

Usually ships in 3-6 days

0

5

Toro 106-7297

CLAMP-CABLE
(Superseded to 136-7191)

$4.99

$

Usually ships in 3-6 days

0

7

Toro 110-9360

SPRING-COMPRESSION
(Superseded to 136-7136)

$1.49

$

In Stock, Qty 20+

0

8

Toro 117-2314

TRIGGER-DEFLECTOR

$14.99

$

In Stock, only 4 left!

0

9

Toro 119-7627

RING-CHUTE

$9.49

$

Usually ships in 3-6 days

0

10

Toro 119-7628

CHUTE-DISCHARGE
(Superseded to 133-5590)

$43.99

$

In Stock, Qty 5

0

12

Toro 99-5291

ROD-COVER
(Superseded to 136-8672)

$3.49

$

In Stock, Qty 14

0

13

Toro 120-3852

MOUNT-CHUTE, DISCHARGE

$31.99

$

Usually ships in 3-6 days

0

14

Toro 120-3853

GEAR-CHUTE

$9.49

$

Usually ships in 3-6 days

0

15

Toro 120-3854

GEAR-BEVEL

$10.99

$

Usually ships in 3-6 days

0

16

Toro 120-3855

MOUNT-GEAR, BEVEL

$2.49

$

Usually ships in 3-6 days

0

17

Toro 120-3856

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

18

Toro 120-3869

LATCH-CHUTE

$3.49

$

Usually ships in 3-6 days

0

19

Toro 120-7150

SPRING-LATCH, CHUTE

$3.99

$

Usually ships in 3-6 days

0

22

Toro 121-1207-03

BRACKET-SUPPORT, CHUTE

$9.49

$

Usually ships in 3-6 days

0

23

Toro 119-7629

DEFLECTOR-CHUTE

$27.99

$

Usually ships in 3-6 days

0

24

Toro 121-1229

BOLT-SHOULDER
(Superseded to 136-7195)

$1.99

$

Usually ships in 3-6 days

0

25

Toro 121-1237-03

BRACKET-MOUNT, CHUTE

$13.99

$

Usually ships in 3-6 days

0

26

Toro 321-11

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

27

Toro 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Toro 3230-5

SCREW-CARR

$0.99

$

Usually ships in 3-6 days

0

29

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

30

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

32

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

35

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

36

Toro 121-6843

BRACKET-SUPPORT, LATCH

$2.99

$

Usually ships in 3-6 days

0
