38806 (1028 OHXE) - Toro 28" Power Max Commercial Snow Thrower (SN: 400000000 - 999999999) HOUSING AND BYPASS ASSEMBLY Parts Diagram

28" Power Max Commercial Snow Thrower

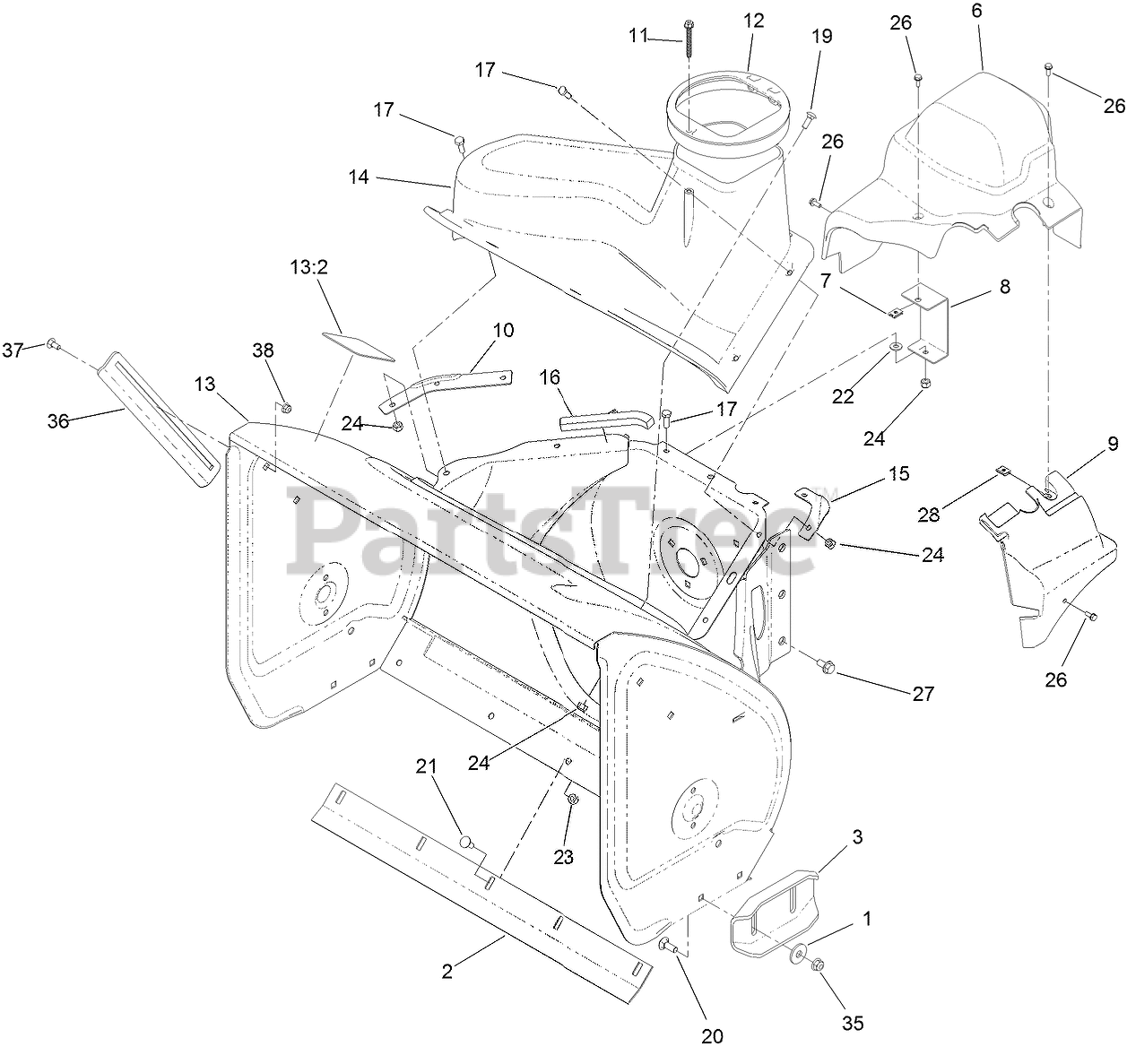

HOUSING AND BYPASS ASSEMBLY Parts Diagram

  • Title
1

Toro 52-2861

WASHER

$1.49

$

In Stock, Qty 5

0

2

Toro 106-4573-01

SCRAPER-FIXED

$107.99

$

In Stock, Qty 9

0

3

Toro 120-3098-03

SKID-CAST

$61.99

$

Usually ships in 3-6 days

0

6

Toro 119-1563

COVER-BELT

$22.99

$

In Stock, only 4 left!

0

7

Toro 107-1013

NUT-SPEED

$3.49

$

In Stock, only 2 left!

0

8

Toro 107-1014-03

BRACKET-COVER, CLIP NUT

$10.99

$

Usually ships in 3-6 days

0

9

Toro 107-1016

COVER-EXTENSION, BELT

$14.99

$

In Stock, only 2 left!

0

10

Toro 107-1017-03

SEAL-FLANGE, COVER

$4.99

$

Usually ships in 3-6 days

0

11

Toro 114-3751

SCREW-HWH, PLASTITE

$1.99

$

In Stock, Qty 20+

0

12

Toro 107-3006

GUIDE-CHUTE

$38.99

$

In Stock, only 1 left!

0

13

Toro 107-3824

HOUSING-AUGER, 28 INCH

$899.99

$

Usually ships in 3-6 days

0

13:2

Toro 107-3040

DECAL-DANGER, AUGER

$34.99

$

Usually ships in 3-6 days

0

14

$137.99

$

In Stock, Qty 6

0

$8.99

$

In Stock, only 4 left!

0

16

Toro 120-0124

SEAL-HOUSING

$3.99

$

Usually ships in 3-6 days

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

19

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

20

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 16

0

21

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

22

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

26

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

27

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

28

Toro 701493

NUT-SPEED

$6.99

$

In Stock, Qty 14

0

35

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

36

Toro 121-1228-03

BREAKER-DRIFT, SIDE

$65.99

$

Usually ships in 3-6 days

0

37

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

38

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
