38805 (826 OXE) - Toro 26" Power Max Heavy-Duty Snow Thrower (SN: 402082000 - 999999999) CONTROL ASSEMBLY Parts Diagram

26" Power Max Heavy-Duty Snow Thrower

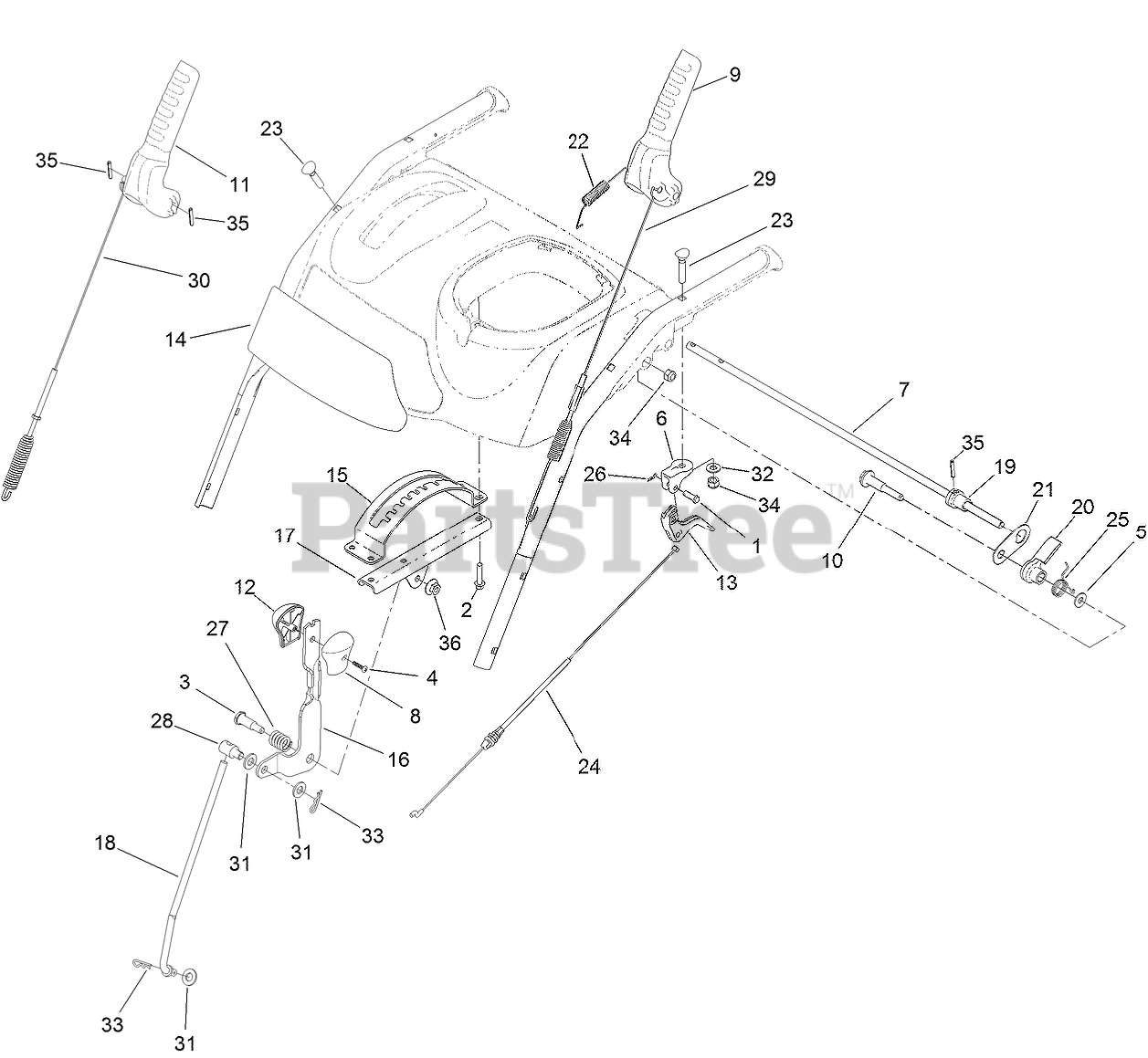

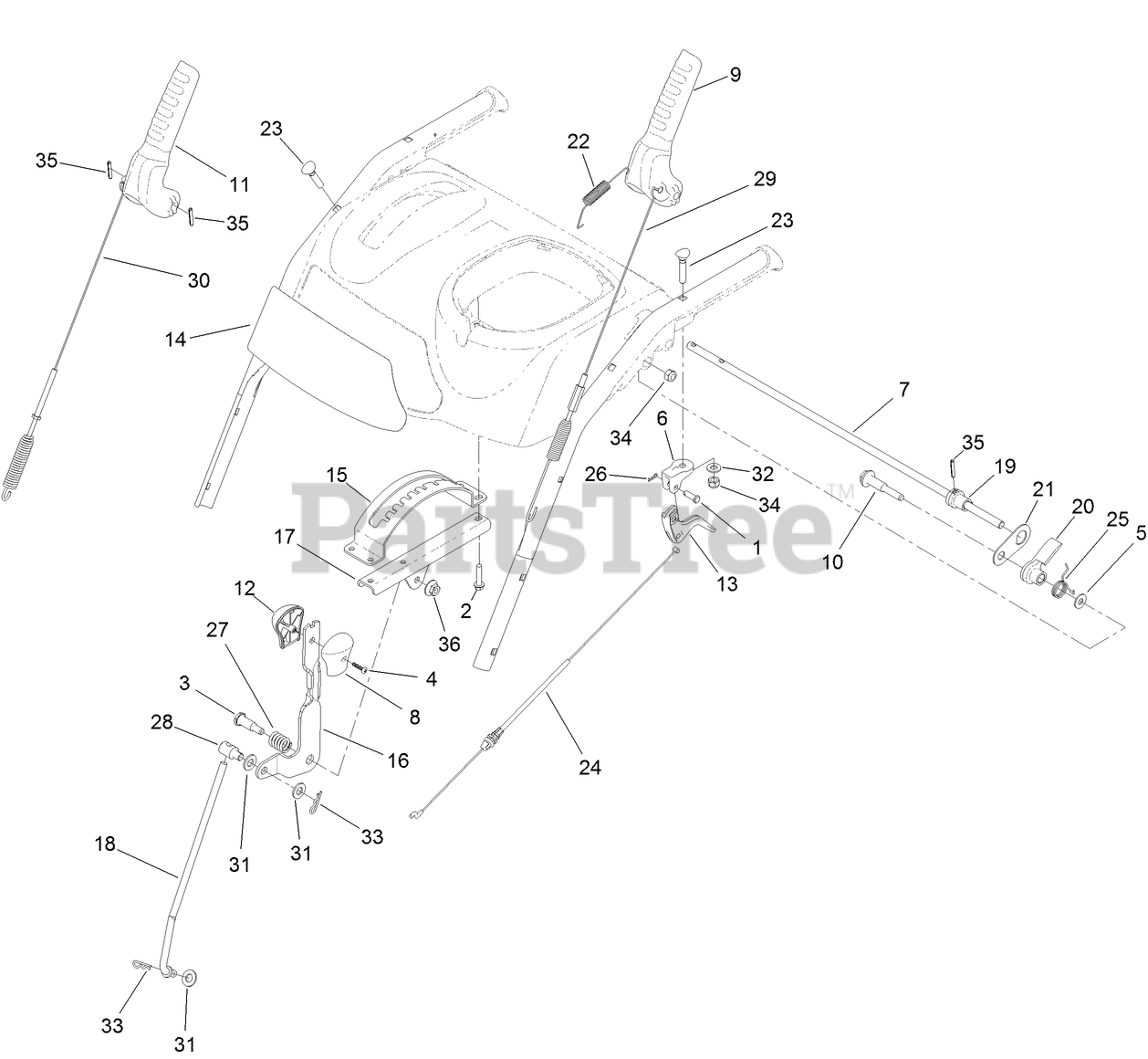

CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 1-808265

PIN-CLEVIS

$3.49

$

In Stock, only 4 left!

0

2

Toro 46-8092

SCREW-PLASTITE
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 6

0

3

Toro 63-2650

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

4

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

5

Toro 98-3499

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

6

Toro 105-9980

MOUNT-CLUTCH, LEVER

$8.49

$

In Stock, only 1 left!

0

7

Toro 136-7100

ROD-LOCKOUT

$27.99

$

Usually ships in 3-6 days

0

8

Toro 105-9999

KNOB-SHIFT, LH

$7.99

$

In Stock, only 4 left!

0

9

Toro 106-4410

LEVER-TRACTION

$26.99

$

Usually ships in 3-6 days

0

10

Toro 136-7196

SCREW-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

11

Toro 106-4413

LEVER-AUGER

$35.99

$

In Stock, only 1 left!

0

12

Toro 106-4423

KNOB-SHIFT, RH

$7.99

$

In Stock, only 4 left!

0

13

Toro 106-4505

LEVER-CLUTCH

$8.99

$

In Stock, Qty 7

0

14

Toro 130-9780

DECAL-CONTROL PANEL

$9.49

$

Usually ships in 3-6 days

0

15

Toro 106-7277-03

GUIDE-SELECTOR, SPEED

$7.99

$

Usually ships in 3-6 days

0

16

Toro 106-7278-03

SELECTOR-SPEED

$12.99

$

Usually ships in 3-6 days

0

17

Toro 130-9775-03

BRACKET-SELECTOR, SPEED

$10.99

$

Usually ships in 3-6 days

0

18

Toro 136-7109

ROD-SHIFT

$26.99

$

Usually ships in 3-6 days

0

19

Toro 107-1043

CAM-LOCKOUT

$25.99

$

Usually ships in 3-6 days

0

20

Toro 108-0023

LATCH-LOCKOUT

$19.99

$

Usually ships in 3-6 days

0

21

Toro 136-7314

LINK-LOCKOUT

$238.99

$

Usually ships in 3-6 days

0

22

Toro 136-7315

SPRING-TENSION

$6.49

$

In Stock, only 2 left!

0

23

Toro 107-3018

SCREW-HANDLE

$3.49

$

In Stock, only 3 left!

0

24

Toro 107-8896

CABLE-CLUTCH

$29.99

$

In Stock, only 2 left!

0

25

Toro 108-0024

SPRING-TORSION

$3.49

$

In Stock, only 1 left!

0

26

Toro 108-2992

PIN-HAIR

$1.49

$

In Stock, only 4 left!

0

27

Toro 136-7121

SPRING-COMPRESSION

$2.99

$

Usually ships in 3-6 days

0

28

Toro 136-7193

TRUNNION-ROD

$7.99

$

In Stock, Qty 10

0

29

Toro 120-0132

CABLE-TRACTION

$27.99

$

In Stock, Qty 20+

0

30

Toro 115-5680

CABLE-AUGER

$27.99

$

In Stock, Qty 17

0

31

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

32

Toro 3256-70

WASHER-FLAT

$1.49

$

In Stock, Qty 11

0

33

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

34

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

35

Toro 32121-125

PIN-SPRING

$0.99

$

In Stock, only 4 left!

0

36

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0
