38805 (826 OXE) - Toro 26" Power Max Heavy-Duty Snow Thrower (SN: 400000000 - 402081999) FUEL SYSTEM AND CARBURETOR ASSEMBLY Parts Diagram

26" Power Max Heavy-Duty Snow Thrower

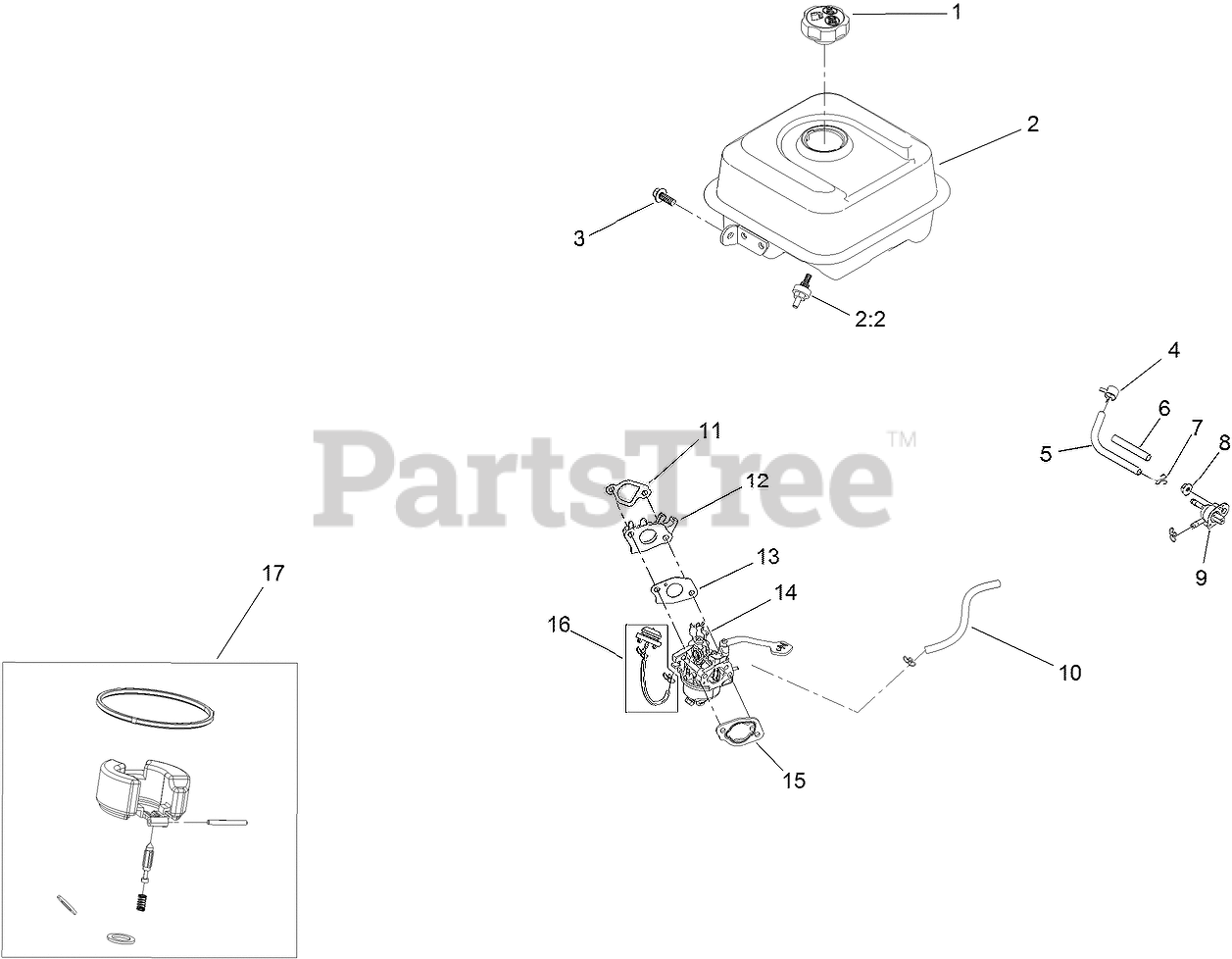

FUEL SYSTEM AND CARBURETOR ASSEMBLY Parts Diagram

  • Title

1

Toro 133-9823

CAP-FUEL

$20.99

$

In Stock, only 2 left!

0

2

Toro 133-1553

FUEL TANK AND FILTER ASM

$106.99

$

Usually ships in 3-6 days

0

2:2

Toro 127-9065

FILTER-FUEL

$6.49

$

In Stock, only 2 left!

0

3

Toro 121-0294

SCREW-HHF

$1.99

$

In Stock, Qty 8

0

4

Toro 127-9120

CLAMP-HOSE

$2.49

$

In Stock, Qty 5

0

5

Toro 133-1556

HOSE-FUEL

$14.99

$

Usually ships in 3-6 days

0

6

Toro 133-1538

SLEEVE-ABRASION

$2.99

$

Usually ships in 3-6 days

0

7

Toro 121-0087

CLAMP-HOSE

$1.49

$

In Stock, Qty 5

0

8

Toro 120-4236

NUT-FLANGE

$1.49

$

In Stock, Qty 17

0

9

Toro 127-9117

VALVE-FUEL

$19.99

$

In Stock, only 1 left!

0

10

Toro 127-9489

HOSE-FUEL

$8.99

$

In Stock, only 1 left!

0

11

Toro 133-1531

GASKET-CARBURETOR

$1.99

$

In Stock, Qty 13

0

12

Toro 133-1532

INSULATOR-CARBURETOR

$5.99

$

In Stock, only 2 left!

0

13

Toro 133-1533

GASKET-CARBURETOR

$1.99

$

In Stock, Qty 20+

0

14

Toro 133-1534

CARBURETOR ASM

$95.99

$

In Stock, only 3 left!

0

15

Toro 121-0080

GASKET-CARBURETOR

$5.99

$

In Stock, only 2 left!

0

16

Toro 127-9079

PRIMER KIT

$31.99

$

In Stock, only 2 left!

0

17

Toro 127-9395

INTERNAL CARB SERVICE KIT

$25.99

$

In Stock, only 4 left!

0

99

Toro 127-9302

HIGH ALTITUDE KIT - G250
(Superseded to 133-9937)

Note: Not illustrated

$14.99

$

Usually ships in 3-6 days

0
