38801 (928 OHXE) - Toro 28" Power Max Heavy-Duty Snow Thrower (SN: 400000000 - 402081999) NO. 1 ENGINE ASSEMBLY Parts Diagram

28" Power Max Heavy-Duty Snow Thrower

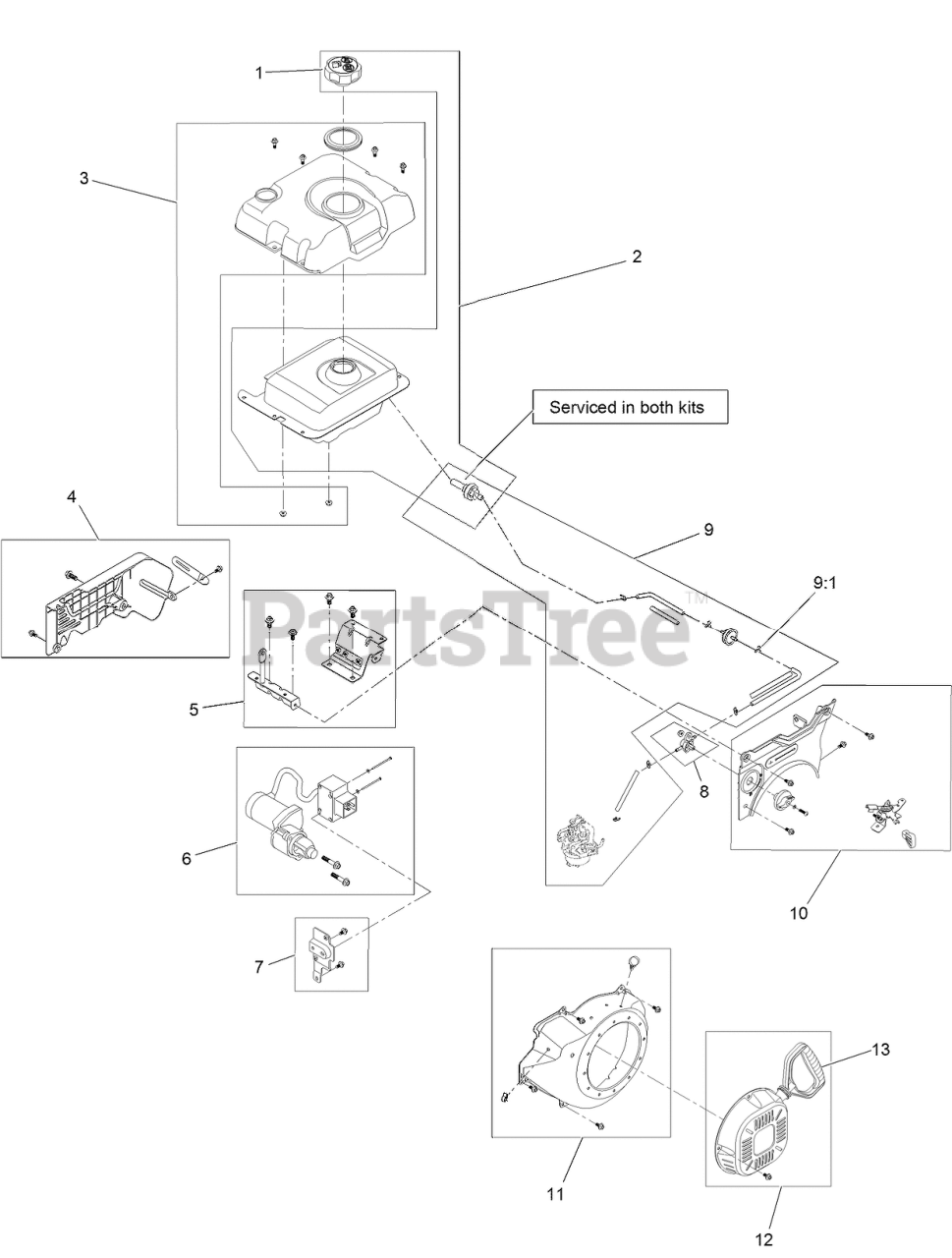

NO. 1 ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 133-9823

CAP-FUEL

$19.99

$

In Stock, Qty 13

0

2

Toro 121-0414

FUEL TANK AND CAP KIT
(Superseded to 136-7802)

$119.99

$

Usually ships in 3-6 days

0

3

Toro 121-0349

FUEL TANK COVER KIT

$71.99

$

Usually ships in 3-6 days

0

4

Toro 121-0347

REAR PANEL AND HARDWARE KIT

$71.99

$

Usually ships in 3-6 days

0

5

Toro 121-0351

TANK MOUNT BRACKET KIT

$37.99

$

Usually ships in 3-6 days

0

6

Toro 133-1592

STARTER KIT
(Superseded to 144-0995)

$371.99

$

Usually ships in 3-6 days

0

7

Toro 121-4103

SWITCH BOX BRACKET KIT

$21.99

$

Usually ships in 3-6 days

0

8

Toro 121-4109

FUEL SHUT-OFF VALVE KIT

$19.99

$

Usually ships in 3-6 days

0

9

Toro 121-0353

COMPLETE FUEL LINE KIT
(Superseded to 139-0598)

$31.99

$

In Stock, only 1 left!

0

9:1

Toro 121-0087

CLAMP-HOSE

$1.49

$

In Stock, only 3 left!

0

10

Toro 121-4105

FRONT PANEL KIT

$59.99

$

Usually ships in 3-6 days

0

11

Toro 121-0274

RECOIL SHROUD KIT

$93.99

$

Usually ships in 3-6 days

0

12

Toro 121-0342

RECOIL KIT

$95.99

$

In Stock, only 1 left!

0

13

Toro 121-0287

HANDLE-RECOIL

$13.99

$

In Stock, only 1 left!

0
