38800 (826 OXE) - Toro 26" Power Max Heavy-Duty Snow Thrower (SN: 315000001 - 315999999) (2015) GEAR CASE ASSEMBLY NO. 125-7925 Parts Diagram

26" Power Max Heavy-Duty Snow Thrower

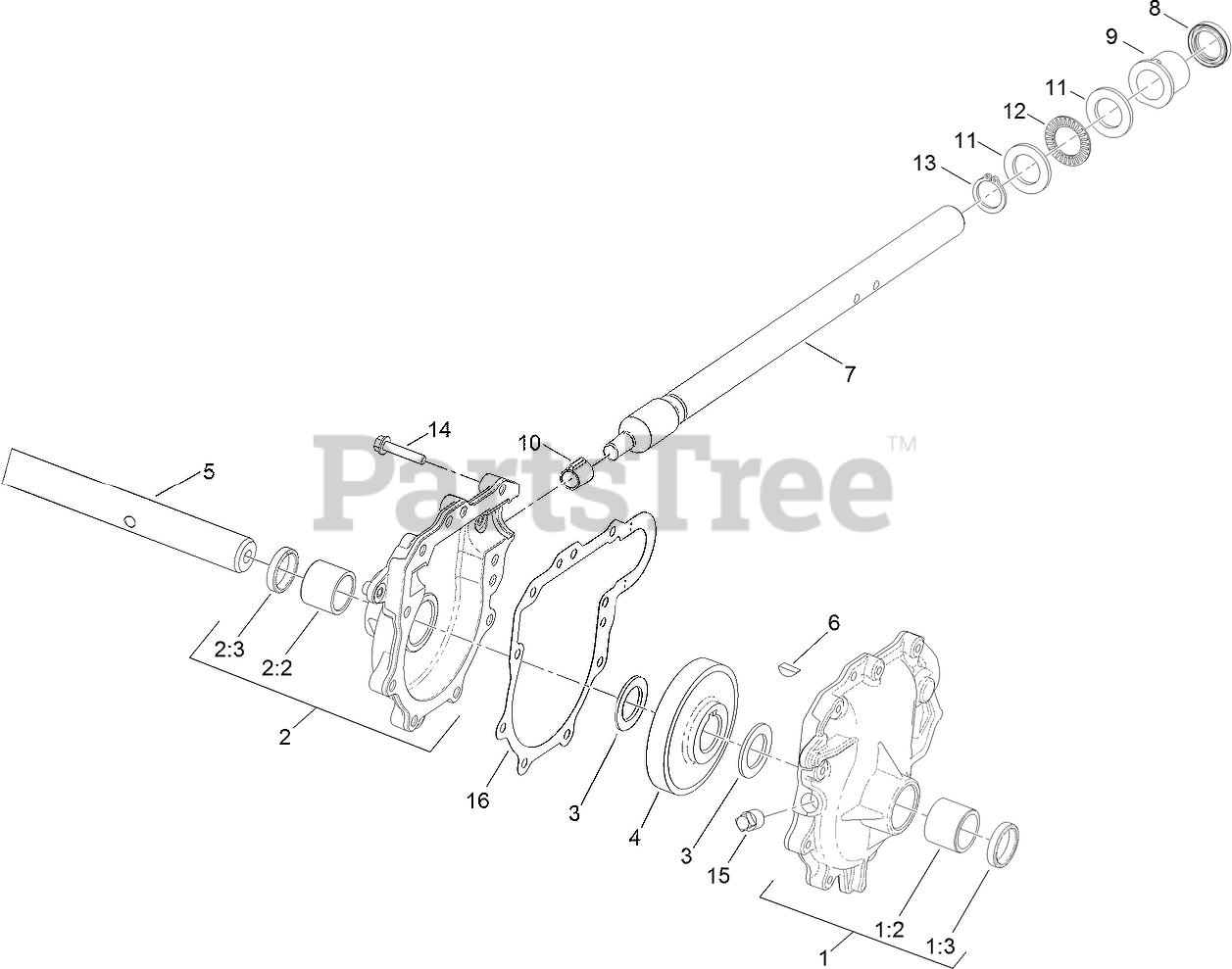

GEAR CASE ASSEMBLY NO. 125-7925 Parts Diagram

  • Title

1

Toro 108-7325

LH AUGER GEARCASE ASM

$163.99

$

Usually ships in 3-6 days

0

1:2

Toro 112-6635

BUSHING-SLEEVE

$6.99

$

Usually ships in 3-6 days

0

1:3

Toro 7-0045

SEAL-OIL

$17.99

$

In Stock, Qty 6

0

2

Toro 108-7327

RH AUGER GEARCASE ASM

$163.99

$

Usually ships in 3-6 days

0

2:2

Toro 112-6635

BUSHING-SLEEVE

$6.99

$

Usually ships in 3-6 days

0

2:3

Toro 7-0045

SEAL-OIL

$17.99

$

In Stock, Qty 6

0

3

Toro 252-71

WASHER-THRUST

$19.99

$

In Stock, only 2 left!

0

4

Toro 62-0120

GEAR-HELICAL
(Superseded to 138-0696)

$68.99

$

Usually ships in 3-6 days

0

5

Toro 106-4579

SHAFT-AUGER

$95.99

$

Usually ships in 3-6 days

0

6

Toro 3257-10

KEY-WOODRUFF

$6.49

$

Usually ships in 3-6 days

0

7

Toro 66-7811

SHAFT-IMPELLER

$266.99

$

Usually ships in 3-6 days

0

8

Toro 253-149

SEAL-OIL

$12.99

$

Usually ships in 3-6 days

0

9

Toro 37-6560

BUSHING-INPUT

$43.99

$

In Stock, only 1 left!

0

10

Toro 62-1150

BUSHING-WORM

$7.99

$

In Stock, only 2 left!

0

11

Toro 252-78

WASHER-THRUST

$26.99

$

In Stock, only 2 left!

0

12

Toro 252-76

BEARING-THRUST

$21.99

$

Usually ships in 3-6 days

0

13

Toro 32151-33

RING-RETAINING, Ext

$3.49

$

In Stock, only 1 left!

0

14

Toro 108-4862

SCREW-HWHTF

$3.49

$

In Stock, only 2 left!

0

15

Toro 121-6832

PLUG-PIPE, SQH

$1.49

$

Usually ships in 3-6 days

0

16

Toro 108-7330

GASKET-GEARCASE, AUGER

$30.99

$

Usually ships in 3-6 days

0
